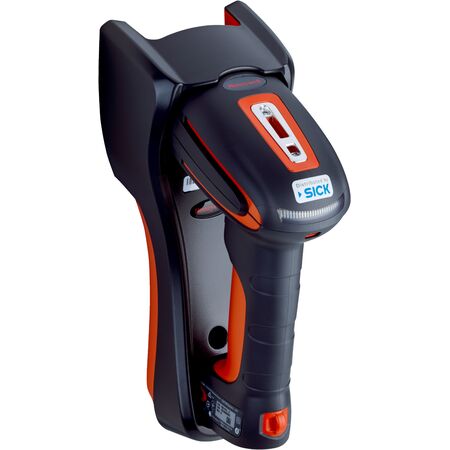

Wireless Industrial Barcode Scanner | 1280 px Resolution | IP51 & IP65 Rated | by SICK
The Wireless Industrial Barcode Scanner is designed for high-performance data capture in industrial settings, featuring a 1280 px x 800 px sensor resolution and a reading distance of 150 mm to 16,000 mm. With its durable IP51 and IP65 enclosure ratings, this scanner is perfect for harsh environments, ensuring reliable operation and minimal downtime. Ideal for warehouses and manufacturing facilities, it supports various barcode types and offers a rechargeable battery for extended use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 800 px
- Light source: LED, Visible, Red, 624 nm ± 18 nm
- Alignment aid: Laser, Red, 650 nm
- Reading distance: 150 mm to 16,000 mm
- Code resolution: ≥ 0.05 mm (1D), ≥ 2 mm (2D)
- Supply voltage: 3.7 V DC
- Current consumption: Charging (5 V DC) 1 A, Standby 120 mA
- Housing material: Plastic (UL 94 V-0)
- Enclosure rating: IP51, IP65
- Weight: 420 g including rechargeable battery
- Readable code structures: 1D, 2D, Stacked
- Supported barcode types: Code 39, Code 128, GS1-128, UPC/EAN, MSI/Plessey, IATA, Interleaved 2 of 5, Data Matrix, QR code, Aztec, MaxiCode, PDF417, and more
- Battery power: Minimum 7,200 scans (1 scan every 4 seconds over 8 hours)
- Code buffer: 5,000 codes for batch mode, 100,000 codes for out of range scanning
- Interfaces: USB with keyboard wedge and COM-Port emulation
- Indicators: 2 LEDs, beeper (switchable), vibration feedback
- Configuration software: EZConfig Tool
- Shock resistance: 50 drops from 2 m at -30 °C
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Bar code print contrast (PCS): ≥ 40%
- Dimensions (H x L x W): 195mm x 133mm x 75mm
- Weight: 0.42 kg
Key Features
- Wireless variant with full range focus
- High sensor resolution of 1280 px x 800 px
- Visible red LED light source at 624 nm ± 18 nm
- Laser alignment aid at 650 nm
- Reading distance from 150 mm to 16,000 mm
- Omni-directional code alignment
- Supports 1D, 2D, and stacked barcode types
- Battery supports minimum 7,200 scans over 8 hours
- Code buffer for batch and out of range scanning
- Shock resistant with 50 drop tests from 2 m at -30 °C
- Operating temperature range from -20 °C to +50 °C
- IP51 and IP65 enclosure rating for dust and water resistance
Professional Installation Requirements
- Professional setup recommended to integrate with existing industrial systems and ensure optimal wireless connectivity and configuration.
Applications
- Industrial application for barcode scanning and data capture
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Rechargeable battery reduces disposable battery waste
- Durable design minimizes replacement frequency
- Energy-efficient operation extends battery life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK HW1981IFR-3USB-5 KIT is available for immediate purchase, ideal for industrial barcode scanning applications requiring wireless and high-resolution capabilities.
