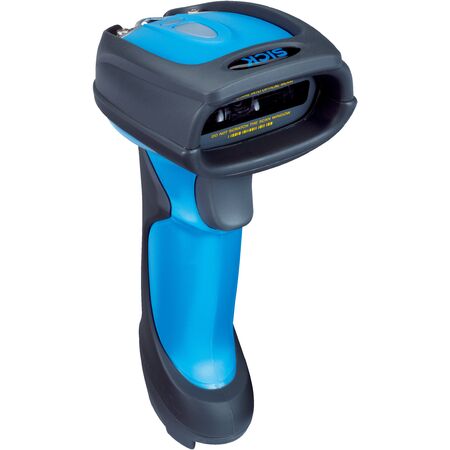

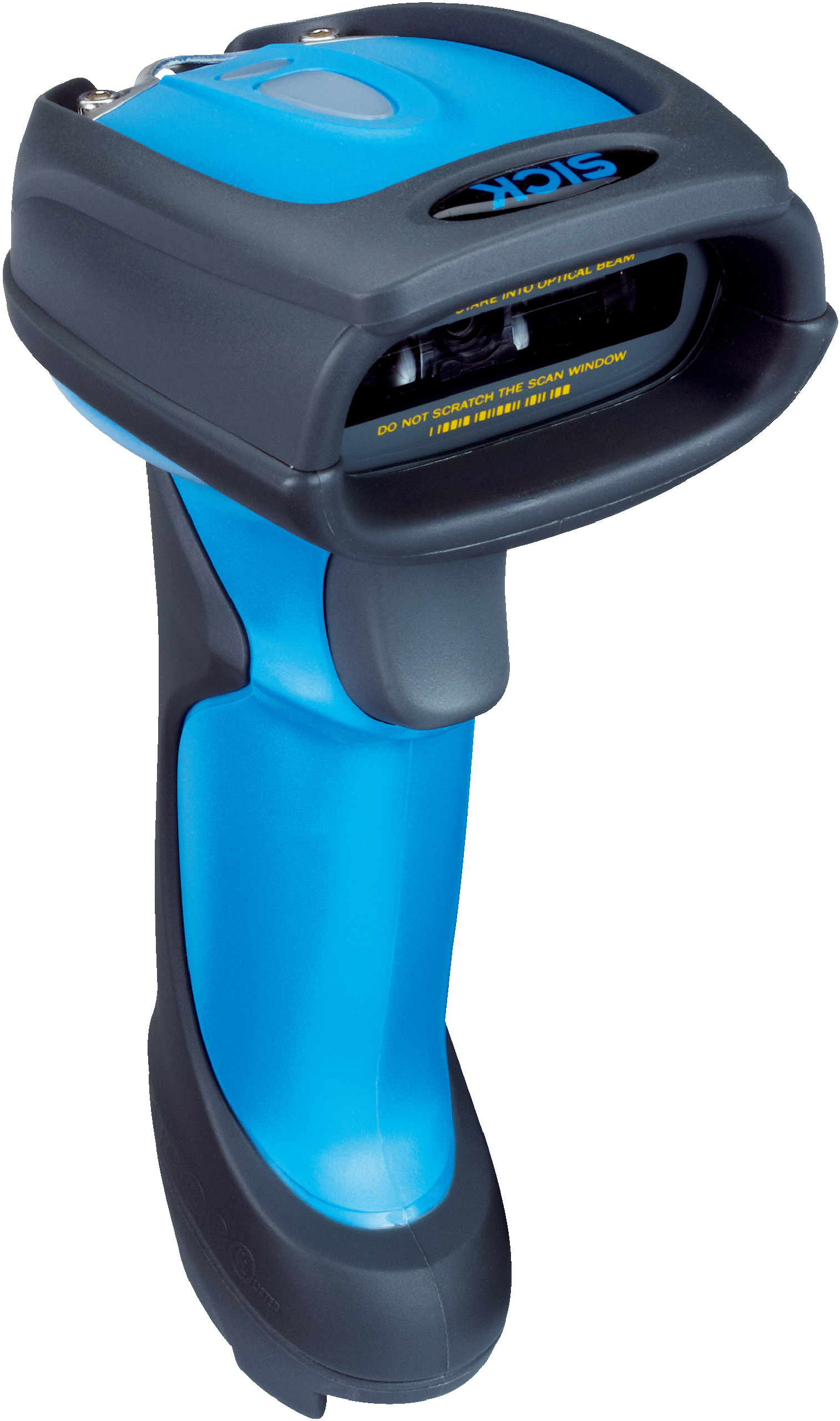

Wireless Industrial Barcode Scanner | Bluetooth V4.0 | IP65 Rated | 500 Hz Scanning Frequency | by SICK
The Wireless Industrial Barcode Scanner is designed for seamless barcode reading in industrial applications, featuring Bluetooth V4.0 for a 100 m operating range and an impressive scanning frequency of up to 500 Hz. With an IP65 rated housing, it ensures durability in harsh environments, making it perfect for warehousing and manufacturing needs. Enjoy over 60,000 scans per full charge, enhancing productivity and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: LED, Visible, Red, 630 nm
- Reading distance: 20 mm to 850 mm
- Scanning frequency: ≤ 500 Hz
- Code resolution: ≥ 0.076 mm
- Supply voltage: 3.7 V DC
- Current consumption: Operation 180 mA, Standby 80 mA
- Enclosure rating: IP65
- Weight: 220 g including rechargeable battery
- Readable code structures: 1D codes, Stacked
- Battery power: Over 60,000 scans per full charge
- Code buffer: 80,000 Codes (EAN)
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT, PROFIBUS DP, Serial RS-232 TTL, USB, Bluetooth
- Shock resistance: 50 drops from 2 m height on concrete
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: up to 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 176mm x 104mm x 76mm
- Weight: 0.22 kg
Key Features
- Wireless variant with Bluetooth TM V4.0 and up to 100 m operating range
- Reads 1D and stacked barcodes including Code 39, GS1-128, PDF417, MicroPDF417
- High scanning frequency up to 500 Hz with code resolution ≥ 0.076 mm
- IP65 rated housing for dust and water resistance
- Battery supports over 60,000 scans per full charge
- Multiple interface options including Ethernet, PROFINET, EtherCAT, PROFIBUS DP, Serial RS-232 TTL, and USB
- Shock resistant to 50 drops from 2 m height on concrete
- Optical, acoustic, and vibration indicators for status feedback
Professional Installation Requirements
- Professional installation recommended to integrate with existing industrial networks and ensure proper configuration using IDM Setup Tool.
Applications
- Industrial applications requiring wireless barcode scanning
- Warehousing and logistics for 1D and stacked barcode reading
- Manufacturing environments needing robust scanning solutions
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Wireless operation reduces cable waste and installation impact
- Long battery life minimizes frequent battery replacements
- Durable IP65 housing extends product lifespan reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IDM161-411S Wireless Industrial Barcode Scanner is available for immediate purchase, ideal for industrial and manufacturing environments requiring reliable wireless barcode scanning.
