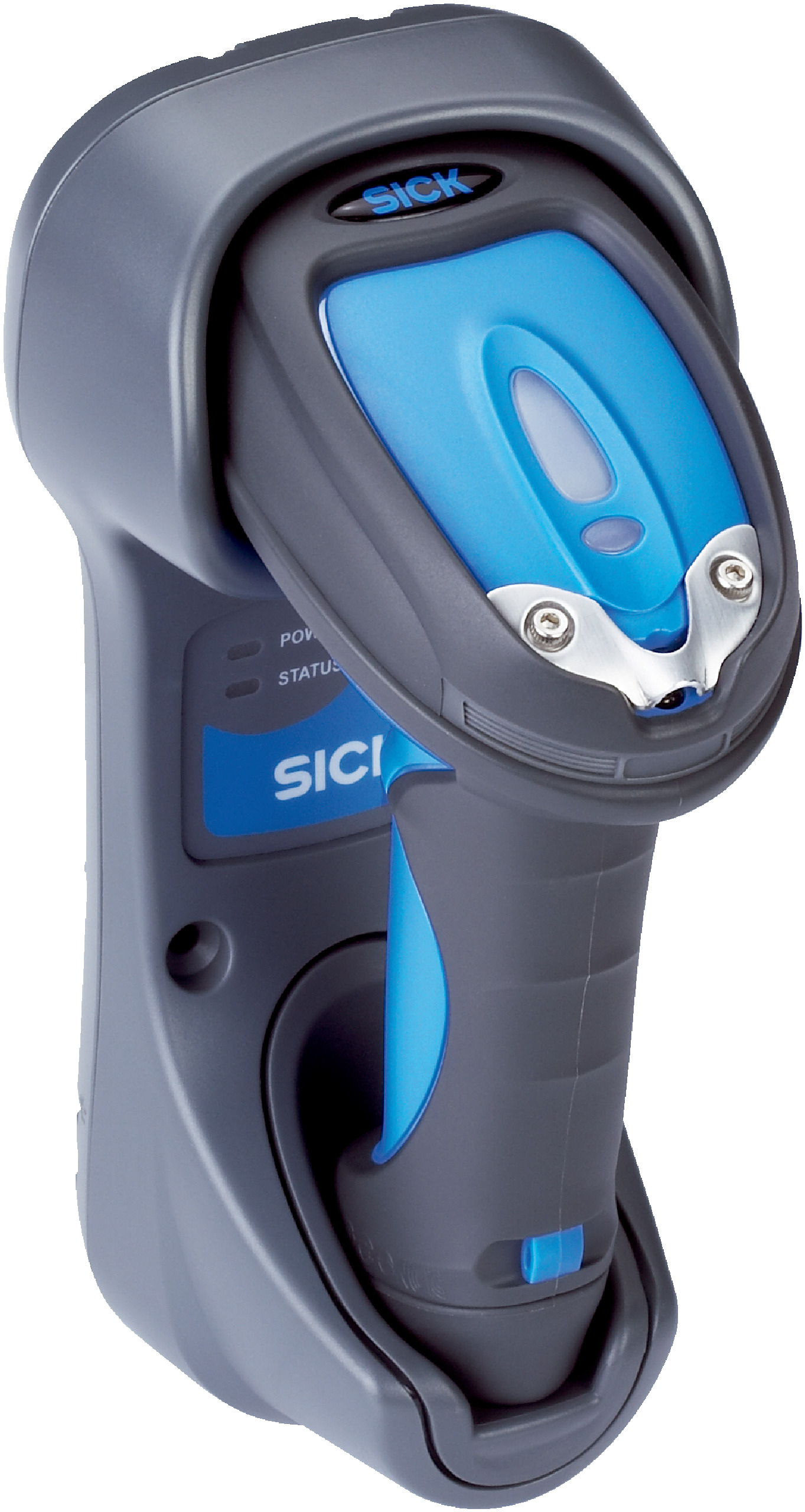

Wireless Industrial Barcode Scanner | Bluetooth Connectivity | IP65 Rated | 500 Hz Scanning | by SICK
The Wireless Industrial Barcode Scanner is designed for seamless barcode scanning in industrial applications, featuring Bluetooth connectivity and an IP65 rated enclosure for dust and water resistance. With a scanning frequency of up to 500 Hz and the ability to read a wide range of 1D and stacked barcodes, this scanner is perfect for warehouse and logistics environments, ensuring fast and reliable code reading.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 3.7 V DC
- Current consumption: 180 mA during operation, 80 mA standby
- Enclosure rating: IP65
- Weight: 220 g including rechargeable battery
- Readable code structures: 1D codes and stacked codes
- Supported barcodes: Code 39, Code 128, GS1-128, Codabar, UPC/EAN, PDF417, MicroPDF417, Composite Code, and more
- Code buffer capacity: 80,000 codes (EAN)
- Scanning frequency: ≤ 500 Hz
- Ambient operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 50 drops from 2 m height on concrete
- Optical indicators: 2 LEDs for good read, battery charge, and radio status
- Acoustic indicators: Beeper with mute option
- Vibration feedback: Yes
- Configuration software: IDM Setup Tool
- Dimensions (H x L x W): 176mm x 104mm x 76mm
- Weight: 0.22 kg
Key Features
- Wireless variant with Bluetooth connectivity
- Visible red LED light source at 630 nm
- Reading distance from 20 mm to 850 mm
- Scanning frequency up to 500 Hz
- High code resolution of ≥ 0.076 mm
- Supports a wide range of 1D and stacked barcodes
- Battery supports over 60,000 scans per full charge
- IP65 rated enclosure for dust and water resistance
- Shock resistant to 50 drops from 2 m height
- Optical, acoustic, and vibration indicators for feedback
Professional Installation Requirements
- No professional installation required; plug-and-play USB connection with optional configuration via IDM Setup Tool.
Applications
- Industrial applications requiring wireless barcode scanning
- Warehouse and logistics for fast and reliable code reading
- Manufacturing environments needing robust scanning solutions
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Rechargeable battery reduces disposable battery waste
- Energy-efficient operation extends battery life and reduces power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK IDM161-411S USB Kit is available for immediate purchase, ideal for industrial and warehouse barcode scanning applications.
