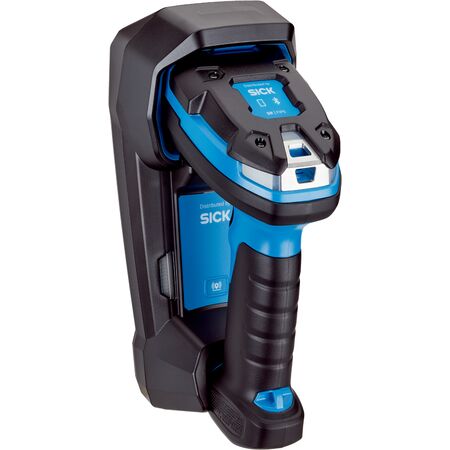

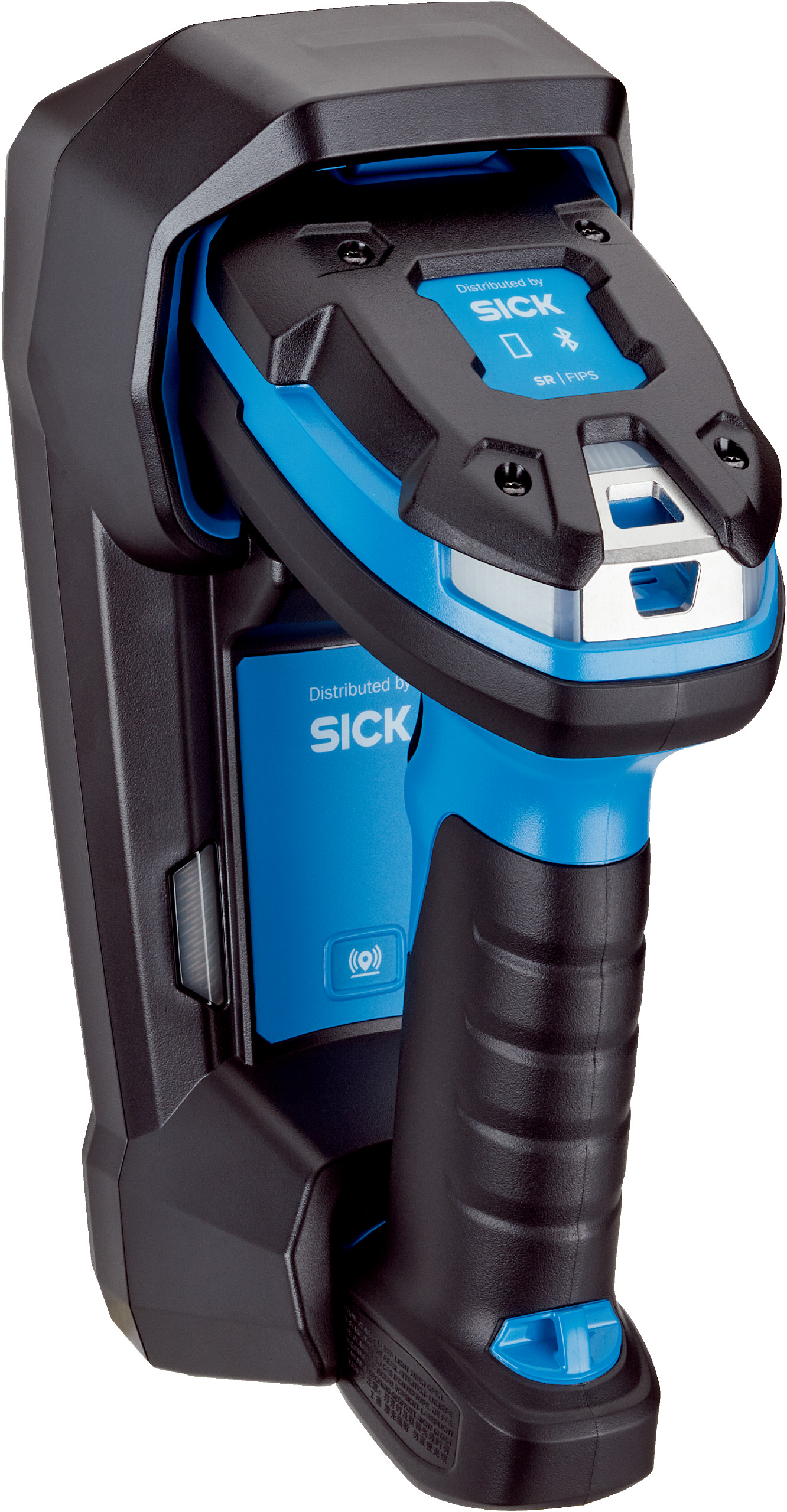

Wireless Industrial Barcode Scanner | Bluetooth V4.0 | IP65 & IP68 Rated | 100m Range | by SICK
The Wireless Industrial Barcode Scanner is designed for efficient data capture in industrial environments, featuring Bluetooth V4.0 connectivity and a robust IP65/IP68 enclosure. With a reading distance of up to 1,067 mm and a high code resolution of ≥ 0.102 mm, it’s perfect for scanning 1D barcodes in demanding applications. The rechargeable battery supports over 100,000 scans per charge, making it a reliable choice for continuous use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: LED visible red 617 nm and laser visible red 655 nm
- Reading distance: 0 mm to 1,067 mm
- Code resolution: ≥ 0.102 mm
- Supply voltage: 5 V DC ±10% via host, 12 V DC ±5% external supply
- Enclosure rating: IP65 and IP68
- Weight: 402 g including rechargeable battery
- Readable code structures: 1D codes
- Battery power: 3,100 mAh, over 100,000 scans per full charge
- Code buffer: 9,000 codes (EAN) for batch scanning
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT, PROFIBUS DP, Serial RS-232 TTL, USB, Bluetooth V4.0
- Wireless operating range: up to 100 m (free view)
- Indicators: 3 LEDs, beeper, vibration
- Shock resistance: multiple falls from 3 m onto concrete
- Operating temperature: -20°C to +50°C
- Storage temperature: -40°C to +70°C
- Relative humidity: 95%, non-condensing
- Ambient light immunity: 108,000 lx
- Dimensions (H x L x W): 185mm x 132mm x 77mm
- Weight: 0.4 kg
Key Features
- Wireless variant with Bluetooth V4.0 and up to 100 m operating range
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and various postal codes
- High code resolution of ≥ 0.102 mm
- Battery capacity of 3,100 mAh enabling over 100,000 scans per full charge
- Robust design with IP65 and IP68 enclosure rating
- Shock resistant to multiple drops from 3 m onto concrete
- Multiple interface options including Ethernet, PROFINET, EtherCAT, PROFIBUS DP, Serial RS-232 TTL, and USB
- Optical, acoustic, and vibration indicators for operational status
- Configuration software: Z-Up Tool
Professional Installation Requirements
- Installation and configuration by trained personnel recommended to ensure optimal wireless setup and integration with host systems.
Applications
- Industrial application for barcode scanning and data capture
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Rechargeable battery reduces disposable battery waste
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ZI3678-SR0F263VZK wireless industrial barcode scanner is available for immediate purchase, ideal for industrial barcode scanning applications requiring robust wireless performance.
