Trade Discount 20%

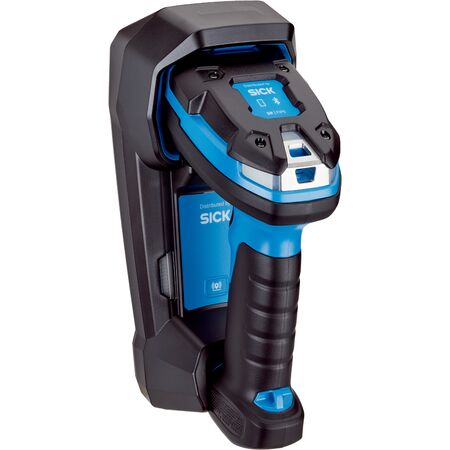

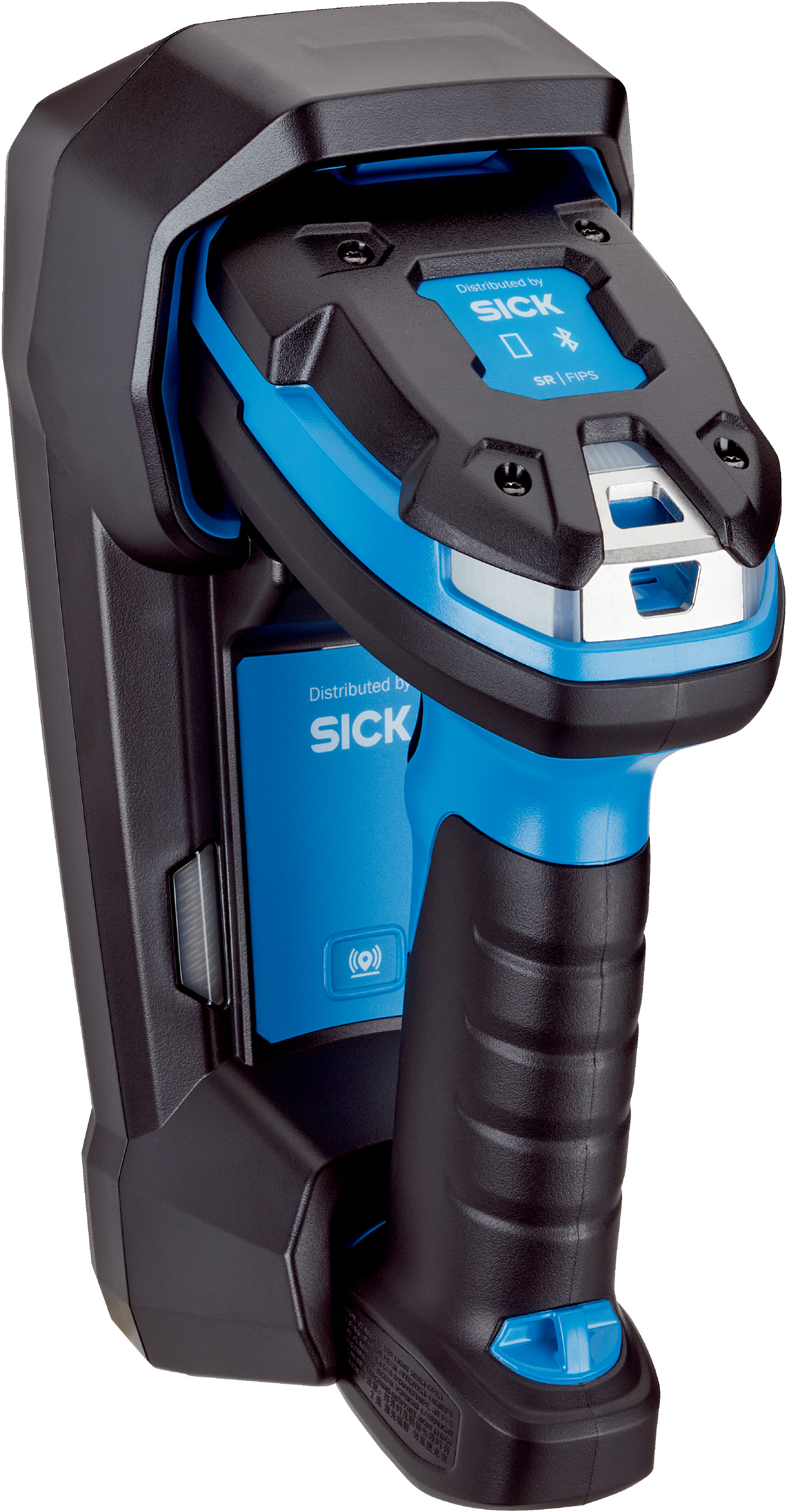

Wireless Industrial Barcode Scanner | Bluetooth V4.0 | IP65 & IP68 Rated | 30 mm to 1,520 mm Reading Distance | by SICK
The Wireless Industrial Barcode Scanner is designed for robust data capture in industrial applications, featuring Bluetooth V4.0 for a 100 m operating range and an impressive reading distance of 30 mm to 1,520 mm. With a high code resolution and IP65/IP68 enclosure ratings, this scanner is built to withstand harsh environments, making it ideal for manufacturing and logistics operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: LED visible red 660 nm, laser visible red 610 nm
- Reading distance: 30 mm to 1,520 mm
- Code resolution: ≥ 0.13 mm (1D), ≥ 0.19 mm (2D)
- Supply voltage: 5 V DC ±10% via host, 12 V DC ±5% external supply
- Enclosure rating: IP65 and IP68
- Weight: 407 g including rechargeable battery
- Battery power: 3,100 mAh, over 100,000 scans per full charge
- Code buffer: 9,000 codes (EAN) for batch scanning
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT®, PROFIBUS DP, Serial RS-232 TTL, USB, Bluetooth V4.0
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: Multiple drops from 3 m onto concrete
- Ambient light immunity: 108,000 lx
- Optical indicators: 3 LEDs for operational status, good read, radio connection
- Acoustic indicators: Beeper (switchable)
- Vibration feedback: Yes
- Dimensions (H x L x W): 185mm x 132mm x 77mm
- Weight: 0.407 kg
Key Features
- Wireless variant with Bluetooth V4.0 and up to 100 m operating range
- Reads 1D, 2D, stacked, and Digimarc® codes omni-directionally
- High code resolution ≥ 0.13 mm and reading distance from 30 mm to 1,520 mm
- Robust housing with IP65 and IP68 enclosure rating
- Battery capacity of 3,100 mAh enabling over 100,000 scans per full charge
- Multiple interface options including Ethernet, PROFINET, EtherCAT®, PROFIBUS DP, Serial RS-232 TTL, and USB
- Shock resistant to multiple drops from 3 m onto concrete
- Optical, acoustic, and vibration indicators for operational status
- Configuration software: Z-Up Tool
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with industrial systems and compliance with electrical standards.
Applications
- Industrial application for barcode scanning and data capture
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Rechargeable battery reduces waste from disposable batteries
- Wireless operation reduces cable clutter and associated material use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK ZS3678-SR2F263VZWW wireless industrial barcode scanner is available for immediate purchase, ideal for industrial environments requiring robust and versatile barcode scanning solutions.
