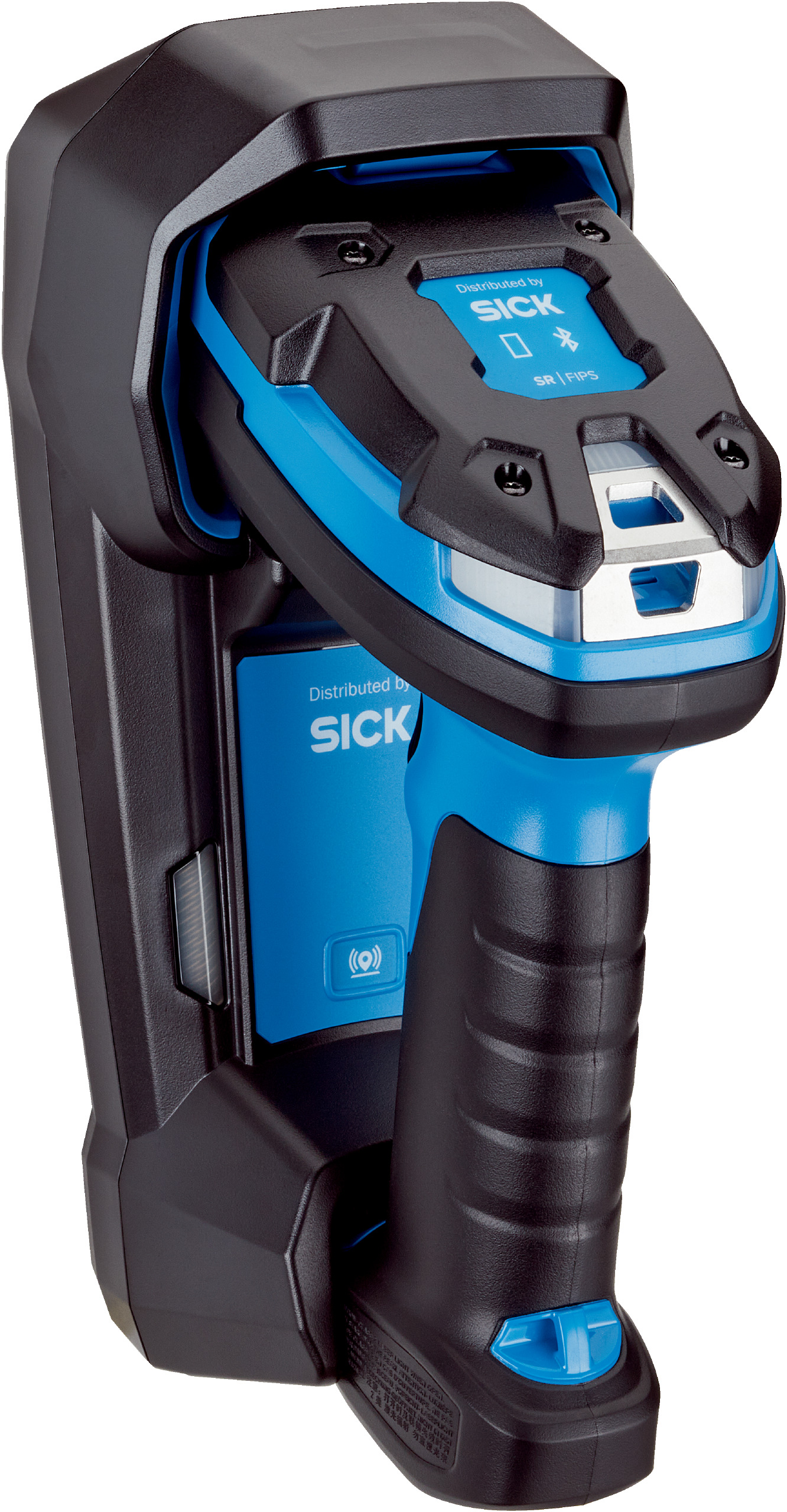

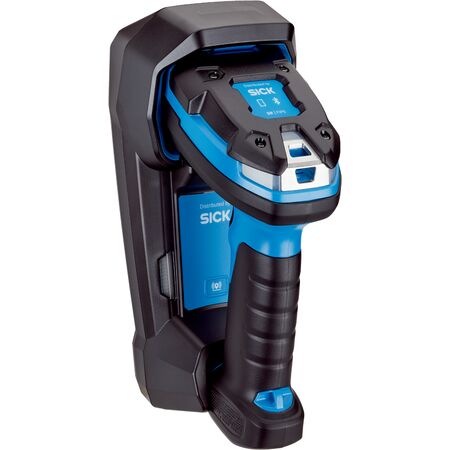

Wireless Industrial Barcode Scanner | Bluetooth V4.0 | IP65 & IP68 Rated | 30 mm to 1,520 mm Reading Distance | by SICK
The Wireless Industrial Barcode Scanner is designed for seamless barcode scanning in industrial environments. With Bluetooth V4.0 connectivity and a robust IP65/IP68 rated housing, it excels in harsh conditions. Capable of reading 1D, 2D, and stacked codes from 30 mm to 1,520 mm, this scanner is perfect for warehousing and logistics applications, ensuring efficient data collection and batch scanning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: LED visible red 660 nm and laser visible red 610 nm
- Reading distance: 30 mm to 1,520 mm
- Code resolution: ≥ 0.13 mm and ≥ 0.19 mm
- Supply voltage: 5 V DC ±10% via host, 12 V DC ±5% external supply
- Enclosure rating: IP65 and IP68
- Weight: 407 g including rechargeable battery
- Readable code structures: 1D, 2D, stacked, Digimarc®
- Battery power: 3,100 mAh, over 100,000 scans per full charge
- Code buffer: 9,000 codes (EAN) for batch scanning
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT®, PROFIBUS DP, Serial RS-232 TTL, USB, Bluetooth V4.0
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: Multiple 3 m drops onto concrete
- Ambient light immunity: 108,000 lx
- Dimensions (H x L x W): 185mm x 132mm x 77mm
- Weight: 0.41 kg
Key Features
- Wireless variant with Bluetooth V4.0 and up to 100 m operating range
- Reads 1D, 2D, stacked, and Digimarc® codes omni-directionally
- High code resolution ≥ 0.13 mm and reading distance from 30 mm to 1,520 mm
- Robust IP65 and IP68 rated housing for harsh environments
- Battery capacity of 3,100 mAh enabling over 100,000 scans per charge
- Multiple interfaces including Ethernet, PROFINET, EtherCAT®, PROFIBUS DP, Serial RS-232 TTL, and USB
- Shock resistant to multiple 3 m drops onto concrete
- Optical, acoustic, and vibration indicators for operational status
Professional Installation Requirements
- Professional installation recommended to integrate with existing industrial networks and ensure optimal wireless performance.
Applications
- Industrial applications requiring wireless barcode scanning
- Warehousing and logistics for 1D and 2D code reading
- Batch scanning and mobile data collection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Rechargeable battery reduces disposable battery waste
- Durable IP65/IP68 housing extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK ZS3678-SR2F263VZK wireless industrial barcode scanner is available for immediate purchase, ideal for industrial and logistics applications requiring robust and flexible scanning solutions.
