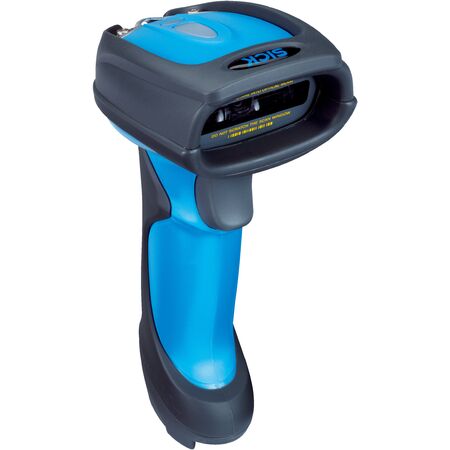

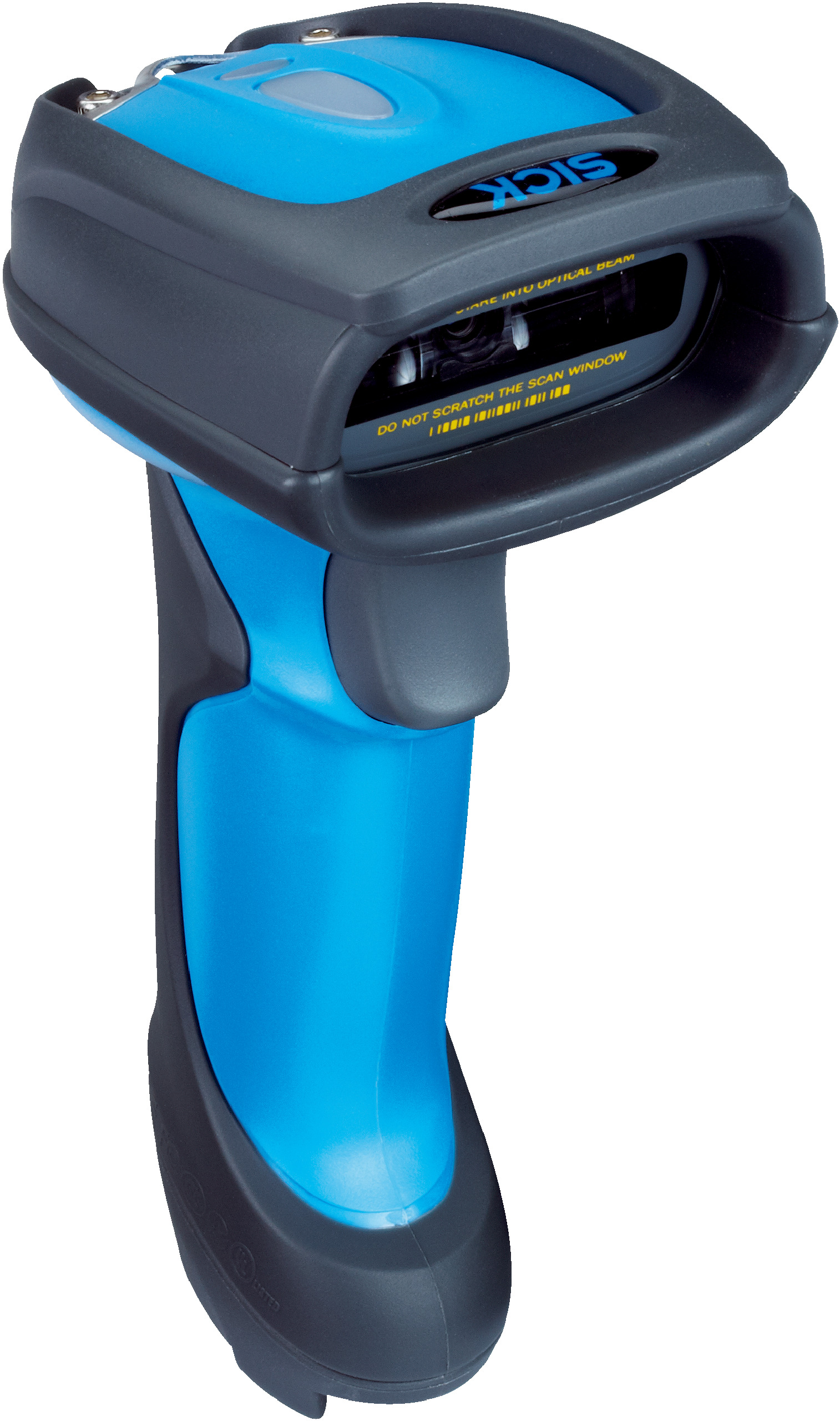

Wireless Industrial Barcode Scanner | UltraCap™ Batteryless Design | IP65 Rated | 100m Wireless Range | by SICK
The Wireless Industrial Barcode Scanner is designed for seamless scanning in industrial applications, featuring a batteryless UltraCap™ design and an impressive wireless range of up to 100 meters. With a scanning frequency of up to 500 Hz and IP65 rating for dust and water resistance, this scanner is perfect for manufacturing and logistics environments, ensuring durability and efficiency without the hassle of battery replacements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: LED, Visible, Red, 630 nm
- Reading distance: 20 mm to 850 mm
- Scanning frequency: ≤ 500 Hz
- Code resolution: ≥ 0.076 mm
- Supply voltage: 3.7 V DC
- Current consumption: Operation 180 mA, Standby 80 mA
- Enclosure rating: IP65
- Weight: 208 g including UltraCap™ rechargeable battery
- Readable code structures: 1D codes, Stacked
- Supported barcode types: Code 39, Code 128, GS1-128, Codabar, UPC/EAN/JAN, and many more
- Battery power: Over 4,200 scans when fully charged
- Code buffer: 80,000 codes (EAN)
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT®, Serial (RS-232 TTL), PROFIBUS DP, USB, Bluetooth V4.0
- Wireless operating range: Up to 100 m (free view)
- Shock resistance: 50 drops from 2 m height on concrete
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: ± 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 176mm x 104mm x 76mm
- Weight: 0.208 kg
Key Features
- Cable-free design with UltraCap™ supercapacitor for batteryless voltage supply
- Long service life reducing operating costs and electronic waste
- Wireless variant with scanning frequency up to 500 Hz
- Reads 1D and stacked barcodes including a wide range of code types
- Wireless operating range up to 100 m with Bluetooth V4.0
- IP65 rated enclosure for dust and water resistance
- Shock resistant to 50 drops from 2 m height on concrete
- Optical, acoustic, and vibration indicators for user feedback
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with industrial systems and compliance with safety standards.
Applications
- Industrial applications requiring wireless barcode scanning
- Mobile handheld scanning in manufacturing and logistics
- Environments needing durable, batteryless voltage supply devices
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- UltraCap™ supercapacitor reduces electronic waste compared to battery-operated devices
- Non-hazardous for shipping, minimizing environmental impact during transport
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IDM161E-411S wireless industrial barcode scanner is available for immediate purchase, ideal for industrial and manufacturing environments requiring reliable, batteryless scanning solutions.
