Wireless Industrial Barcode Scanner | UltraCap™ Batteryless Design | IP65 Rated | 1280 px x 800 px Resolution | by SICK
The Wireless Industrial Barcode Scanner is designed for seamless barcode scanning in industrial applications, featuring a high sensor resolution of 1280 px x 800 px and a cable-free UltraCap™ supercapacitor for batteryless operation. With an IP65 rating for dust and water resistance, this scanner is perfect for mobile handheld scanning in manufacturing and logistics environments, ensuring durability and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 800 px
- Light source: Red LED, 660 nm
- Alignment aid: Red laser, 630 nm, Laser class 1 (EN/IEC 60825-1:2014)
- Reading distance: 30 mm to 400 mm
- Code resolution: ≥ 0.07 mm (1D), ≥ 0.13 mm (2D)
- Supply voltage: 5 V DC ± 5%
- Current consumption: 750 mA (operation), 175 mA (standby)
- Enclosure rating: IP65
- Weight: 208 g including UltraCap™ rechargeable battery
- MTBF: 100,000 hours
- Readable codes: 1D, 2D, stacked codes including Code 39, QR, Data Matrix, PDF417, and more
- Battery power: Over 4,200 scans per full charge
- Code buffer: 5,000 codes for batch mode, 100,000 codes for out of range scanning
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT®, PROFIBUS DP, Serial (RS-232), USB, Bluetooth V4.0
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 95% non-condensing
- Shock resistance: 50 drops from 2 m height on concrete
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 176mm x 104mm x 76mm
- Weight: 0.208 kg
Key Features
- Cable-free design with UltraCap™ supercapacitor for batteryless voltage supply
- Long service life reducing operating costs and electronic waste
- Wireless variant with Bluetooth V4.0 and up to 100 m operating range
- High sensor resolution of 1280 px x 800 px
- Reads 1D, 2D, and stacked barcode types
- IP65 rated enclosure for dust and water resistance
- Shock resistant to 50 drops from 2 m height on concrete
- Optical, acoustic, and vibration indicators for status feedback
- Code buffer supports up to 100,000 codes for out of range scanning
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and integration with industrial systems.
Applications
- Industrial applications requiring wireless barcode scanning
- Mobile handheld scanning in manufacturing and logistics
- Environments needing durable, batteryless voltage supply scanners
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Batteryless UltraCap™ supercapacitor reduces hazardous waste and environmental impact
- Long service life lowers replacement frequency and electronic waste
- Non-hazardous goods classification simplifies shipping and handling
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

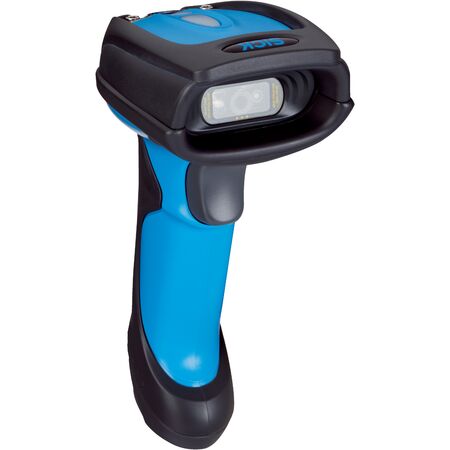

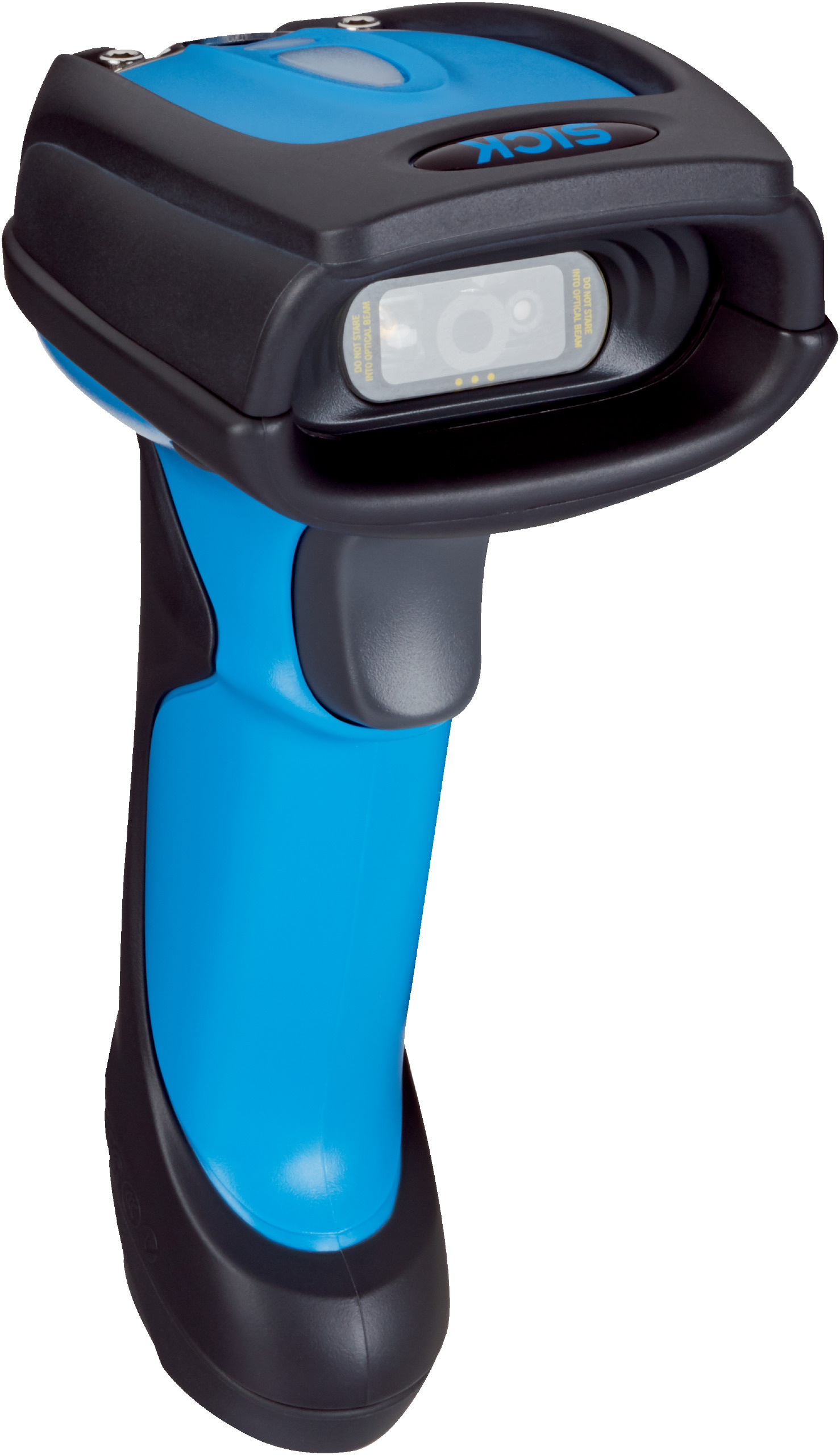

The SICK IDM261E-411S USB Set is available for immediate purchase, ideal for industrial wireless scanning applications requiring durable and batteryless operation.
