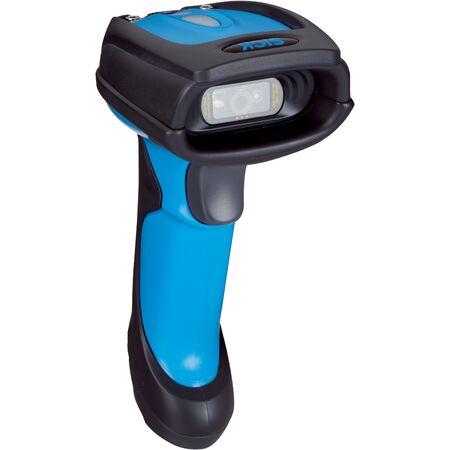

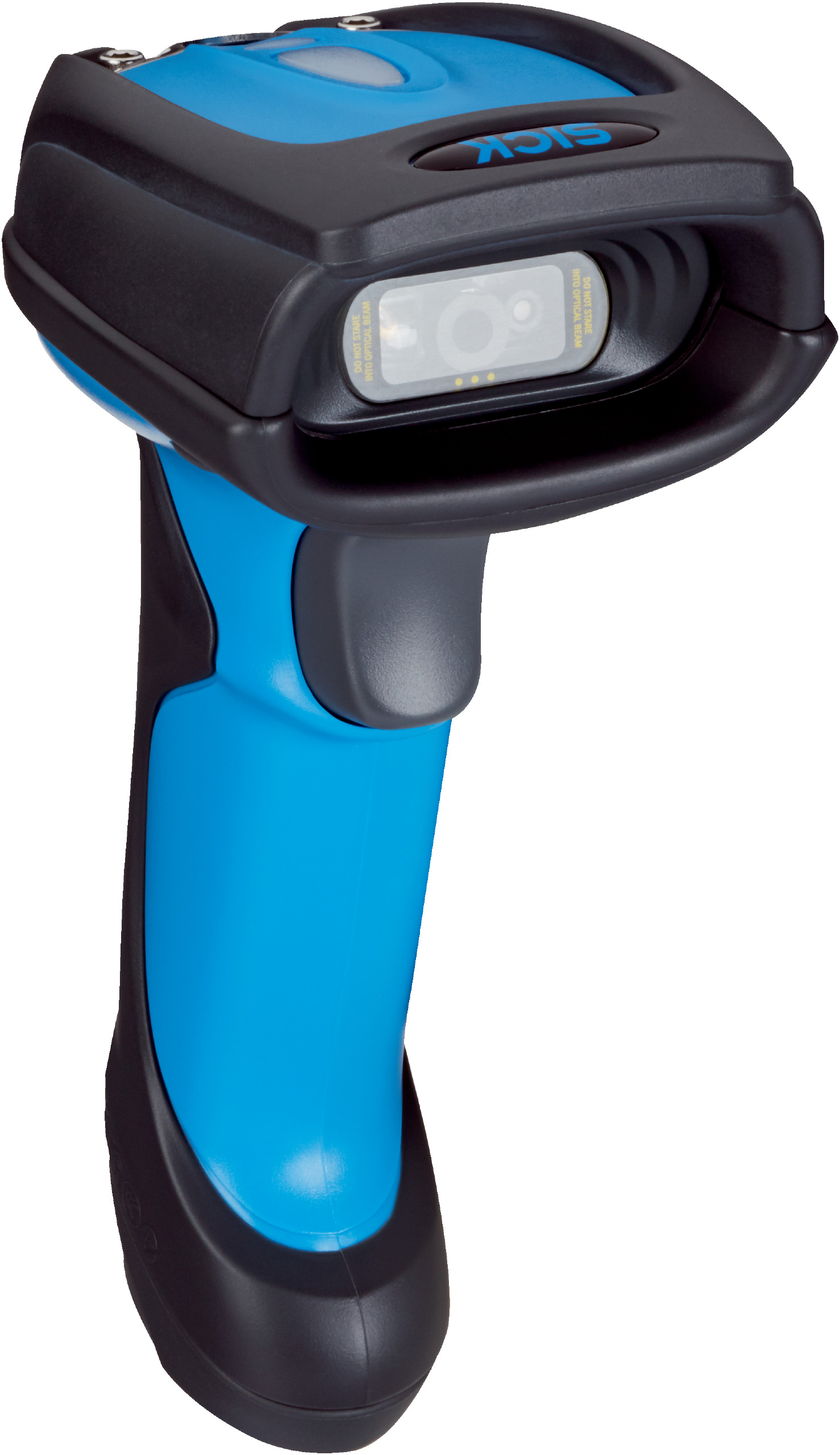

Wireless Industrial Barcode Scanner | UltraCap™ Batteryless Design | IP65 Rated | 1280 px x 800 px Resolution | by SICK
The Wireless Industrial Barcode Scanner is designed for seamless mobile scanning in industrial applications, featuring a batteryless UltraCap™ design and high sensor resolution of 1280 px x 800 px. With an IP65 rating for dust and water resistance, this scanner is perfect for manufacturing and logistics environments, ensuring durability and reliability without the hassle of battery replacements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 800 px
- Light source: Red LED, 660 nm
- Alignment aid: Red laser, 630 nm, Laser class 1 (EN/IEC 60825-1:2014)
- Reading distance: 30 mm to 400 mm
- Code resolution: ≥ 0.07 mm (1D), ≥ 0.13 mm (2D)
- Supply voltage: 5 V DC ± 5%
- Current consumption: 750 mA during operation, 175 mA standby
- Enclosure rating: IP65
- Weight: 208 g including UltraCap™ rechargeable battery
- MTBF: 100,000 hours
- Readable codes: 1D, 2D, stacked codes including Code 39, QR code, Data Matrix, PDF417, and more
- Battery power: Over 4,200 scans per full charge
- Code buffer: 5,000 codes for batch mode, 100,000 codes for out-of-range scanning
- Interfaces: Ethernet, PROFINET, EtherCAT, PROFIBUS DP, Serial RS-232, USB, Bluetooth V4.0
- Shock resistance: 50 drops from 2 m height on concrete
- Operating temperature: -20°C to +50°C
- Storage temperature: -40°C to +70°C
- Relative humidity: 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 176mm x 104mm x 76mm
- Weight: 0.208 kg
Key Features
- Cable-free design with UltraCap™ supercapacitor for batteryless voltage supply
- Long service life reduces operating costs and electronic waste
- Wireless variant with Bluetooth V4.0 and up to 100 m operating range
- High sensor resolution of 1280 px x 800 px with LED and laser alignment aid
- IP65 rated enclosure for dust and water resistance
- Supports a wide range of 1D, 2D, and stacked barcode types
- Shock resistant to 50 drops from 2 m height on concrete
- Includes rechargeable UltraCap™ battery with over 4,200 scans per full charge
- Multiple interface options including Ethernet, PROFINET, EtherCAT, PROFIBUS DP, Serial RS-232, USB
Professional Installation Requirements
- Professional installation recommended for integration with industrial networks and to ensure compliance with electrical standards.
Applications
- Industrial applications requiring wireless barcode scanning
- Mobile handheld scanning in manufacturing and logistics
- Environments needing durable, batteryless voltage supply devices
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Batteryless operation reduces hazardous waste and environmental impact
- Long service life lowers electronic waste generation
- Non-hazardous goods classification facilitates safer shipping and handling
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK IDM261E-411S wireless industrial handheld scanner is available for immediate purchase, ideal for industrial and manufacturing environments requiring reliable, batteryless barcode scanning.
