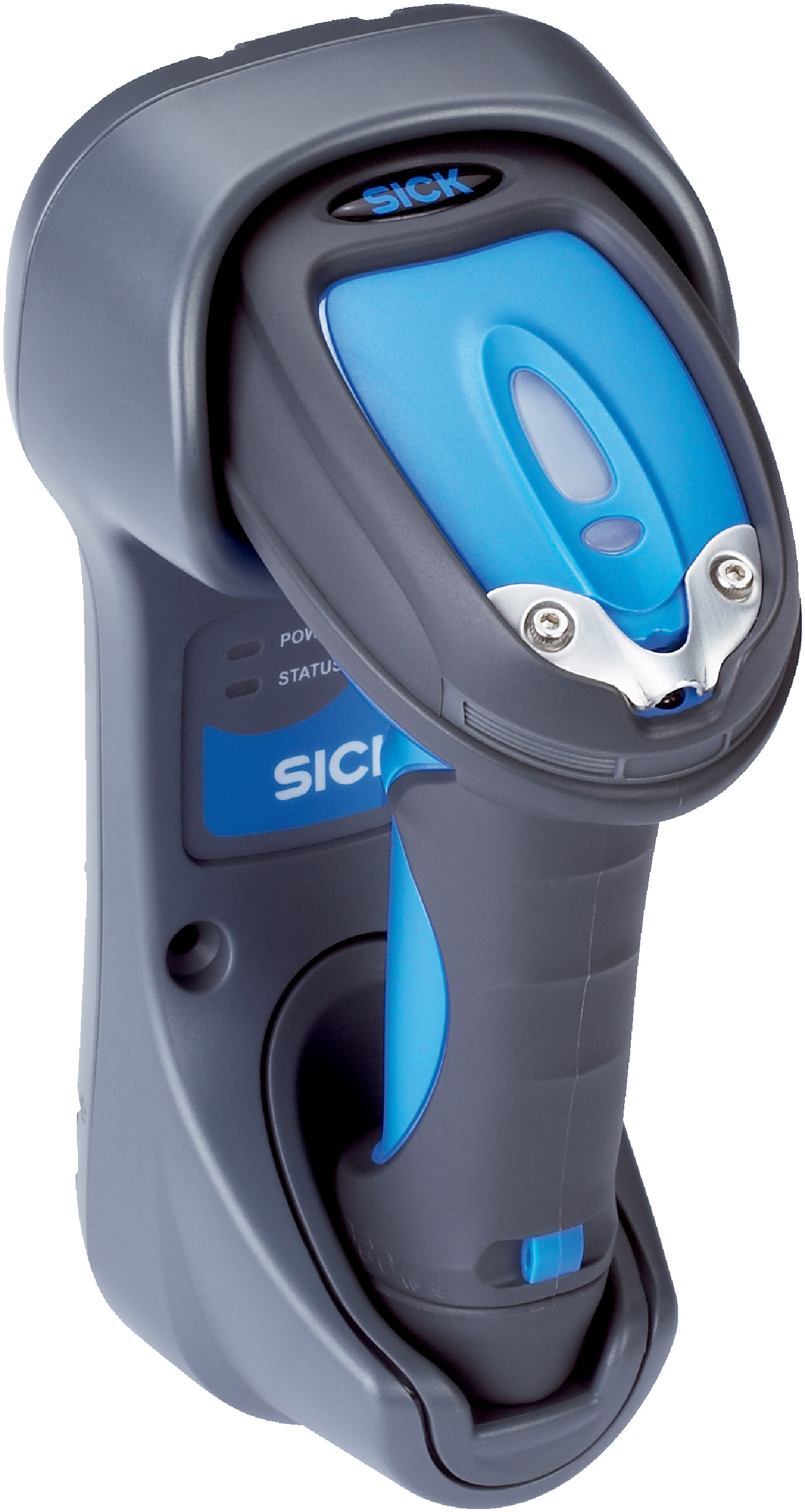

Wireless Industrial Barcode Scanner | UltraCap Supercapacitor | IP65 Rated | 500 Hz Scanning | by SICK
The Wireless Industrial Barcode Scanner is designed for seamless barcode scanning in industrial environments. Featuring an UltraCap supercapacitor for batteryless operation and an impressive reading distance of 20 mm to 850 mm, this scanner is perfect for mobile handheld applications in manufacturing and logistics. With a robust IP65 rating and shock resistance, it ensures durability and reliability in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Visible red LED, 630 nm
- Reading distance: 20 mm to 850 mm
- Scanning frequency: up to 500 Hz
- Code resolution: ≥ 0.076 mm
- Readable code structures: 1D codes and stacked codes including PDF417 and MicroPDF417
- Supply voltage: 3.7 V DC
- Current consumption: 180 mA operation, 80 mA standby
- Enclosure rating: IP65
- Weight: 220 g including rechargeable battery
- Shock resistance: 50 drops from 2 m height on concrete
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: up to 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Interfaces: USB, Ethernet (TCP/IP), PROFINET, EtherCAT, PROFIBUS DP, Serial RS-232 TTL, Bluetooth V4.0
- Code buffer: 80,000 codes (EAN)
- Battery power: Over 60,000 scans per full charge
- Dimensions (H x L x W): 176mm x 104mm x 76mm
- Weight: 0.22 kg
Key Features
- Cable-free design with UltraCap™ supercapacitor for batteryless voltage supply
- Long service life reducing operating costs and electronic waste
- Wireless variant with Bluetooth V4.0 and up to 100 m operating range
- Reads 1D and stacked barcodes including various postal and industrial codes
- High scanning frequency up to 500 Hz and reading distance from 20 mm to 850 mm
- IP65 rated housing for robust industrial use
- Shock resistant to 50 drops from 2 m height on concrete
- Optical, acoustic, and vibration indicators for user feedback
- Supports multiple interfaces including USB, Ethernet, PROFINET, EtherCAT, PROFIBUS DP, and serial RS-232 TTL
Professional Installation Requirements
- Professional setup recommended including base station, connecting cable, and power supply unit for commissioning.
Applications
- Industrial applications requiring wireless barcode scanning
- Mobile handheld scanning in manufacturing and logistics
- Environments needing cable-free operation and long service life
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Batteryless voltage supply with UltraCap™ supercapacitor reduces electronic waste
- Long service life lowers replacement frequency and environmental impact
- Non-hazardous for shipping, minimizing transport risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IDM161E-411S USB Kit is available for immediate purchase, ideal for industrial wireless barcode scanning applications requiring robust, cable-free operation.
