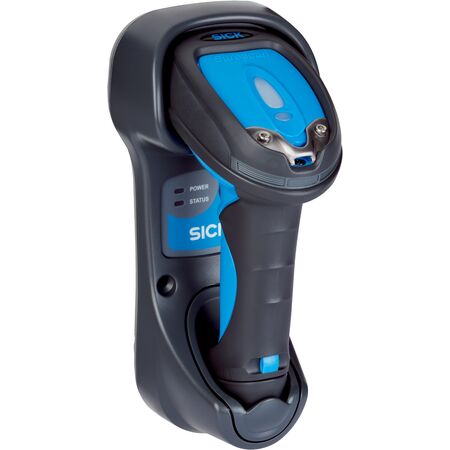

Wireless Industrial Barcode Scanner USB Kit | 1280 px Resolution | IP65 Rated | by SICK
The Wireless Industrial Barcode Scanner USB Kit is designed for seamless barcode scanning in industrial applications. With a high sensor resolution of 1280 px x 800 px and the ability to read 1D, 2D, and stacked codes, it’s perfect for warehouse and logistics environments. The IP65 rated enclosure ensures durability against dust and water, while the wireless design enhances operational flexibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 800 px
- Light source: LED visible red, 660 nm
- Alignment aid: Laser red, 630 nm, Class 1 (EN/IEC 60825-1:2014)
- Reading distance: 30 mm to 400 mm
- Code resolution: ≥ 0.07 mm (1D), ≥ 0.13 mm (2D)
- Supply voltage: 5 V DC ± 5%
- Current consumption: 750 mA during operation, 175 mA standby
- Enclosure rating: IP65
- Weight: 228 g
- MTBF: 100,000 hours
- Readable codes: 1D, 2D, stacked codes including Code 39, QR, Data Matrix, PDF417, and more
- Battery capacity: Over 60,000 scans per full charge
- Code buffer: 5,000 codes for batch mode, 100,000 codes for out-of-range scanning
- Interfaces: USB with keyboard wedge and COM-Port emulation
- Indicators: 2 LEDs, beeper (switchable), vibration feedback
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Shock resistance: 50 drops from 2 m height on concrete
- Dimensions (H x L x W): 176mm x 104mm x 76mm
- Weight: 0.228 kg
Key Features
- Wireless scanner design with USB interface
- High sensor resolution of 1280 px x 800 px
- Reads 1D, 2D, and stacked barcodes including QR, Data Matrix, PDF417
- LED visible red light source (660 nm) with laser alignment aid (630 nm)
- IP65 rated enclosure for dust and water resistance
- Shock resistant to 50 drops from 2 m height on concrete
- Battery supports over 60,000 scans per full charge
- Optical, acoustic, and vibration indicators for user feedback
- Configuration via IDM Setup Tool software
Professional Installation Requirements
- Professional installation is recommended to ensure proper configuration and integration with existing systems.
Applications
- Industrial applications requiring wireless barcode scanning
- Warehouse and logistics for 1D, 2D, and stacked code reading
- Batch scanning and out-of-range scanning environments
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Wireless design reduces cable waste and improves operational flexibility
- Long battery life reduces frequent battery replacements and waste
- Durable IP65 housing extends product lifespan, reducing electronic waste
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK IDM261-411S USB Kit is available for immediate purchase, ideal for industrial and logistics applications requiring reliable wireless barcode scanning.
