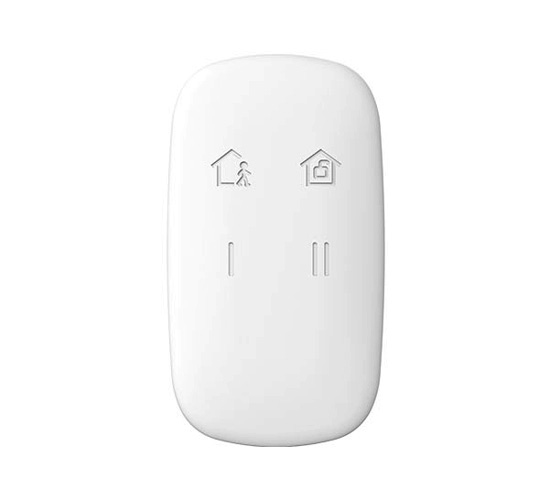

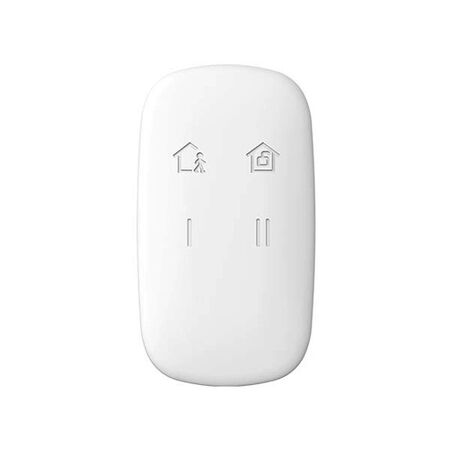

Wireless Keyfob AX PRO Hikvision
Hikvision AX PRO wireless keyfob for remote arming and disarming. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DS-PKF1-WB, Hikvision AX PRO Remote Keyfob, Wireless Alarm Keyfob
Technical Specifications
- Model: DS-PKF1-WB
- Wireless Frequency: 433 MHz
- Wireless Modulation: 2GFSK
- Wireless Range: Up to 500 m in open area
- Controls: 4 keys
- Status Indicator: Three-colour LED
- Battery: 1 x CR2032, 3 V included
- Battery Life: Up to 3 years in standby
- Quiescent Current: 1.13 µA
- Maximum Current: 34.3 mA
- Operating Temperature: -10 °C to +55 °C
- Operating Humidity: 10% to 90% non-condensing
- Housing Material: Plastic panel with rubber gasket
- Colour: White
- Approvals: RCM, CE, CB, FCC
- Environmental Compliance: RoHS, REACH and WEEE supported
- Dimensions (H x L x W): 63.2mm x 11.3mm x 35.2mm
- Weight: 0.1 kg
Key Features
- Remote arming and disarming of compatible Hikvision AX PRO alarm systems
- Four-button control layout for alarm and security-system functions
- Three-colour LED provides visual operating feedback
- Up to 500 m wireless transmission range in open areas
- Compact portable design for convenient everyday use
- Low standby current helps extend battery life
- Supplied with a CR2032 coin-cell battery
Applications
- Remote arming and disarming of Hikvision AX PRO alarm systems
- Residential security systems
- Small commercial security systems
- Portable user control for compatible wireless intrusion alarm installations
Standards & Compliance
- AS/NZS 4268:2017 for short-range radio devices used in security systems; manufacturer documentation states RCM support
Environmental Benefits
- Low quiescent current helps reduce battery consumption during standby
- Replaceable CR2032 battery supports continued product use without replacing the complete keyfob
- RoHS, REACH and WEEE support assists with restricted-substance management and end-of-life handling
- Durable plastic housing can help extend service life and reduce replacement waste
Warranty Information
Warranty is provided under Hikvision's applicable product warranty terms through authorised Australian distributors. Confirm the warranty period and conditions with the distributor at purchase.
Available Now
Available through Hikvision and authorised Australian security-system distributors.
