Trade Discount 25%

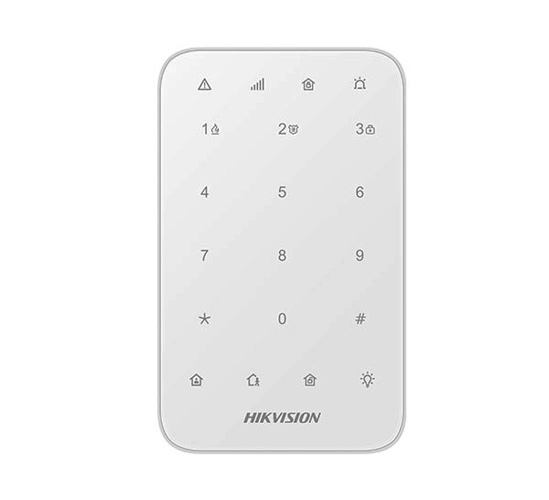

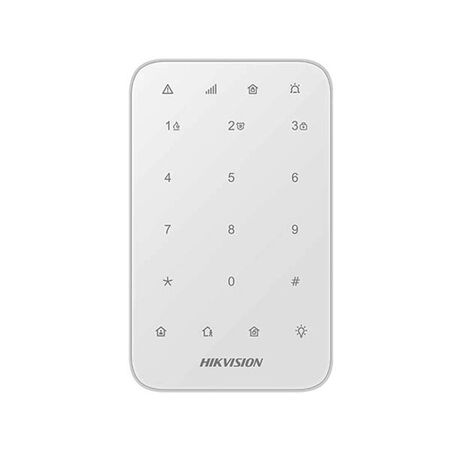

Wireless Keypad AX PRO Hikvision
Hikvision AX PRO wireless keypad for alarm system arming and control. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision AX PRO Wireless Keypad, DS-PK1-E-WB Alarm Keypad, Wireless LED Alarm Keypad
Technical Specifications
- Model: DS-PK1-E-WB
- Wireless Frequency: 433 MHz
- Wireless Modulation: 2GFSK
- Wireless Range: Up to 900 m in open area
- Communication Protocol: Tri-X two-way communication
- Power Supply: Four AA batteries, 1.5 VDC
- Battery Life: More than two years in standby
- Quiescent Current: 180 µA
- Maximum Current: 251 mA
- Operating Temperature: -10 °C to +55 °C
- Operating Humidity: 10% to 90% RH, non-condensing
- Installation: Screw mounting
- Colour: White
- Approvals: RCM, CE/CB and FCC stated by manufacturer
- Environmental Directives: RoHS, REACH and WEEE supported
- Dimensions (H x L x W): 86mm x 140mm x 22mm
- Weight: 0.151 kg
Key Features
- Wireless control device for Hikvision AX PRO alarm systems
- Supports stay arming, away arming, disarming and output control
- Numeric keypad with keys 0 to 9 plus dedicated function keys
- White LED backlight for low-light operation
- Status indicators for fault, enrolment or signal, arming, disarming and alarm
- Front and rear tamper protection
- Built-in buzzer for audible status and alarm indication
- Easy battery replacement using four AA batteries
- Remote configuration through the Hikvision alarm platform
- Frequency-hopping wireless transmission designed to resist interference
Professional Installation Requirements
- Installation and enrolment should be completed by a suitably qualified security technician, particularly where the keypad forms part of a monitored alarm system. Mount using screws and configure through a compatible Hikvision AX PRO control panel.
Applications
- Residential AX PRO intrusion alarm systems
- Small commercial security alarm systems
- Arming and disarming designated alarm areas
- Local alarm status indication and control
- Wireless output control within compatible Hikvision AX PRO installations
Standards & Compliance
- AS/NZS 4268:2017 Amd 1:2021 is a relevant Australian/New Zealand short-range radiocommunications equipment standard referenced by ACMA; confirm the model-specific declaration of conformity before installation.
- RCM approval is stated as supported by the manufacturer for the DS-PK1-E-WB.
Environmental Benefits
- More than two years of standby operation can reduce battery replacement frequency and associated waste.
- Replaceable AA batteries allow the keypad to be maintained without replacing the complete unit.
- RoHS, REACH and WEEE support helps limit restricted substances and supports responsible end-of-life handling.
- Long service life and durable tamper-protected construction can reduce replacement waste.
Warranty Information
Warranty is subject to Hikvision Australia authorised-channel terms and conditions. No model-specific warranty duration was identified for the DS-PK1-E-WB; Hikvision Australia advises purchasing through authorised distribution partners for local RMA and warranty support.
Available Now
Available through Hikvision and authorised Australian security-system distributors, subject to distributor stock.
