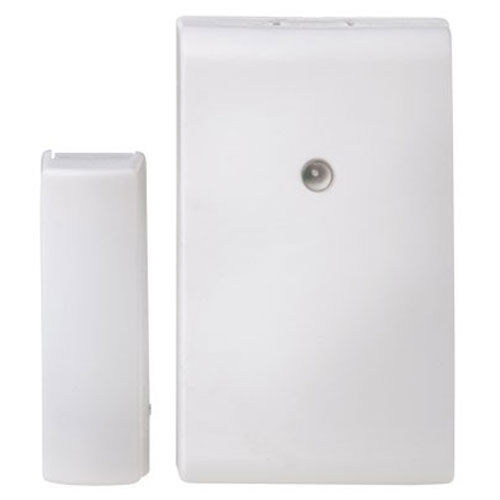

Wireless Magnetic Contact with Shock and Tilt Sensor 915MHz Ness

BRAND: Ness
SKU: 106-419
$210.00 List price: $280.00
+ −
30 Days Return Electricians Unlock Trade Access
Ness wireless magnetic contact features shock and tilt sensing and two-way 915MHz signal. Ideal for wireless alarm systems.

Alternatively Known As: Ness Air2-MC200, Wireless Door and Window Contact, Wireless Shock and Tilt Detector, Magnetic Contact with Integrated Shock Sensor

Technical Specifications
  • Wireless System: Ness Air2
  • Operating Frequency: 915 MHz band
  • Communication: Two-way wireless signal transmission
  • Detection: Magnetic contact, shock and tilt sensing
  • Shock Detection: Programmable sensitivity
  • Tilt Detection: Programmable tilt threshold
  • Security: Open and dislodgement tamper protection
  • Signalling: Separate channels for magnetic, shock and tilt alarm events
  • Battery: 3 V lithium CR2
  • Estimated Battery Life: Up to 4 years
  • Operating Temperature: -10°C to +40°C
  • Relative Humidity: Up to 93% non-condensing
  • Magnet Dimensions: 13 x 40 x 14 mm
  • Security Grade: Grade 2, where installed as part of a compliant system
  • Dimensions (H x L x W): 58mm x 35mm x 23mm
  • Weight: 0.1 kg
Key Features
  • Integrated magnetic contact, shock sensor and tilt sensor
  • Two-way 915 MHz communication with signal acknowledgement
  • Programmable shock sensitivity and tilt detection threshold
  • Can detect movement or tampering without relying solely on the magnet
  • Separate alarm signalling channels help identify the trigger source
  • Tamper protection against opening and forced removal
  • Suitable for overhead windows, awning windows, doors and other alarmed openings
  • Compact battery-powered design for retrofit and wireless alarm installations
Professional Installation Requirements
  • Installation, enrolment and programming should be performed by a suitably qualified security-alarm technician using a compatible Ness Air2 transceiver and control panel. Install the complete alarm system in accordance with applicable Australian requirements, including AS/NZS 2201.1:2007 where relevant.
Applications
  • Wireless residential alarm systems
  • Commercial and light-industrial intrusion alarm systems
  • Door and window opening detection
  • Overhead and awning window protection
  • Shock detection on doors, windows and vulnerable access points
  • Tilt or forced-movement detection on protected objects and openings
Standards & Compliance
  • AS/NZS 2201.1:2007 – applicable to the design, installation, commissioning and maintenance of wire-free intruder alarm systems
  • AS/NZS 4268:2017 – applicable Australian/New Zealand short-range radio equipment requirements; product-specific certification should be confirmed from the supplied compliance documentation
Environmental Benefits
  • Long estimated battery life of up to four years can reduce battery replacement frequency
  • Compact, durable construction may extend service life and reduce replacement waste
  • Lithium battery should be removed and recycled through an approved battery-recycling scheme at end of life
Warranty Information

Ness Corporation warranty: 3 years from date of purchase for Ness-manufactured or supplied products, subject to the manufacturer’s warranty terms and exclusions.

Available Now

Available through Ness Corporation and authorised Australian security-system distributors.
