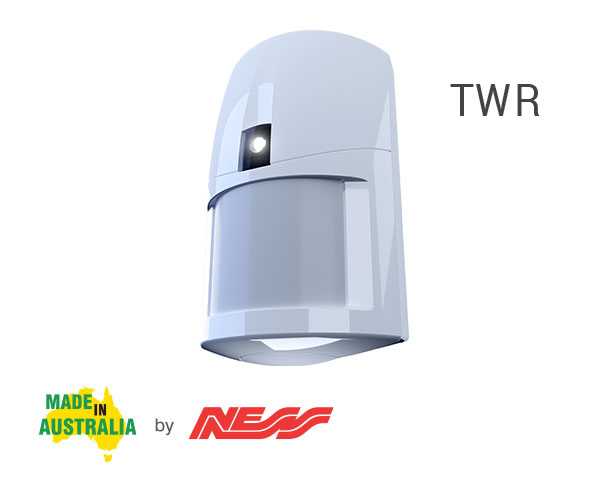

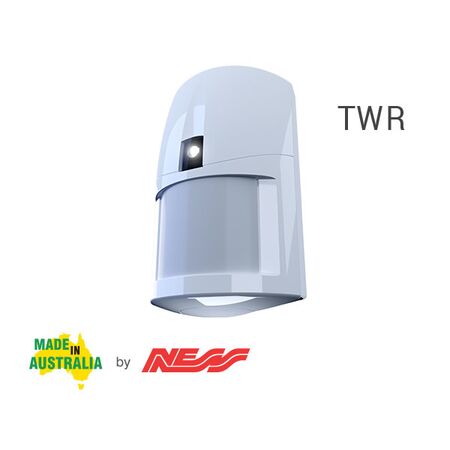

Wireless Motion Sensor 15m Range Adjustable Pulse LED Night-Light Ness
Ness wireless motion sensor features a 15m range, adjustable pulse and range, and LED night-light. Ideal for wireless alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness LUX Radio PIR, Ness Wireless Motion Detector, Ness Wireless PIR Sensor, Ness 106-168
Technical Specifications
- Detection Coverage: Up to 15m x 15m at 90°
- Detection Zones: 20 dual-element zones
- Pulse Count: Selectable 1–2 or 3–4 pulses
- Detection Range: Selectable 15m maximum or 12m maximum
- Sensor Type: Dual-element pyroelectric
- Night-Light: White LED with adjustable dark/dim-light threshold
- Operating Voltage: 3V DC
- Battery: 2 x CR123A lithium batteries
- Quiescent Current: Less than 14 µA
- Radio Frequency: 304MHz Australian version
- Alarm Period: 5 seconds
- Typical Battery Life: Up to 5 years, depending on use and settings
- Mounting Height: 2.1–2.4m
- Compatibility: Ness radio-enabled control panels and one-way radio receivers
- Dimensions (H x L x W): 112mm x 48mm x 72mm
- Weight: 0.2 kg
Key Features
- Wireless passive infrared motion detection for Ness alarm systems
- 15m x 15m wide-angle coverage
- Selectable high and low detection range
- Selectable 1–2 or 3–4 pulse count
- Motion-activated white LED night-light
- Adjustable ambient-light threshold for night-light activation
- Low-power operation with dual CR123A lithium batteries supplied
- Low-battery warning and hourly supervision radio signals
- High RF, ESD and white-light immunity
- Sealed capsule design protecting electronic components
- Wall mounting bracket included
- Optional ceiling mounting bracket available
Professional Installation Requirements
- Installation, programming and walk testing should be performed by a suitably qualified security installer in accordance with the alarm system manufacturer's instructions and applicable Australian requirements.
Applications
- Indoor motion detection for Ness wireless alarm systems
- Residential security alarm systems
- Commercial security alarm systems
- Entryways, hallways, stairwells and other areas requiring motion-activated night lighting
Standards & Compliance
- Applicable to intruder alarm system installations designed, installed, commissioned and maintained in accordance with AS/NZS 2201.1:2007
- Relevant detection-device requirements may be addressed under AS 2201.3:1991
Environmental Benefits
- Low quiescent current helps extend battery service life and reduce battery replacement frequency
- Typical battery life of up to five years can reduce consumable battery waste
- Sealed electronics and durable housing support longer product service life
- Replaceable lithium batteries allow the sensor to remain in service without replacing the complete unit
Warranty Information
Ness manufactured or supplied products are covered by Ness Corporation's product warranty for 3 years from the date of purchase, unless otherwise specified.
Available Now
Available through Ness and authorised Australian security-system distributors.
