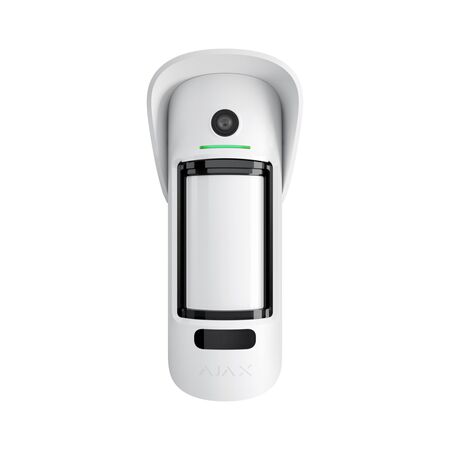

Wireless Outdoor Motion Detector with Camera | Dual PIR & K-Band Sensor | Photo Verification | IP55 Rated | by AJAX
The Wireless Outdoor Motion Detector with Camera is designed for advanced security, featuring dual PIR sensors and a K-band microwave sensor for precise motion detection. Ideal for outdoor applications in commercial and industrial settings, it offers photo verification capabilities and operates effectively in temperatures from -25 °C to +60 °C. With a wireless range of up to 1700 m and a battery life of up to 3 years, this device ensures reliable monitoring and peace of mind.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wireless Outdoor Motion Detector with Camera | Dual PIR & K-Band Sensor | Photo Verification | IP55 Rated | by AJAX
Brand: AJAX
SKU: 107890.282.WH3
Alternatively Known As: Wireless Outdoor Motion Detector with Camera, AJAX Outdoor Motion Sensor, HighMount MotionCam, Outdoor PIR Motion Detector
Technical Specifications
- Sensitive element: 2 PIR sensors with anti-masking system and 1 K-band microwave sensor
- Motion detection distance: up to 15 m (installed at 2-4 m height)
- Motion detection angle: 90° horizontal
- Motion detection speed: 0.3 to 2 m/s
- Image resolution: up to 640 × 480 pixels
- Number of photos by alarm: 1 to 5 images at 320 × 240 px or 1 to 3 images at 640 × 480 px
- Photo verification types: Alarm, On Demand, Scenario, Schedule
- Photo delivery time: up to 9 s (320 × 240 px), up to 20 s (640 × 480 px)
- Infrared backlight for night shooting: Yes
- Sensitivity levels: 3 adjustable
- False alarm prevention: LISA Smart Detect software algorithms
- Temperature compensation: Effective from −25 °C to +60 °C
- Wireless communication range: up to 1700 m
- Battery: 6 × CR123A with up to 3 years life
- External supply voltage: 12−24 V⎓ with battery backup
- Tamper alarm: Detects removal attempts
- Magnetometer: Detects tilt, shift, or detachment
- Anti-masking system: Detects view blocking attempts
- Protection class: IP55
- Operating humidity: up to 95%
- Dimensions (H x L x W): 234mm x 230mm x 98mm
- Weight: 1.01 kg
Key Features
- Wireless IR motion detector with on-demand and scheduled photo capture
- Dual PIR sensors and K-band microwave sensor for accurate dual motion detection
- Photo verification via alarm, scenario, schedule, and on demand
- False alarm filter using SmartDetect and LISA algorithms

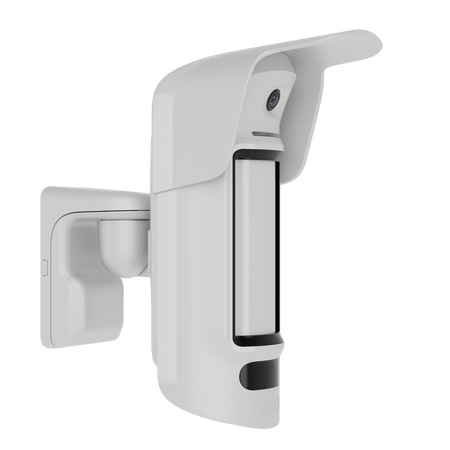

- Metal swivel mount for flexible viewing angle adjustment
- Detection distance up to 15 m with 90° horizontal angle
- Infrared backlight for shooting in the dark
- Temperature compensation for effective detection from −25 °C to +60 °C
- Tamper alarm and anti-masking system for enhanced security
- Wireless communication range up to 1700 m
- Battery life up to 3 years with 6 × CR123A batteries
Professional Installation Requirements
- Professional installation recommended; mount on vertical surface at 2–4 m height with tilt angle adjusted via swivel mount to cover expected intrusion paths.
Applications
- Outdoor security for remote locations, warehouses, industrial complexes
- Offices and private houses requiring outdoor motion detection
- Commercial premises needing reliable motion detection with photo verification
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long battery life reduces battery waste and replacement frequency
- Energy-efficient wireless technology minimizes power consumption
Warranty Information
24 months warranty.
Available Now
The AJAX MotionCam HighMount Outdoor (PhOD) White is available for immediate purchase, ideal for securing outdoor commercial and industrial premises with advanced motion detection and photo verification.
