Trade Discount 17%

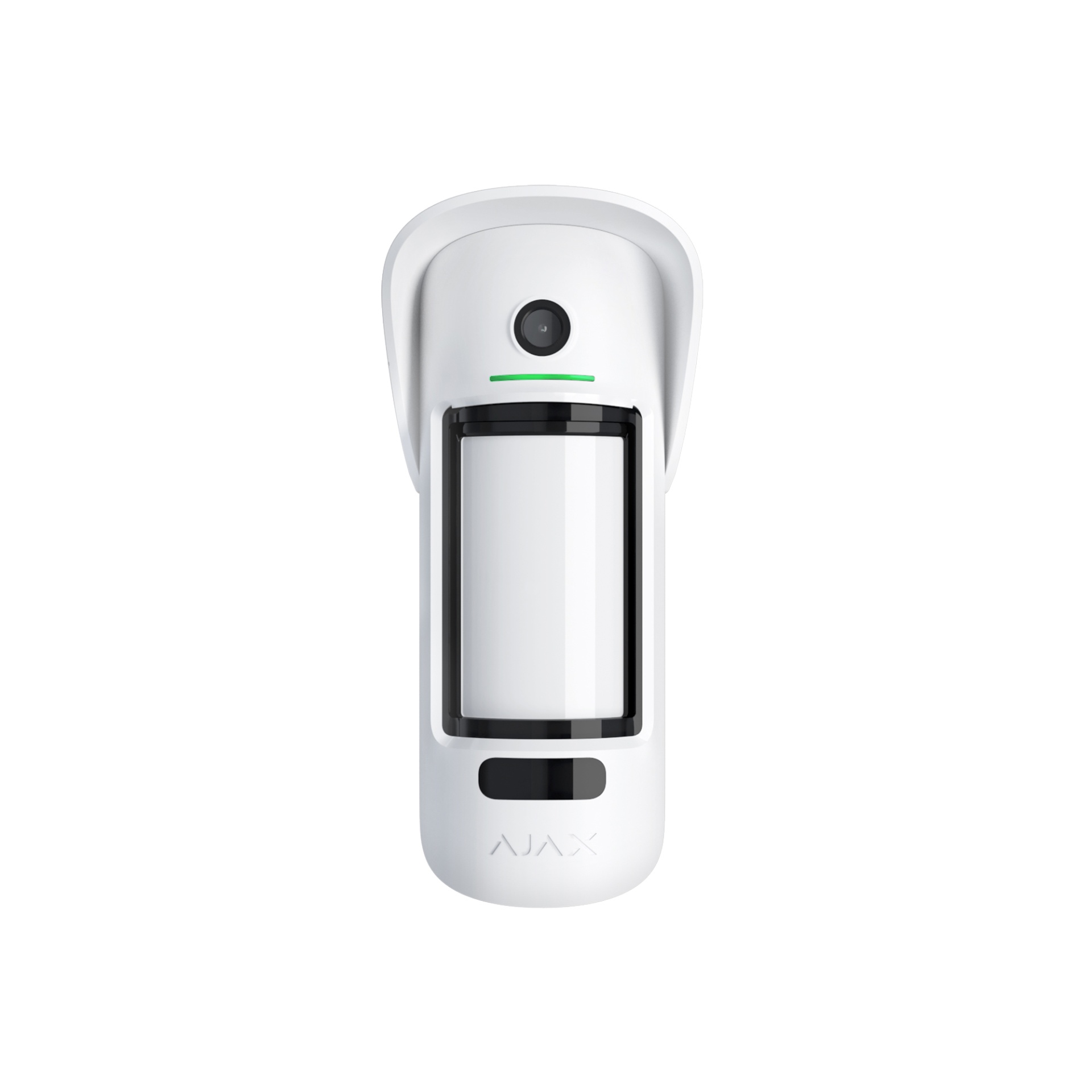

Wireless Outdoor Motion Detector with Camera | IP55 Rated | 1700m Range | Dual PIR Sensors | by AJAX

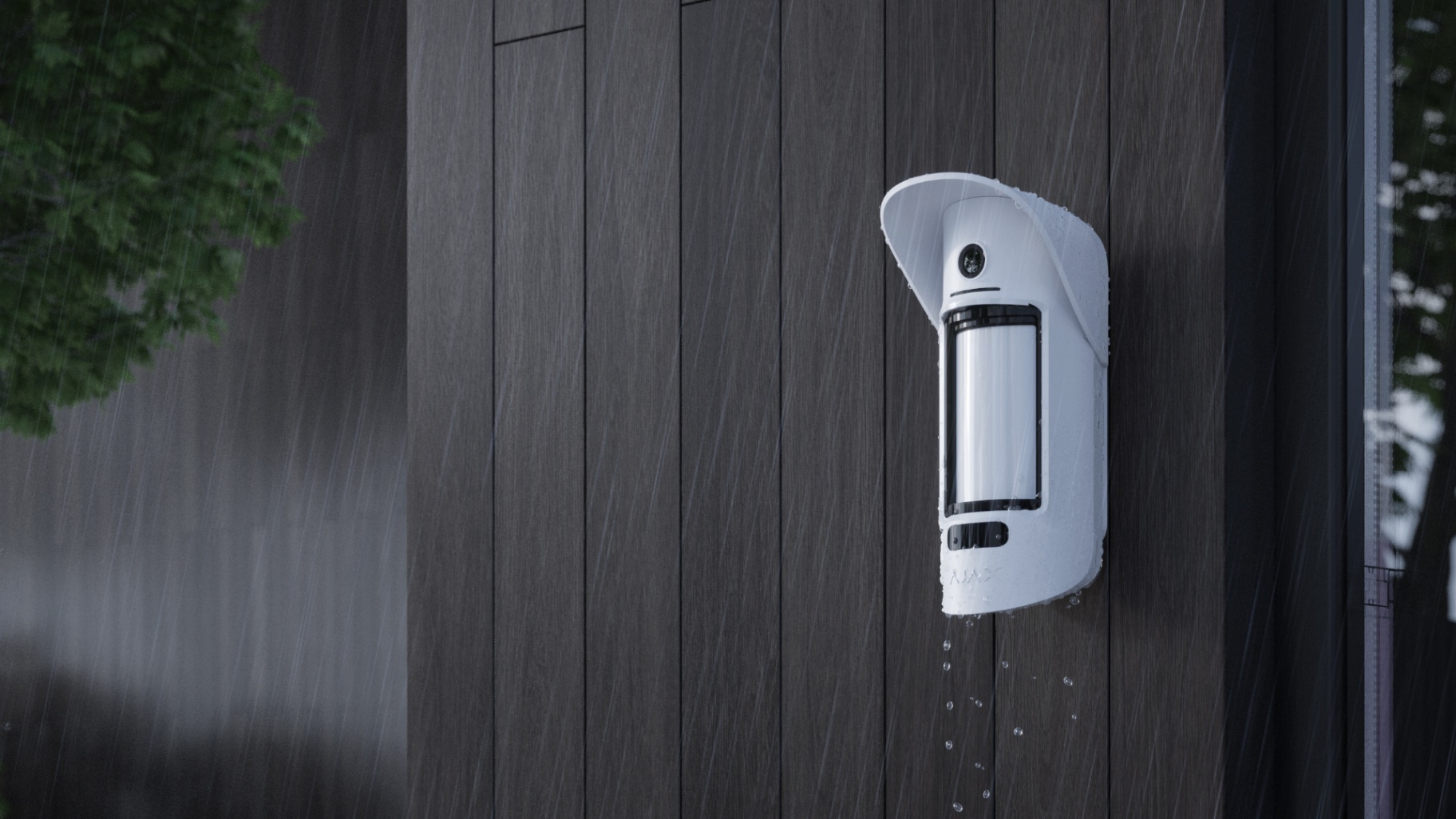

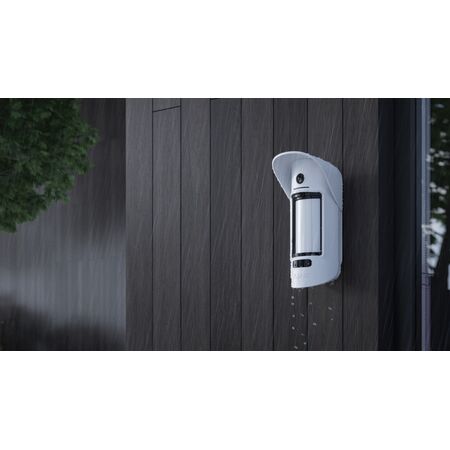

The AJAX MotionCam Wireless Outdoor PIR with Camera is designed for effective outdoor security, featuring dual PIR sensors and a high-resolution camera for alarm verification. With a wireless communication range of up to 1700m and IP55 protection, it’s perfect for residential, commercial, and industrial applications, ensuring reliable performance in any weather condition.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wireless Outdoor Motion Detector with Camera | IP55 Rated | 1700m Range | Dual PIR Sensors | by AJAX
Brand: AJAX
SKU: 30653.84.WH3
Alternatively Known As: Wireless Outdoor Motion Detector with Camera, Outdoor PIR Motion Sensor with Photo Verification, AJAX MotionCam Outdoor Sensor
Technical Specifications
- Sensitive element: PIR sensor x 2 with Anti-masking system
- Motion detection distance: 3 to 15 m (installed at 0.8 - 1.3 m height)
- Motion detection angle: horizontal 90°
- Motion detection speed: 0.3 to 2 m/s
- Image resolution: up to 640 × 352 pixels
- Number of photos per alarm: 1 to 5 images (320 × 176 px default or 640 × 352 px)
- Infrared backlight for shooting in the dark: Yes
- Compatibility with radio signal range extenders: ReX 2
- Sensitivity: 3 levels
- Pet immunity: up to 80 cm height
- False alarm prevention: SmartDetect Software algorithm
- Temperature compensation: effective from −25 °C to +60 °C
- Wireless communication range: up to 1700 m
- Battery: 4 × CR123A
- Calculated battery life: up to 3 years
- Operating temperature range: from −25 °C to +60 °C
- Operating humidity: up to 95%
- Protection class: IP55
- Dimensions (H x L x W): 206mm x 93mm x 108mm
- Weight: 0.47 kg
Key Features
- Wireless outdoor motion detector with photo camera for alarm verification
- Uncompromising communication reliability
- Intelligent false alarm filter with SmartDetect Software algorithm
- Multilevel anti-sabotage protection
- Effective security in any weather conditions
- HDR camera with IR backlight for day and night operation
- Series of 2-5 photos per alarm
- Two independent PIR sensors with LISA algorithm for motion detection
- Pet immunity up to 80 cm height
- Wireless communication range up to 1700 m
- IP55 protection class

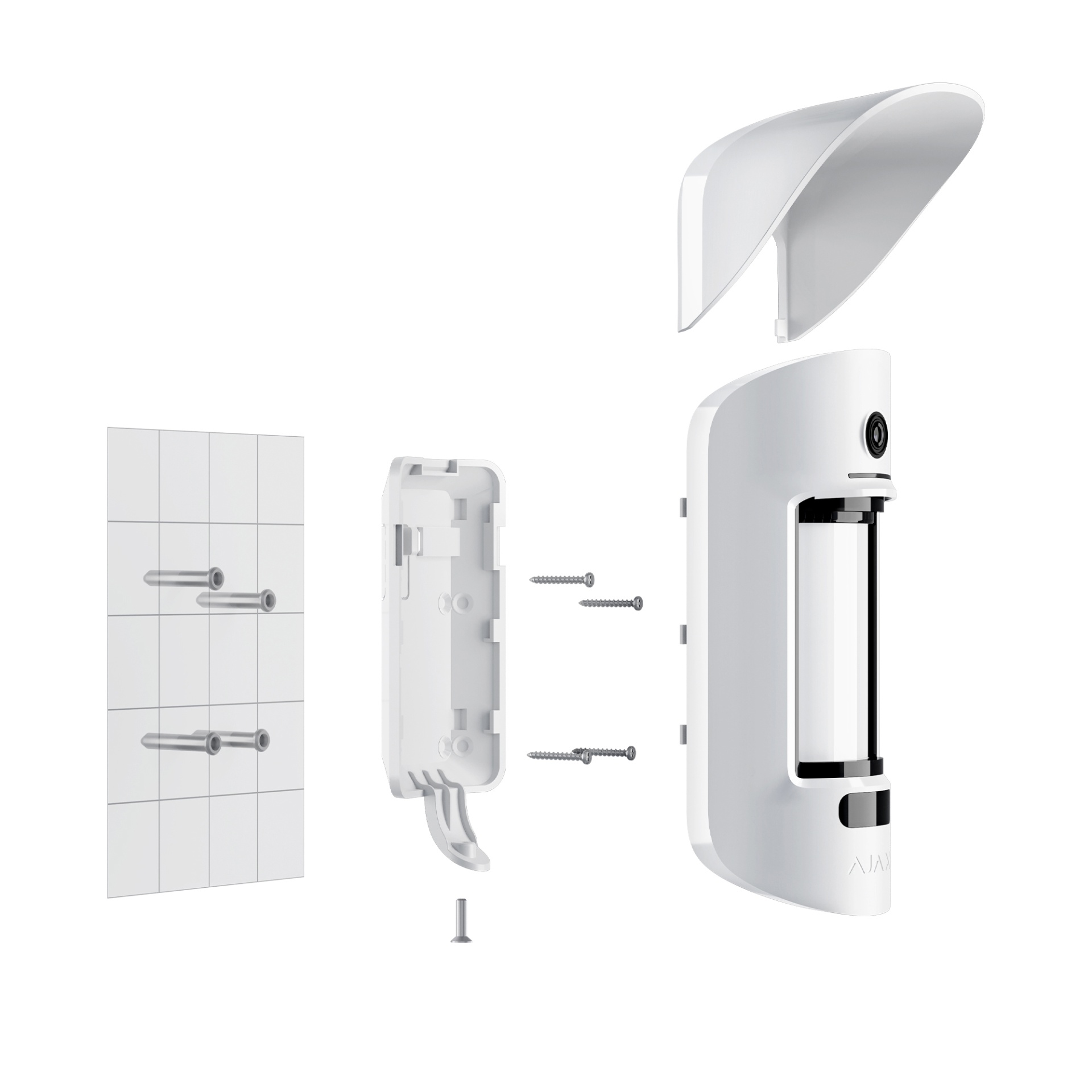

Professional Installation Requirements
- Professional installation by a qualified security system technician is recommended to ensure optimal placement and reliable wireless communication.
Applications
- Outdoor security for residential properties
- Commercial property perimeter monitoring
- Industrial site intrusion detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long battery life up to 3 years reduces battery waste
- Wireless design minimizes installation impact on environment
Warranty Information
24 months warranty.
Available Now
The AJAX MotionCam Wireless Outdoor PIR with Camera White is available now for immediate purchase. Ideal for outdoor security applications in residential, commercial, and industrial settings.
