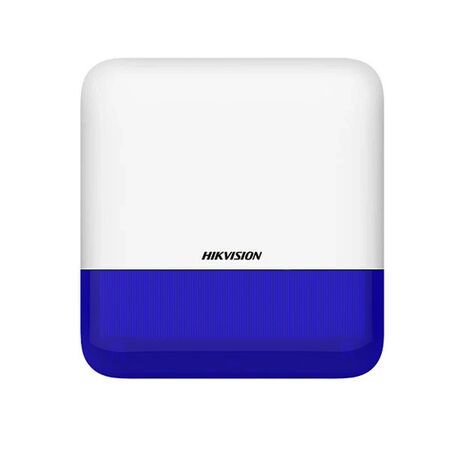

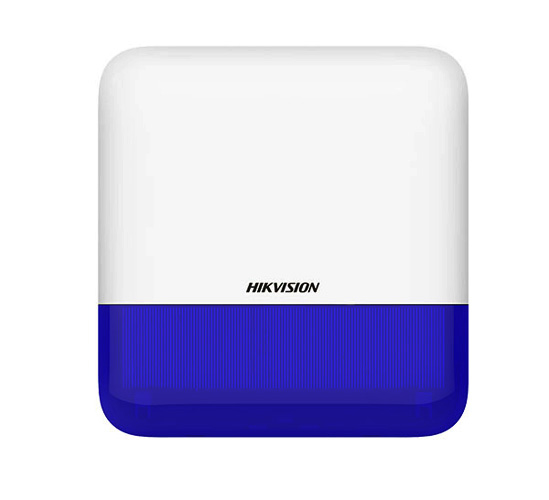

Wireless Outdoor Siren Blue AX PRO Hikvision
Hikvision AX PRO wireless outdoor siren in blue. Ideal for alarm systems needing audible external alerts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision AX PRO Wireless External Sounder, Wireless Outdoor Alarm Siren, Blue Strobe Siren
Technical Specifications
- Model: DS-PS1-E-WB
- Alarm Output: 102 dB piezo sounder
- Strobe: Blue and red LED strobe indication
- Wireless Frequency: 433 MHz
- Wireless Communication: Two-way 2GFSK communication
- Wireless Range: Up to 900 m in open area
- Power Supply: Battery or 12 VDC
- Battery Type: 4 × CR123A lithium batteries
- Battery Life: Up to 3 years under specified operating conditions
- Encryption: AES-128
- Tamper Protection: Front and rear tamper switches
- Sound Duration: Up to 15 minutes
- Operating Temperature: -25 °C to 60 °C
- Operating Humidity: 10% to 90% non-condensing
- Ingress Protection: IP65
- Housing Material: PC+ABS
- Installation: Wall mounting
- Dimensions (H x L x W): 200mm x 47.3mm x 190mm
- Weight: 0.6065 kg
Key Features
- Designed for Hikvision AX PRO wireless alarm systems
- Blue visual strobe for external alarm indication
- Two-way wireless status communication with the alarm hub
- AES-128 encrypted wireless transmission
- Frequency-hopping support to help resist wireless interference
- Front and rear tamper protection
- IP65-rated enclosure for outdoor installation
- Low-power battery operation with up to three years of battery life
- Supports battery or 12 VDC power supply
Professional Installation Requirements
- Installation and commissioning should be performed by a suitably qualified security alarm installer. Configure and test the siren with a compatible Hikvision AX PRO control panel, and follow the manufacturer's installation instructions and applicable local requirements.
Applications
- Residential intruder alarm systems
- Small business and commercial security systems
- External alarm notification for AX PRO installations
- Outdoor wall or eaves-mounted alarm applications
- Visible deterrence and audible warning at building perimeters
Standards & Compliance
- AS/NZS 2201.1:2007 - relevant system-level requirements for the design, installation, commissioning and maintenance of intruder alarm systems
- ACMA requirements for wireless short-range devices and radiocommunications equipment apply to the 433 MHz wireless functionality
Environmental Benefits
- Wireless installation can reduce the need for additional signal cabling and associated installation materials
- Up to three-year battery life can reduce battery replacement frequency and maintenance waste
- PC+ABS housing materials may be recoverable through appropriate plastics recycling streams
- Long service life and tamper-resistant construction can reduce premature replacement of the unit
Warranty Information
Warranty is subject to Hikvision Australia warranty terms and proof of purchase through an authorised Australian distribution channel. Hikvision's published five-year project warranty applies only to listed premium project-oriented product series and does not identify AX PRO alarm sirens as included; confirm the applicable warranty period with the authorised distributor.
Available Now
Available through Hikvision and authorised Australian security distributors, subject to regional model compatibility and distributor stock.
