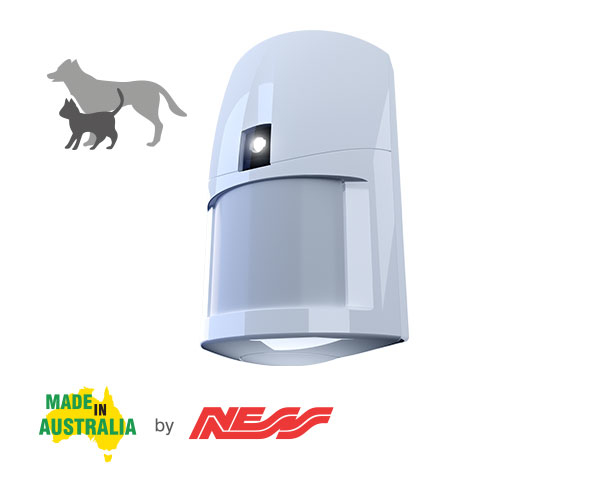

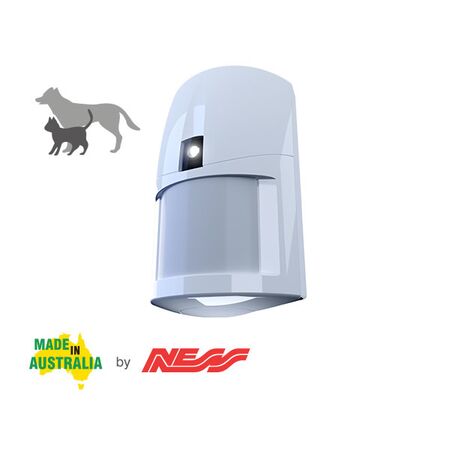

Wireless Pet PIR Motion Detector 15m 304MHz LED Night-Light Ness
Ness wireless pet PIR motion detector features 15m coverage, LED night-light and 304MHz radio. Ideal for wireless alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness LUX Radio PIR, Wireless Pet PIR Sensor, Wireless Intruder Motion Detector, Pet-Immune PIR Detector
Technical Specifications
- Detection Coverage: Up to 15m x 15m at 90°
- Pet Immunity: Single animal up to 18kg or multiple animals up to 10kg total
- Sensor: Dual-element pyroelectric
- Detector Zones: 20 dual-element zones
- Pulse Count: Selectable 1–2 or 3–4
- Detection Range: Selectable high or low; 15m or 12m maximum
- Operating Voltage: 3V DC
- Battery: 2 x CR123A lithium batteries
- Typical Battery Life: Up to 5 years, depending on activations and night-light settings
- Radio Frequency: 304MHz
- Transmit Power: 100μW
- Night-Light: White LED, motion activated with adjustable light threshold
- Alarm Indication: Blue LED
- Quiescent Current: Less than 14μA
- Compatibility: Ness radio-enabled control panels, MCR receiver and SCR receiver
- Included Accessories: Wall mounting bracket, manual and 2 x CR123A batteries
- Manufacturing: Made in Australia
- Dimensions (H x L x W): 112mm x 48mm x 72mm
- Weight: 0.2 kg
Key Features
- Pet-aware detection for household animals
- 15m x 15m wide-angle coverage
- 304MHz wireless communication for compatible Ness alarm systems
- Motion-activated white LED night-light
- Adjustable pulse count and detection range
- High RF, ESD and white-light immunity
- Low-battery warning and hourly supervision signals
- Sealed electronics capsule design
- Long-life lithium battery operation
- Optional ceiling mounting with compatible bracket
Professional Installation Requirements
- Installation and commissioning should be performed by a suitably qualified security installer. Mount at approximately 2.1–2.4m and configure the detector in accordance with the manufacturer’s instructions and the applicable alarm-system requirements.
Applications
- Indoor intruder detection in residential properties
- Indoor security monitoring in small commercial premises
- Wireless alarm systems using compatible Ness radio receivers or control panels
- Pet-aware perimeter protection where household animals remain indoors
- Motion-activated pathway or safety lighting through the integrated night-light
Standards & Compliance
- Applicable radio equipment requirements: AS/NZS 4268:2017, including Amendment 1:2021, subject to the product’s declared ACMA compliance
- Applicable intruder alarm system installation requirements: AS/NZS 2201.1:2007 for wire-free systems installed at client premises
Environmental Benefits
- Up to five-year typical battery life can reduce battery replacement frequency and associated waste
- Low-power wireless operation and LED night-light minimise energy consumption during use
- Replaceable batteries and durable sealed electronics can support a longer service life and reduce premature product disposal
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified. Australian Consumer Law rights also apply.
Available Now
Available through Ness and authorised Australian security equipment distributors.
