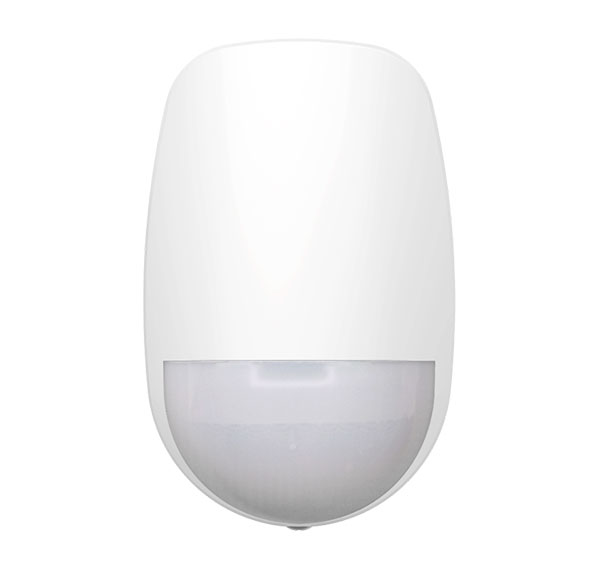

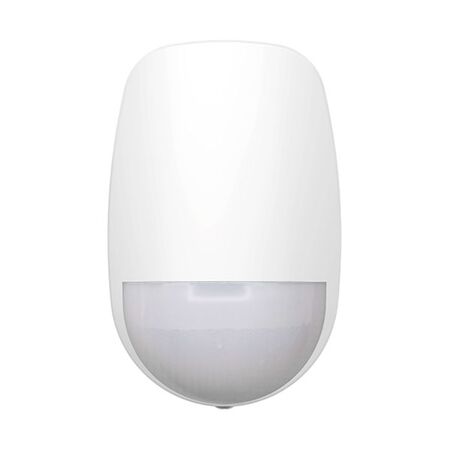

Wireless PIR Detector Version B AX PRO Hikvision
Hikvision AX PRO wireless PIR detector, revision B, for motion detection. Ideal for alarm systems.
Sign in
Please login to continue to your account.
Alternatively Known As: AX PRO Wireless PIR Motion Detector, Pet-Immune Wireless Intruder Detector, Hikvision Wireless Indoor PIR Sensor
- Model: DS-PDP15P-EG2-WE(B)
- Detection Method: Passive infrared (PIR)
- Detection Range: 15 m; 12 m EN-compliant range
- Detection Angle: 90°
- Detection Zones: 84
- Detectable Speed: 0.3–2 m/s
- Sensitivity: Automatic, high and pet modes
- Pet Immunity: Up to 30 kg for animals below 400 mm height
- Transmission Technology: Tri-X wireless, two-way RF
- Transmission Frequency: 868 MHz
- Wireless Security: AES-128 encryption with frequency hopping
- Open-Air Transmission Range: Up to 1.6 km
- Battery: 1 x CR123A, 3 V, 1600 mAh; included
- Typical Battery Life: Up to 5 years in standby
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10% to 90% RH
- Mounting Height: 1.8–2.4 m
- Mounting Method: Wall; optional wall or ceiling bracket
- Application: Indoor use
- Security Classification: Security Grade 2, Environmental Class II
- Dimensions (H x L x W): 103mm x 48.5mm x 65.5mm
- Weight: 0.128 kg
- Fully supervised wireless PIR detector for Hikvision AX PRO alarm systems
- Digital signal processing and temperature compensation for stable motion detection
- Pet immunity up to 30 kg when correctly installed
- Front and rear tamper protection
- Creep-zone protection and sealed optics
- Blue alarm indicator and signal-strength indication
- Power-up, remote-ID and QR-code enrolment methods
- Replaceable CR123A battery and optional wall or ceiling mounting bracket
- Manufacturer specifications list 15 m detection, 868 MHz two-way wireless communication and up to five years of battery life. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/products/S000000001/S000000601/S000000933/S000000935/OFR000961/M000109201/Data_Sheet/DS-PDP15P-EG2-WEB_Datasheet_20230717.pdf?utm_source=openai))
- Install and commission in accordance with the Hikvision installation instructions and AS/NZS 2201.1:2007 where forming part of a compliant intruder alarm system. Professional security-system installation is recommended for correct detector positioning, enrolment, testing and system commissioning.
- Indoor residential intrusion detection
- Commercial premises and small-business security systems
- AX PRO wireless alarm systems
- Rooms, corridors, offices, retail areas and entry zones
- Pet-aware motion detection where animals are below the specified immunity threshold
- AS/NZS 2201.1:2007 — Intruder alarm systems, client premises: design, installation, commissioning and maintenance; applicable to the completed alarm system, including wire-free systems, rather than confirmed as a standalone product certification. ([inus04aapb1h3nprod.dxcloud.episerver.net](https://inus04aapb1h3nprod.dxcloud.episerver.net/en-au/standards/as-nzs-2201-1-2007-117334_saig_as_as_245553/?utm_source=openai))
- Low-power wireless operation reduces the need for signal cabling and associated installation materials
- Replaceable CR123A battery and up to five-year standby life can reduce replacement frequency and electronic waste
- Long service life and sealed optics may reduce premature detector replacement
- Battery disposal should follow local requirements for lithium battery recycling
Hikvision Australia states that the applicable warranty period is determined by the relevant product warranty or contract terms. Australian security distributors commonly list a three-year warranty for Hikvision alarm systems, but the warranty should be confirmed with the authorised distributor at purchase. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/au/marketing-material/rma/Hikvision-RMA-Policy.pdf?utm_source=openai))
Available through Hikvision and authorised Australian security-system distributors; confirm regional model suffix, authorised Australian stock and current distributor availability before ordering. ([pro-av.hikvision.com](https://pro-av.hikvision.com/au-en/products/Alarm-Products/?utm_source=openai))
