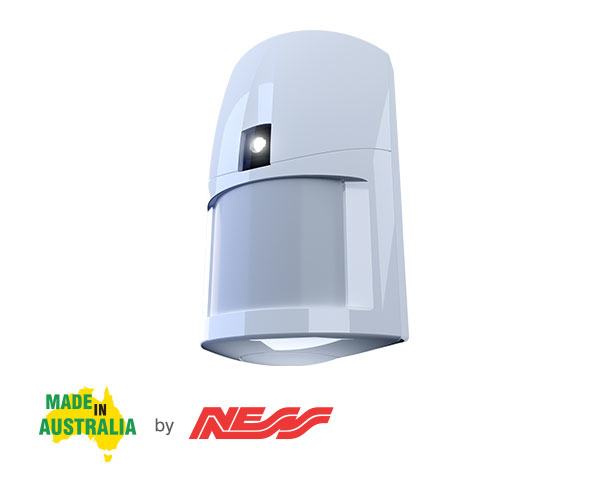

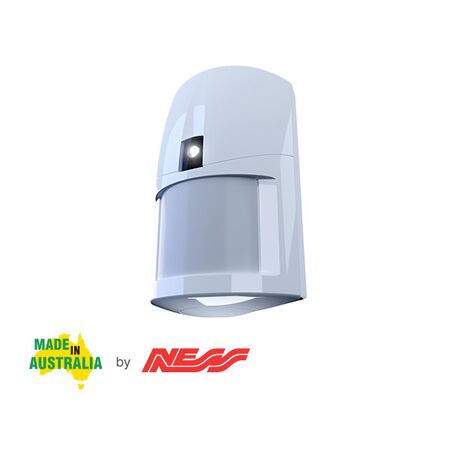

Wireless PIR Motion Detector 304MHz 15m Coverage Night-Light Ness

BRAND: Ness
SKU: 106-168
$142.70 List price: $190.20
+ −
30 Days Return Electricians Unlock Trade Access
Ness wireless PIR motion detector features 304MHz radio, 15m coverage and night-light. Ideal for wireless alarm systems.

Alternatively Known As: Ness LUX Radio PIR 304MHz, Ness 106-168 Wireless PIR, Wireless Alarm Motion Sensor with Night-Light

Technical Specifications
  • Detection Coverage: Up to 15m x 15m at 90°
  • Detection Zones: 20 dual-element zones
  • Detection Range: Selectable 15m maximum or 12m maximum
  • Sensor: Dual-element pyroelectric
  • Radio Frequency: 304MHz
  • Transmit Power: 100µW
  • Operating Voltage: 3V DC
  • Battery: 2 x CR123A lithium batteries
  • Quiescent Current: Less than 14µA
  • Pulse Count: Selectable 1–2 or 3–4 pulses
  • Night-Light: White LED with adjustable dark/dim-light threshold
  • Alarm Period: 5 seconds
  • Typical Battery Life: Up to 5 years, depending on activation frequency and night-light settings
  • Compatibility: Ness radio-enabled control panels and compatible one-way radio receivers
  • Dimensions (H x L x W): 112mm x 48mm x 72mm
  • Weight: 0.2 kg
Key Features
  • Wireless 304MHz operation for compatible Ness alarm systems
  • 15m x 15m wide-angle PIR coverage
  • Motion-activated white LED night-light
  • Adjustable detection range and pulse count
  • High RF, ESD and white-light immunity
  • Low-power design with supplied lithium batteries
  • Low-battery warning and hourly supervision radio signals
  • Sealed capsule design protects the electronics
  • Includes wall-mounting bracket
  • Made in Australia
Professional Installation Requirements
  • Installation, programming and commissioning should be performed by a suitably qualified security alarm installer. Mount at approximately 2.1–2.4m and configure in accordance with the compatible Ness alarm panel instructions and applicable Australian requirements.
Applications
  • Wireless residential intruder alarm systems
  • Commercial security alarm systems
  • Entry halls, corridors and rooms requiring motion detection
  • Night-time path lighting within alarm-protected areas
  • Retrofit installations where wired PIR cabling is impractical
Standards & Compliance
  • Relevant installation framework: AS 2201.1:2007 for intruder alarm systems installed in client premises
  • Relevant detector guidance: AS 2201.3 for intruder alarm detection devices for internal use
Environmental Benefits
  • Low quiescent current helps extend battery service life and reduce battery replacement frequency
  • Long battery life can reduce consumable battery waste over the product lifespan
  • Ness publishes RoHS compliance information for its products
  • Replaceable lithium batteries support servicing without replacing the complete detector
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness Corporation warranty terms and exclusions.

Available Now

Available through Ness Corporation and authorised Australian security distributors, subject to distributor stock.
