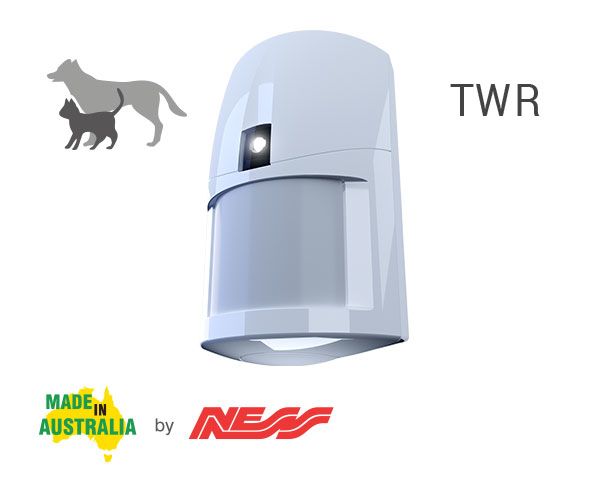

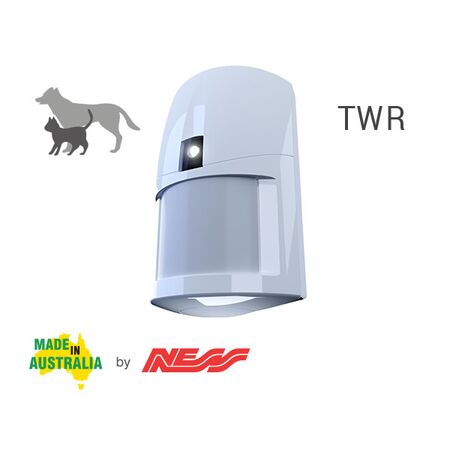

Wireless PIR Motion Detector Pet Immune 15m Range Battery Ness
Ness wireless PIR motion detector features pet immunity, 15m range and battery operation. Ideal for wireless alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness LUX Radio PIR, Ness 106-170 Wireless Pet PIR, Wireless Passive Infrared Motion Sensor
Technical Specifications
- Detection Coverage: Up to 15m x 15m at 90°
- Detection Zones: 20 dual-element zones
- Detection Range: Selectable 12m or 15m
- Sensor: Dual-element pyroelectric
- Pet Immunity: Single pet up to 18kg or multiple pets up to 10kg total
- Pulse Count: Selectable 1–2 or 3–4
- Operating Voltage: 3V DC
- Battery: 2 x CR123A lithium batteries
- Typical Battery Life: Up to 5 years, depending on activations and night-light settings
- Radio Frequency: 304MHz
- Transmit Power: 100μW
- Quiescent Current: Less than 14μA
- Alarm Indication: Blue LED
- Night-Light: White LED, motion activated with adjustable light threshold
- Compatibility: Ness radio-enabled control panels, MCR receivers and SCR receivers
- Mounting Height: 2.1m–2.4m
- Operating Temperature: Not published by manufacturer
- Dimensions (H x L x W): 112mm x 48mm x 72mm
- Weight: 0.18 kg
Key Features
- Wireless PIR motion detection for Ness alarm systems
- Pet-aware detection helps reduce alarms caused by household animals
- 15m maximum detection range with selectable high and low range settings
- Long-life lithium battery operation
- Built-in motion-activated white LED night-light
- Low-battery warning and hourly supervision radio signals
- High RF, ESD and white-light immunity
- Sealed capsule electronics design
- Wall mounting bracket supplied
- Made in Australia
Professional Installation Requirements
- Installation and commissioning should be performed by a suitably qualified security installer. Position the detector at 2.1m–2.4m and configure it as part of a compatible Ness alarm system in accordance with the system design and applicable Australian requirements.
Applications
- Residential wireless intruder alarm systems
- Small commercial security systems
- Indoor perimeter protection
- Homes with cats or dogs within the stated pet-immunity limits
- Entry halls, living areas, offices and internal circulation spaces
Standards & Compliance
- Applicable to intruder alarm system installation practices under AS/NZS 2201.1:2007
- Detection-device requirements are addressed by AS 2201.3:1991; verify complete system certification and current requirements with the installer
Environmental Benefits
- Long-life lithium battery operation can reduce replacement frequency and associated battery waste
- Ness publishes a RoHS certificate of compliance for its product range
- Sealed electronics and durable construction can help extend service life and reduce replacement waste
- Low quiescent current supports efficient battery operation
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified. Warranty claims are subject to Ness Corporation terms and conditions.
Available Now
Available through Ness Corporation and authorised Australian security-system distributors, subject to current product range and stock availability.
