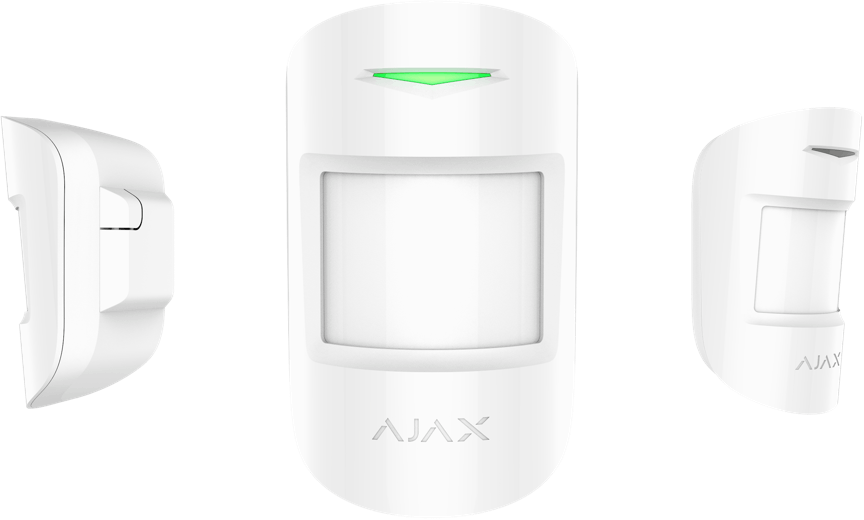

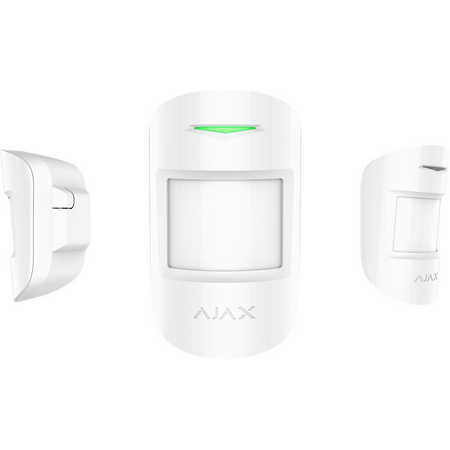

Wireless PIR Motion Sensor | 12m Detection Distance | Pet Immune | SmartDetect Algorithm | by AJAX
The AJAX MOTIONPROTECT Wireless PIR Motion Sensor is designed for reliable indoor security, featuring a detection distance of up to 12 meters and pet immunity for animals up to 20 kg. Ideal for residential and commercial applications, this sensor utilizes SmartDetect Software to minimize false alarms, ensuring peace of mind in your security system.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wireless PIR Motion Sensor | 12m Detection Distance | Pet Immune | SmartDetect Algorithm | by AJAX
Brand: AJAX
SKU: 30655.09.WH3
Alternatively Known As: Wireless PIR Motion Sensor, Indoor Motion Detector, Pet Immune Motion Sensor
Technical Specifications
- Sensitive element: PIR sensor
- Motion detection distance: up to 12 m (installed at 2.4 m height)
- Motion detection angle: horizontal 88.5°
- Motion detection speed: 0.3 to 2 m/s
- Sensitivity levels: 3
- Pet immunity: weight up to 20 kg, height up to 50 cm
- False alarm prevention: SmartDetect Software algorithm
- Temperature compensation: effective from −10 °C to +40 °C
- Wireless communication range: up to 1700 m
- Battery: 1 × CR123A
- Calculated battery life: up to 5 years
- Operating temperature range: −10 °C to +40 °C
- Operating humidity: up to 75%
- Protection class: IP50
- Dimensions (H x L x W): 50mm x 110mm x 65mm
- Weight: 0.086 kg

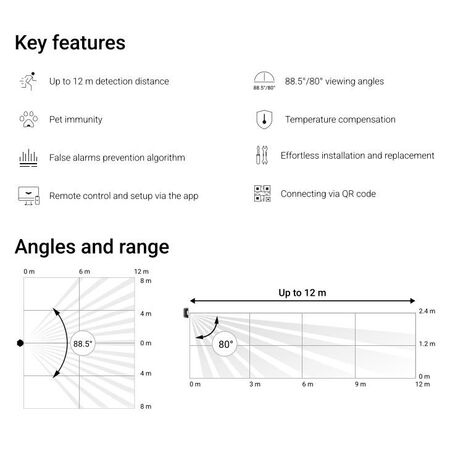

Key Features
- Wireless indoor IR motion detector with up to 12 m detection distance
- Pet immunity for animals up to 20 kg and 50 cm height
- False alarms prevention with SmartDetect Software algorithm
- Remote control and setup via mobile app
- Wide viewing angles: 88.5° horizontal and 80° vertical
- Temperature compensation for effective detection from −10 °C to +40 °C
- Effortless installation and replacement with QR code connection
Professional Installation Requirements
- Professional installation is recommended to ensure optimal placement and integration with security systems.
Applications
- Indoor security for residential homes
- Commercial office and retail security
- Pet-friendly motion detection environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with EN 50131 (Grade 2)
- Complies with PD 6662:2017
Environmental Benefits
- Long battery life up to 5 years reduces battery waste
- Wireless design minimizes installation impact and material use
Warranty Information
24 months warranty provided by the manufacturer.
Available Now
The AJAX MOTIONPROTECT Wireless PIR Motion Detector White is available for immediate purchase, ideal for enhancing indoor security in residential and commercial settings.
