Wireless PIR Motion Sensor | 12m Detection Distance | Pet Immune | SmartDetect Algorithm | by Dicker Data

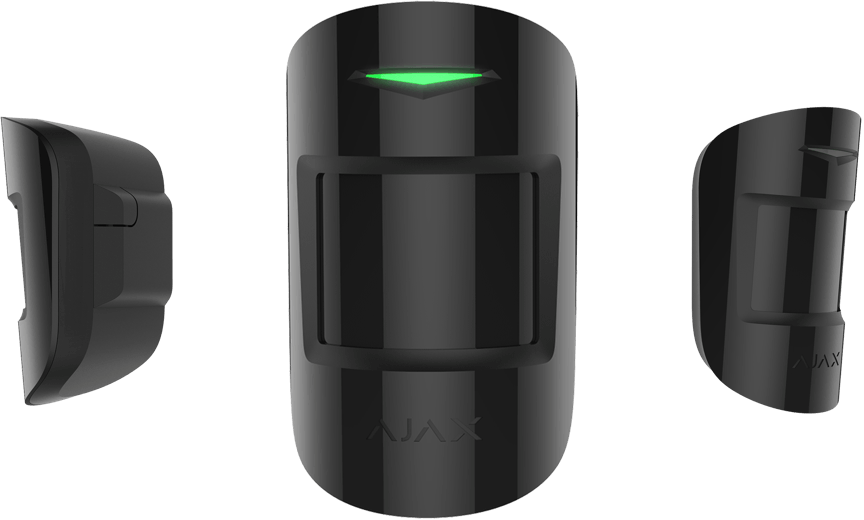

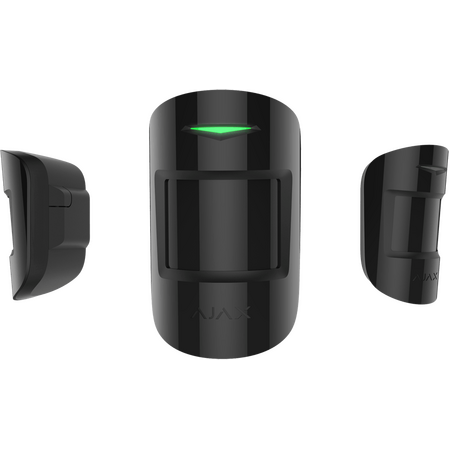

The AJAX MOTIONPROTECT Wireless PIR Motion Sensor is designed for reliable indoor security, featuring a detection distance of up to 12 meters and pet immunity for animals weighing up to 20 kg. With SmartDetect technology to prevent false alarms, this sensor is perfect for both residential and commercial applications, ensuring peace of mind with remote monitoring capabilities via a mobile app.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wireless PIR Motion Sensor | 12m Detection Distance | Pet Immune | SmartDetect Algorithm | by Dicker Data
Brand: Dicker Data
SKU: 30654.09.BL3
Alternatively Known As: Wireless PIR Motion Sensor, Indoor Motion Detector, Pet Immune Motion Sensor, AJAX Motion Detector
Technical Specifications
- Sensitive element: PIR sensor
- Motion detection distance: up to 12 m (installed at 2.4 m height)
- Motion detection angle: horizontal 88.5°
- Motion detection speed: 0.3 to 2 m/s
- Sensitivity: 3 levels
- Pet immunity: weight up to 20 kg, height up to 50 cm
- False alarm prevention: SmartDetect Software algorithm
- Temperature compensation: effective from −10 °C to +40 °C
- Wireless communication range: up to 1700 m
- Battery: 1 × CR123A
- Calculated battery life: up to 5 years
- Operating temperature range: −10 °C to +40 °C
- Operating humidity: up to 75%
- Protection class: IP50
- Weight: 86 g
- Dimensions (H x L x W): 50mm x 110mm x 65mm
- Weight: 0.086 kg
Key Features
- Wireless indoor IR motion detector with up to 12 m detection distance
- Pet immunity for animals weighing up to 20 kg and up to 50 cm in height
- False alarm prevention with SmartDetect Software algorithm
- Remote control and setup via mobile app with QR code connection
- Temperature compensation for effective detection from −10 °C to +40 °C

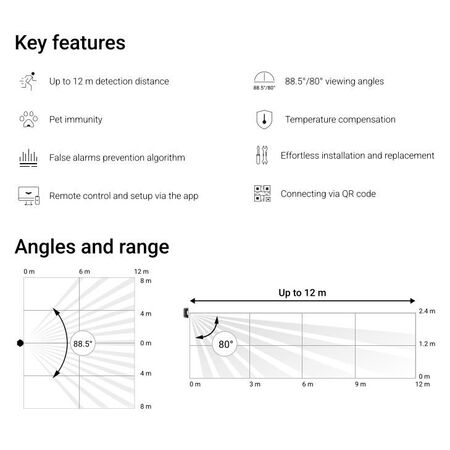

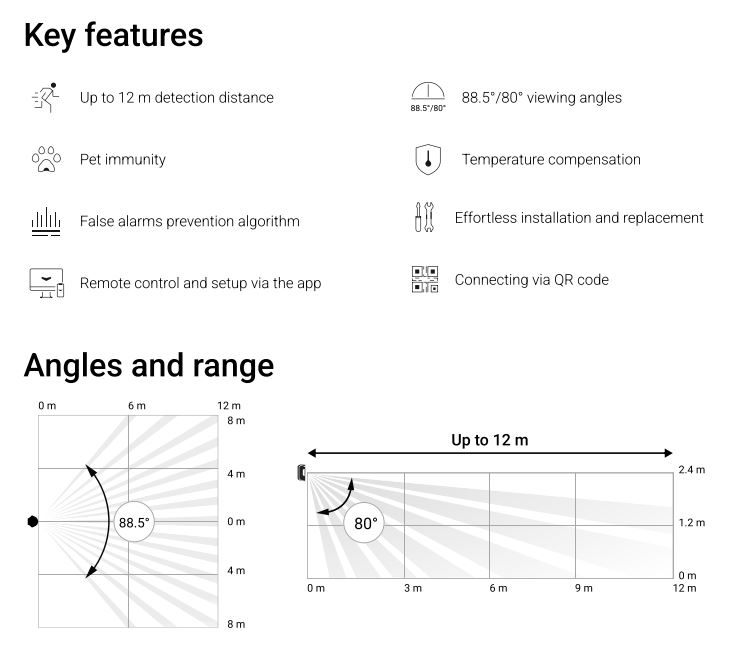

- Wide viewing angles: horizontal 88.5°, vertical 80°
- Long wireless communication range up to 1700 m
- Battery life up to 5 years using 1 × CR123A battery
- Effortless installation and replacement
Professional Installation Requirements
- Professional installation by a qualified security system technician is recommended to ensure optimal placement and system integration.
Applications
- Indoor security motion detection for residential and commercial properties
- Pet-friendly motion detection areas with pets up to 20 kg and 50 cm height
- Remote monitoring and control via mobile app
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with EN 50131 (Grade 2) and PD 6662:2017 security standards
Environmental Benefits
- Long battery life reduces battery waste and replacement frequency
- Wireless design minimizes installation impact and material use
Warranty Information
24 months warranty provided by the manufacturer.
Available Now
The AJAX MOTIONPROTECT Wireless PIR Motion Detector Black is available for immediate purchase, ideal for enhancing indoor security in residential and commercial settings.
