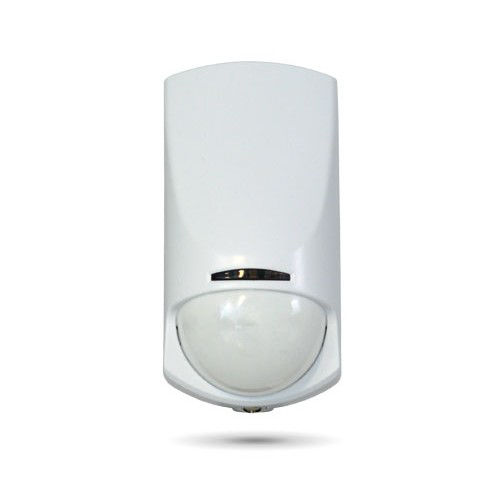

Wireless PIR Motion Sensor 12m Range 100 Degree Digital Signal Ness
Ness wireless PIR motion sensor features a 12m range, 100 Degree detection and digital signal. Ideal for wireless alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness XLine Wireless PIR, Air2 Wireless Infrared Detector, Wireless Intruder Alarm Motion Sensor
Technical Specifications
- Detection Technology: Digital dual-element passive infrared (PIR)
- Detection Range: 12 m
- Detection Angle: 100°
- Wireless Communication: Two-way Air2 communication
- Operating Frequency: 868.6 MHz
- Modulation: GFSK
- Battery: CR17450 lithium, 3 V, included
- Battery Life: Approximately 3 years
- Standby Current: 20 µA
- Maximum Current: 30 mA
- Alarm Pulse Count: Programmable from 1 to 4
- Operating Temperature: -10°C to +55°C
- Operating Humidity: Up to 93% RH
- Installation: Indoor wall mount at approximately 2.2 m
- Manufacturer Certifications: EN 50131-2-2 Grade 2 and EN 50130-5 Class II
- Dimensions (H x L x W): 120mm x 44mm x 60mm
- Weight: 0.1 kg
Key Features
- 12 m volumetric PIR detection coverage
- 100° detection angle
- Digital signal processing for motion detection and false-alarm resistance
- Programmable sensitivity and pulse count
- Automatic temperature compensation
- Bypassable alarm LED
- Anti-opening and anti-dislodgement tamper protection
- Two-way wireless supervision through the Air2 system
- Suitable for residential, commercial and institutional indoor alarm applications
Professional Installation Requirements
- Installation, wireless enrolment and commissioning should be performed by a suitably qualified security-alarm technician in accordance with the manufacturer’s instructions and applicable requirements of AS/NZS 2201.1. The detector must be enrolled with a compatible Air2 transceiver and control panel.
Applications
- Residential intruder alarm systems
- Commercial security alarm systems
- Institutional and office security installations
- Indoor perimeter and room motion detection
- Wireless alarm system upgrades and extensions
Standards & Compliance
- AS/NZS 2201.1:2007 is relevant to the design, installation, commissioning and maintenance of intruder alarm systems using wire-free links; product-specific Australian compliance was not independently verified. ([codehub.building.govt.nz](https://codehub.building.govt.nz/assets/_generated_pdfs/2201-12007asnzs-11754.pdf?utm_source=openai))
Environmental Benefits
- Low standby current of approximately 20 µA helps minimise battery consumption during normal operation.
- Approximately three-year battery life can reduce battery replacement frequency and associated waste.
- Battery-powered operation avoids continuous mains electricity consumption at the detector.
Warranty Information
Ness Corporation’s general warranty provides three years from the date of purchase for Ness-manufactured or supplied products, unless otherwise specified. ([ness.com.au](https://ness.com.au/product-warranty?utm_source=openai))
Available Now
Available through Ness Corporation and authorised Australian security-equipment distributors; confirm current stock and compatibility before ordering.
