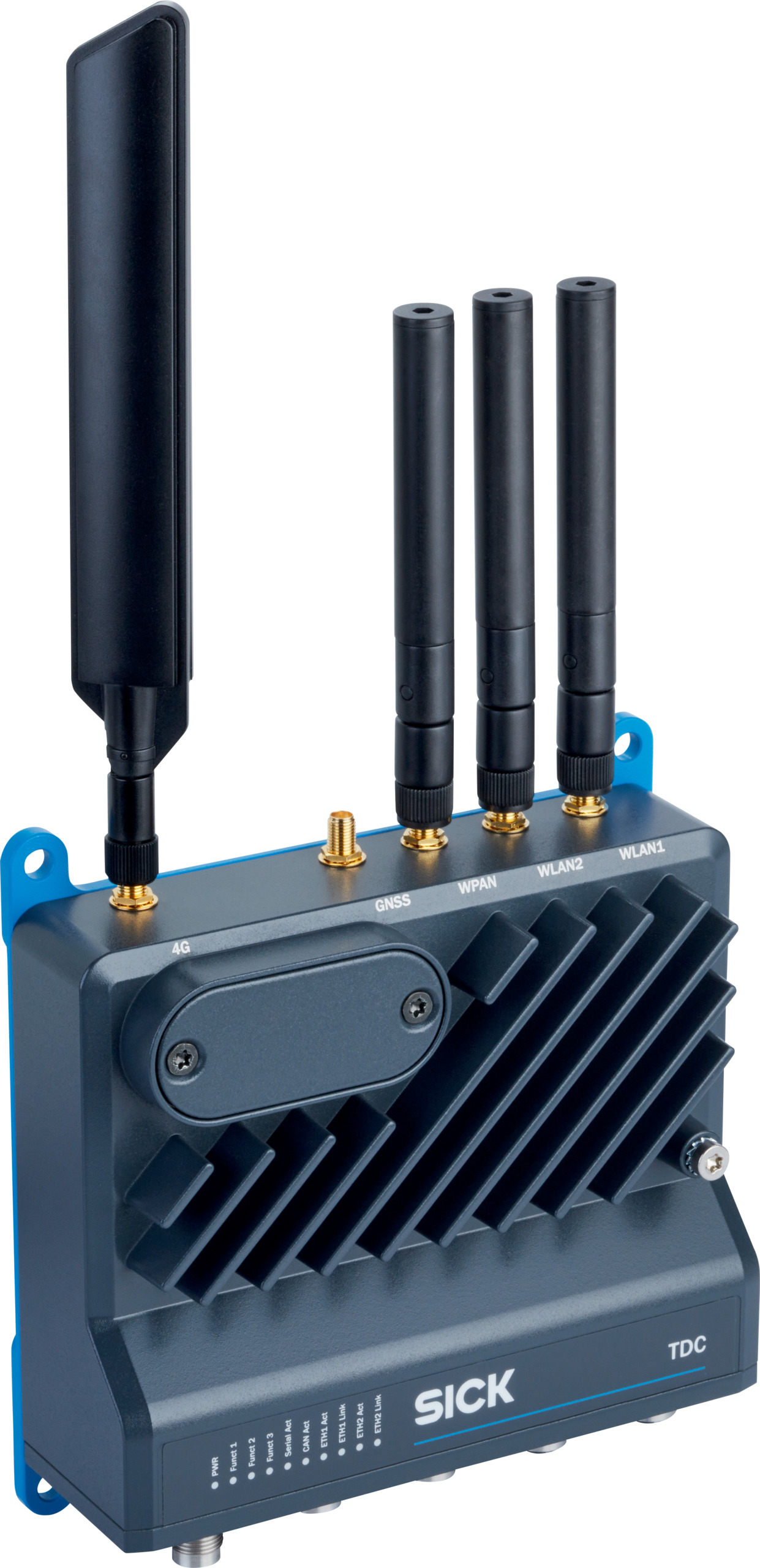

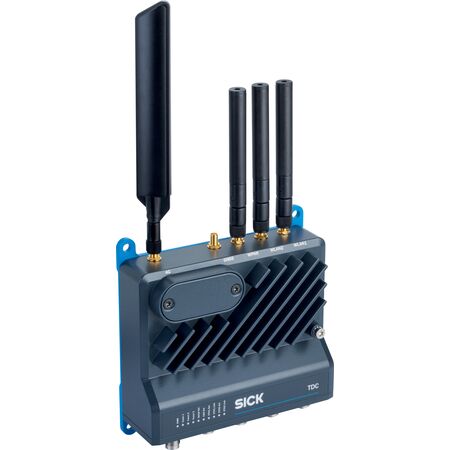

Wireless Programmable Controller TDC-X401GL | IMU Sensors | 4GB RAM | IP65/67 Protection | by SICK
The TDC-X401GL wireless programmable controller is designed for industrial automation, featuring integrated IMU sensors, 4GB RAM, and 32GB internal memory. With robust connectivity options including 4G/5G, WLAN, and LAN, it excels in wireless machine control and monitoring applications, ensuring reliable data communication in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 9 V DC to 32 V DC
- Power consumption: Typical 10 W, maximum 75 W
- Sensors: IMU with 3-axis accelerometer, 3-axis gyroscope, 3-axis magnetometer, 2 temperature sensors
- Internal computer: 4GB LP-DDR4 RAM, i.MX8 quad-core Arm Cortex-A53 1600 MHz, Cortex-M7 800 MHz co-processor
- Internal memory: 32 GB
- Operating system: Linux with Docker ecosystem
- Data protocols: MQTT, REST API, WebSocket; Data format: JSON
- Connectivity: 4G/5G mobile, WLAN, WPAN, LAN
- Interfaces: Ethernet (2x 10/100/1000 Mbit/s), CAN bus, Serial, IO-Link (4 ports), USB, GNSS, Modem, WLAN, WPAN
- Protection class: IP65/67
- Shock and vibration resistance: IEC 60068-2 series
- Electromagnetic compatibility: EN 301 489 series, EN 61000-6-2:2019
- Operating temperature: -25 °C to +60 °C
- Storage temperature: -40 °C to +85 °C
- Relative humidity: < 90%, non-condensing
- Altitude: < 2,000 m
- Dimensions (H x L x W): 55mm x 160mm x 160mm
- Weight: 1.18 kg
Key Features
- Programmable wireless machine with integrated IMU sensors (3-axis accelerometer, gyroscope, magnetometer)
- Internal computer with 4GB LP-DDR4 and i.MX8 quad-core Arm Cortex-A53 1600 MHz plus Cortex-M7 800 MHz co-processor
- 32 GB internal memory with Linux operating system and Docker ecosystem
- Supports multiple data protocols including MQTT, REST API, and WebSocket with JSON data format
- Connectivity options include 4G/5G mobile communication, WLAN, WPAN, LAN
- Multiple interfaces: Ethernet (2 ports), CAN bus, Serial, IO-Link (4 ports), USB, GNSS, Modem, WLAN, WPAN
- Robust housing made of aluminum with IP65/67 protection class
- Shock and vibration resistant compliant with IEC standards
- Optical indicators with 7 status and 3 configurable indicators
- Configurable analog/digital inputs and digital inputs/outputs
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial wireless systems and network protocols.
Applications
- Programmable base device for industrial automation
- Wireless machine control and monitoring
- Data communication in industrial environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables wireless communication reducing the need for extensive cabling and associated material waste
- Supports energy-efficient operation with low power consumption typical at 10 W
- Durable aluminum housing extends product life and reduces replacement frequency
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK TDC-X401GL programmable wireless machine is available for immediate purchase, ideal for industrial automation and wireless machine control applications.
