Wireless Push Button with Receiver | 10 Colored Caps | Metal Ø22 | 24-240V by Clipsal
Wireless push button with 10 colored caps and metal Ø22 design—ideal for industrial remote control. Built for durability and customization, with batteryless operation and Zigbee communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

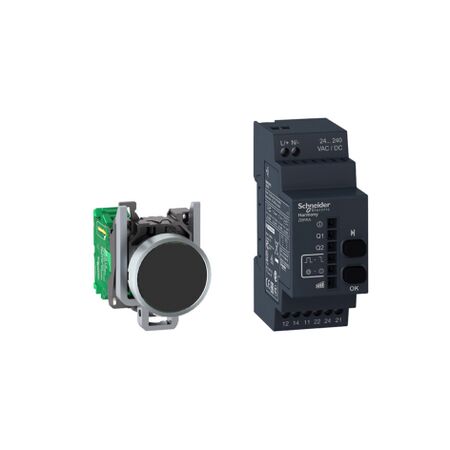

Product Name/Title: Harmony XB5R, Wireless push-button and configurable receiver with 10 colored caps, metal, Ø22, 24...240 V AC/DC
Brand: Clipsal
SKU: XB4RFA02
Alternatively Known As: Wireless Push Button, Batteryless Push Button, Harmony XB5R Receiver
Technical Specifications
- Rated supply voltage: 24...240 V AC/DC 50/60 Hz
- Transmission frequency: 2405 MHz
- Control type: wireless and batteryless push-button Ø 22 mm
- Communication port protocol: Zigbee conforming to IEEE 802.15.4
- Number of channels: 1
- Max power consumption: 1 mW
- Modulation technique: O-QPSK
- Antenna type: omnidirectional
- Type of receiver: programmable receiver (2 relays)
- Dimensions (H x L x W): 22mm x 22mm x 22mm
- Weight: 0.25 kg
Key Features
- Wireless and batteryless operation.
- Includes 10 colored caps for customization.
- Metal bezel for durability.
- Easily installed into standard 22mm diameter panel cut-outs.
- DIN rail mountable receiver.
Professional Installation Requirements
- Professional installation is recommended for optimal performance.
Applications
- Industrial: Remote control of machines, conveyors, and cranes.
Standards & Compliance
- Complies with IEC 60947-1 and IEC 60947-5-1 for safety and performance standards.
Environmental Benefits
- Packaging made with recycled cardboard.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB5R Wireless Push-Button and Receiver is available now for immediate purchase. Ideal for industrial applications requiring reliable remote control.
