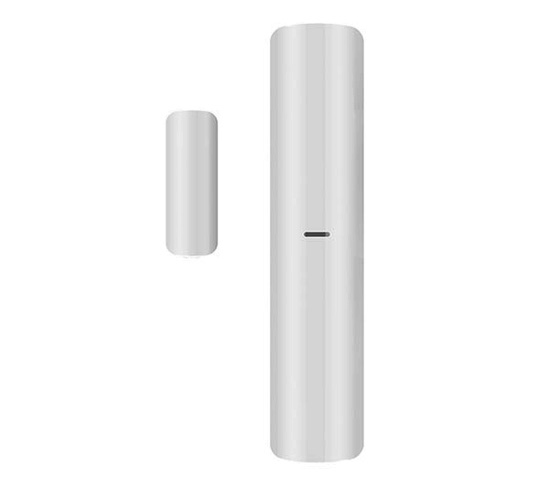

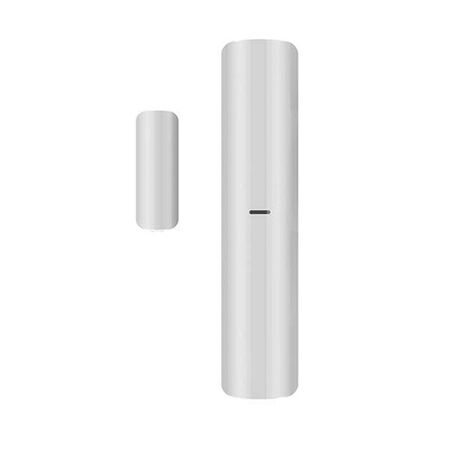

Wireless Reed and Shock Detector AX PRO Hikvision
Hikvision AX PRO wireless detector combines reed contact and shock detection. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-PDMCK-EG2-WB, Wireless Magnetic Contact with Shock and Tilt Detection, AX PRO Wireless Reed and Shock Detector
Technical Specifications
- Model: DS-PDMCK-EG2-WB
- Detection Method: Opening contact, shock sensor and tilt detection
- Detection Gap: Up to 43 mm
- Shock Sensitivity: High, normal and low settings
- Tilt Detection: Up to 25°
- External Inputs: 2 wired inputs
- Alarm Input: Normally open, normally closed and impulse count
- Wireless Technology: Hikvision Tri-X two-way RF wireless
- Transmission Frequency: 433 MHz
- Wireless Range: Up to 1 km in open space
- Wireless Security: AES-128 encryption with frequency hopping
- Power Supply: 1 x CR123A 3 V lithium battery
- Battery Life: Up to 3 years under typical use
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10% to 90% RH
- Installation Environment: Indoor
- LED Indicators: Green for magnetic contact, orange for tilt, red for shock and blue for alarm
- Tamper Protection: Front and rear tamper detection
- Dimensions (H x L x W): 103mm x 23.2mm x 22.5mm
- Weight: 0.1 kg
Key Features
- Combines reed contact, shock and tilt detection in one wireless detector
- Designed for monitoring doors, windows and other access points
- Configurable shock sensitivity with digital processing
- Supports two wired external inputs
- Two-way Tri-X wireless communication with AES-128 encryption
- Frequency hopping helps resist wireless interference and jamming
- Power-up, remote ID and QR-code enrolment methods
- Remote configuration through the AX PRO platform
Professional Installation Requirements
- Installation and commissioning should be performed by a suitably qualified security installer, with the detector enrolled to a compatible Hikvision AX PRO control panel and installed in accordance with the manufacturer's instructions and applicable Australian requirements.
Applications
- Door and window intrusion detection
- Protection of commercial premises, offices and retail spaces
- Residential alarm systems
- Monitoring access points where shock or forced-entry detection is required
- Integration with Hikvision AX PRO wireless intrusion alarm systems
Standards & Compliance
- Relevant system installation framework: AS/NZS 2201.1:2007, Intruder alarm systems — Client's premises — Design, installation, commissioning and maintenance
- Relevant detection-device reference: AS 2201.3-1991, Intruder alarm systems — Detection devices for internal use; verify current project and certification requirements before specification
Environmental Benefits
- Up to three years of operation from one replaceable CR123A battery, reducing servicing frequency and associated transport
- Low-power wireless operation avoids the need for additional signal cabling and its associated installation materials
- Durable, configurable detector design can extend service life and reduce replacement waste
- Replaceable battery design allows the detector to remain in service without replacing the complete unit
Warranty Information
Hikvision AX PRO alarm products are commonly supplied in Australia with a 3-year manufacturer warranty, subject to purchase through an authorised Australian distribution channel and the applicable Hikvision warranty terms.
Available Now
Available through Hikvision and authorised Australian security, alarm and electronic-security distributors.
