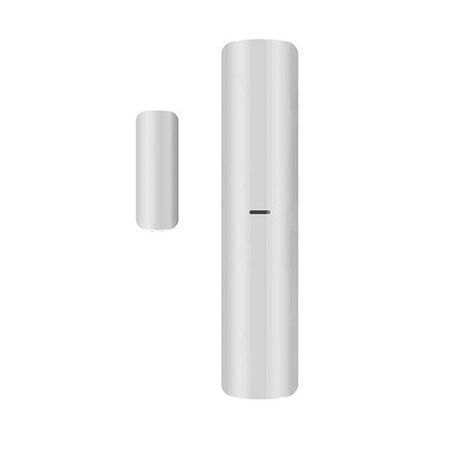

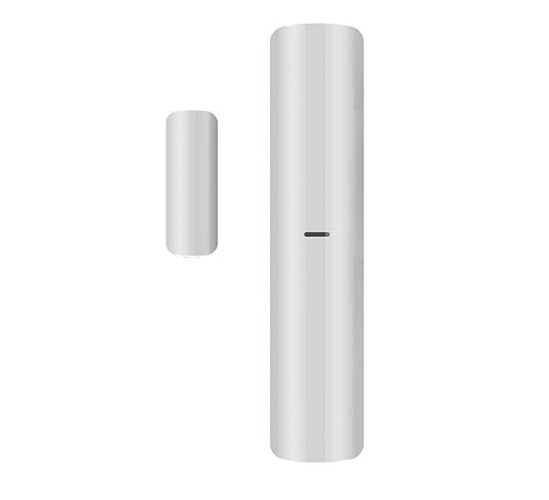

Wireless Reed Switch AX PRO Hikvision
Hikvision AX PRO wireless reed switch for door and window contact detection. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision AX PRO Wireless Reed Switch, Wireless Door Contact, Wireless Window Contact, Magnetic Door and Window Detector
Technical Specifications
- Detection Method: Opening contact
- Detection Gap: Up to 43 mm
- Wireless Technology: Tri-X two-way RF wireless
- Transmission Frequency: 433 MHz
- Wireless Range: Up to 1.2 km in free space
- Wireless Security: AES-128 encryption with frequency hopping
- Alarm Input: Normally closed, normally open and impulse count
- Tamper Protection: Front and rear
- Battery: 1 x CR123A, 3 V
- Battery Life: Up to 5 years in standby use
- Enrolment Methods: Power-up, remote ID and QR code
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10% to 90% non-condensing
- Main Detector Dimensions: 24 mm W x 104 mm H x 24.4 mm D
- Magnetic Component Dimensions: 13 mm W x 34.4 mm H x 11.4 mm D
- Application Environment: Indoor
- Dimensions (H x L x W): 104mm x 24.4mm x 24mm
- Weight: 0.1 kg
Key Features
- Wireless reed-switch contact for door and window opening detection
- Compatible with Hikvision AX PRO wireless intrusion alarm systems
- Tri-X two-way wireless communication with AES-128 encryption
- Up to 43 mm maximum detection gap
- Front and rear tamper protection
- Blue alarm status indicator
- Supports normally open, normally closed and impulse-count alarm inputs
- Power-up, remote ID and QR-code enrolment
- Surface-mount installation using screws or adhesive backing
Professional Installation Requirements
- Installation and enrolment should be completed by a suitably qualified security alarm installer. Position the detector and magnet in alignment according to the manufacturer’s installation instructions and verify wireless signal strength before commissioning.
Applications
- Indoor residential door and window monitoring
- Commercial premises intrusion alarm systems
- Retail, office and warehouse security systems
- Perimeter protection for doors, windows, cabinets and access panels
- Additional wireless zones for Hikvision AX PRO alarm panels
Standards & Compliance
- Applicable to intruder alarm system installations designed, installed and maintained in accordance with AS/NZS 2201.1:2007; product-specific Australian certification was not confirmed from the available manufacturer documentation.
- Wireless operation is subject to applicable ACMA radiocommunications requirements in Australia.
Environmental Benefits
- Up to five-year standby battery life can reduce battery replacement frequency and associated consumable waste.
- Low-power wireless operation avoids the need for additional signal cabling during retrofit installations.
- Replaceable CR123A battery supports serviceability and can extend the useful life of the detector.
- Long-term electronic component use can reduce replacement frequency when installed and maintained correctly.
Warranty Information
Warranty terms vary by sales channel and region. Hikvision’s published five-year premium project warranty does not list AX PRO magnetic contacts; confirm the applicable warranty period with the authorised Australian distributor at purchase.
Available Now
Available through Hikvision and authorised Australian security-system distributors, subject to regional model and frequency compatibility.
