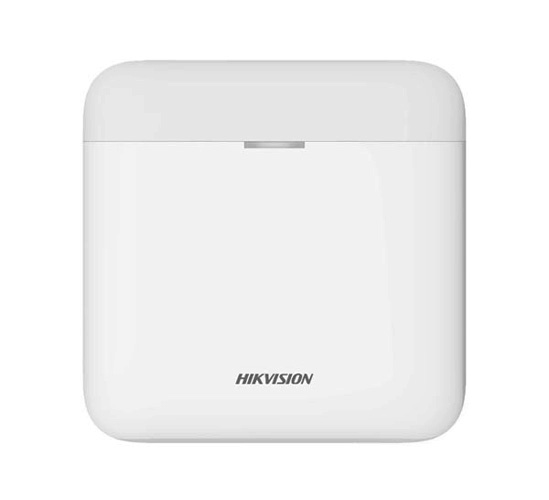

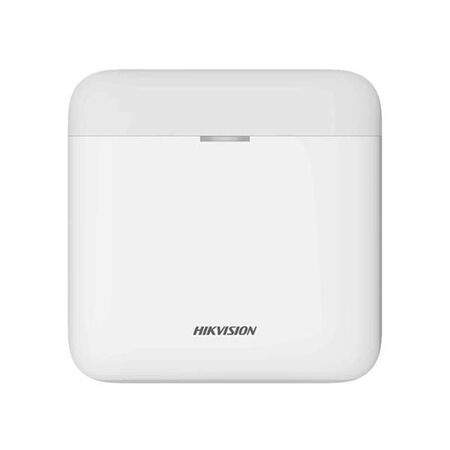

Wireless Repeater AX PRO Hikvision
Hikvision AX PRO wireless repeater for extending device signal range. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: AX PRO Wireless Repeater, Hikvision Alarm Range Extender, DS-PR1-WB RF Repeater
Technical Specifications
- Wireless Protocol: Tri-X and Cam-X
- RF Frequency: 433 MHz
- Wireless Communication: Two-way communication with AES-128 encryption
- RF Modulation: 2GFSK
- Wireless Range: Up to 800 m in open areas
- Power Supply: 100–240 VAC
- Backup Battery: Built-in lithium battery
- Backup Duration: Up to 35 hours under normal conditions
- Operating Temperature: -10°C to +55°C
- Operating Humidity: 10% to 90% relative humidity, non-condensing
- Installation Method: Wall mounting
- Tamper Protection: Front and rear tamper detection
- Pairing: Automatic pairing supported
- PIRCAM Pairing: Supported
- Status Indication: Registration/signal, power and fault LEDs
- Dimensions (H x L x W): 150mm x 150mm x 25mm
- Weight: 0.372 kg
Key Features
- Extends the wireless communication range of Hikvision AX PRO alarm devices
- Supports stable two-way wireless communication
- Tri-X and Cam-X wireless protocol compatibility
- Automatic pairing for simplified deployment
- Supports connection of up to eight PIRCAM or smoke detectors for range extension
- Built-in rechargeable battery provides communication continuity during mains failure
- Front and rear tamper protection
- LED indicators provide registration, signal, power and fault status
- Designed for wall-mounted installation
Professional Installation Requirements
- Installation should be performed by a suitably qualified security installer. Connection to the 100–240 VAC supply and integration with an intruder alarm system should comply with applicable Australian electrical and security-system requirements, including AS/NZS 2201.1 where applicable.
Applications
- Extending wireless coverage in Hikvision AX PRO intruder alarm systems
- Residential alarm installations
- Small commercial premises and offices
- Retail and light-industrial security systems
- Large buildings where wireless detectors are beyond the control panel's reliable RF range
- Improving communication reliability for AX PRO PIRCAM and smoke detectors
Standards & Compliance
- AS/NZS 4268:2017 with Amendment 1:2021 is the relevant short-range radio equipment standard referenced by ACMA for applicable wireless devices; confirm the model-specific RCM documentation before supply.
- AS/NZS 2201.1:2007 is applicable to the design, installation, commissioning and maintenance of wire-free intruder alarm systems; it is an installation/system standard rather than a product certification claim.
Environmental Benefits
- Built-in rechargeable battery reduces the need for disposable replacement batteries during mains interruptions
- Reusable electronic construction supports extended service life and reduces replacement waste
- Low-power wireless operation helps minimise energy use during normal standby operation
Warranty Information
Warranty is subject to Hikvision Australia and the authorised distributor's applicable terms. Australian security distributors commonly list a 3-year warranty for Hikvision AX PRO alarm products; confirm coverage for the DS-PR1-WB at purchase.
Available Now
Available through Hikvision Australia and authorised Australian security distributors, subject to regional stock and distributor supply.
