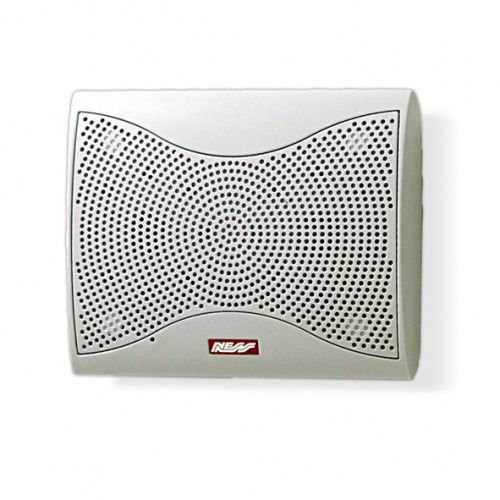

Wireless Satellite Radio Siren 304MHz Backup Battery Ness
Ness wireless satellite radio siren features 304MHz radio, backup battery and external outputs. Ideal for wireless alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness RSS Radio Satellite, Ness Wireless Satellite Siren, Ness 106-081 Satellite Siren
Technical Specifications
- Model: RSS Radio Satellite
- Part Number: 106-081
- Radio Frequency: 303.85MHz nominal 304MHz
- Radio Compatibility: Ness radio transmitters, keys, PIRs, reed switches and smoke detectors
- Programmable Devices: Up to 8 radio devices
- Power Supply: 17VAC, 300mA plug pack
- Internal Siren: Twin piezo, 116dB
- Siren Duration: 5 minutes
- Backup Battery: 12V 0.8Ah sealed lead-acid battery
- Battery Testing: Dynamic test hourly and on receipt of a radio message
- External Siren Output: One 4-ohm or two 8-ohm horn speakers maximum
- External Strobe Output: One mini strobe light maximum
- Strobe Duration: 11 hours, or 1 hour when mains power is unavailable
- Tamper Protection: Front and rear cover tamper with external tamper input
- External Tamper Input: 2k2 end-of-line resistor
- Housing Material: Security-grade moulded plastic
- Dimensions (H x L x W): 141mm x 114mm x 45mm
- Weight: 0.9 kg
Key Features
- Wireless triggering from compatible Ness alarm panels and radio devices
- Integrated 116dB internal alarm and fire siren tones
- Backup battery provides operation during mains failure
- External siren and strobe outputs for remote warning devices
- Hardwired tamper input for external siren installations
- Supports up to eight programmed radio devices
- Internal and optional external antenna arrangements
- Hourly battery condition testing with low-battery indication
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or alarm technician. Mains-powered connection, battery connection, tamper wiring and external siren or strobe wiring should be completed in accordance with AS/NZS 2201.1 and applicable electrical requirements.
Applications
- Wireless extension siren for Ness alarm systems
- Wireless indoor alarm warning siren
- Alarm systems requiring a battery-backed satellite siren
- Installations with remote external horn speaker and strobe light
- Commercial, residential and light industrial security systems
- Wireless warning, evacuation and machinery-alert applications
Standards & Compliance
- AS/NZS 2201.1:2007 for the design, installation, commissioning and maintenance of intruder alarm systems, including wire-free systems
Environmental Benefits
- RoHS compliance supports reduced use of restricted hazardous substances in the electronic assembly
- Replaceable sealed lead-acid backup battery supports maintenance and product service life
- Battery-backed operation helps maintain alarm functionality during power interruptions
- Durable electronic construction can reduce replacement frequency and associated waste
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness warranty terms and exclusions.
Available Now
Available through Ness and authorised Australian security distributors, subject to current product range and distributor stock.
