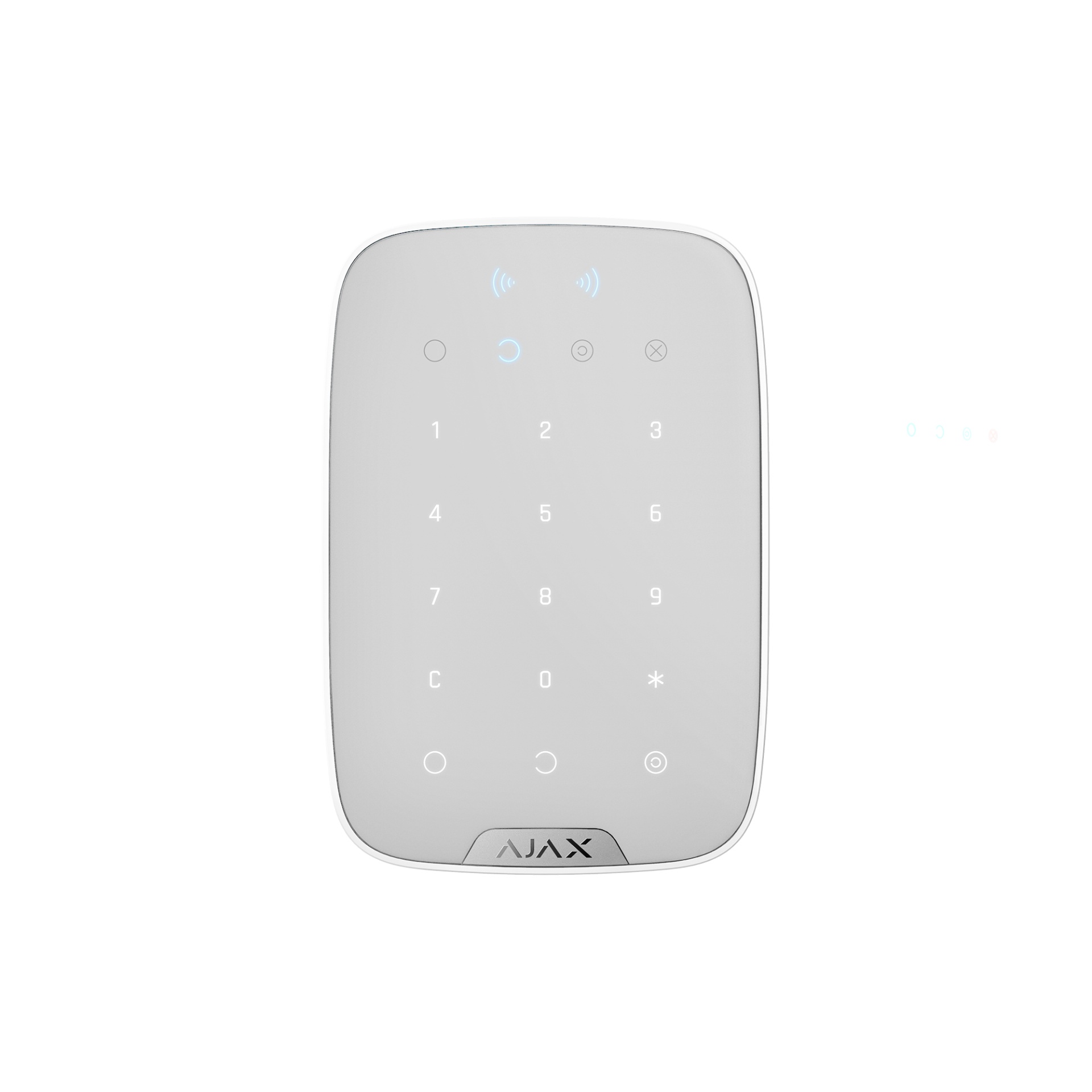

Wireless Security Keypad AJAX KeyPad Plus | Touch Sensitive | DESFire Technology | Up to 200 Codes | by Dicker Data

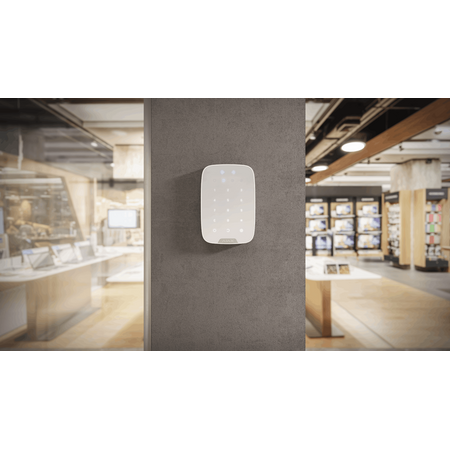

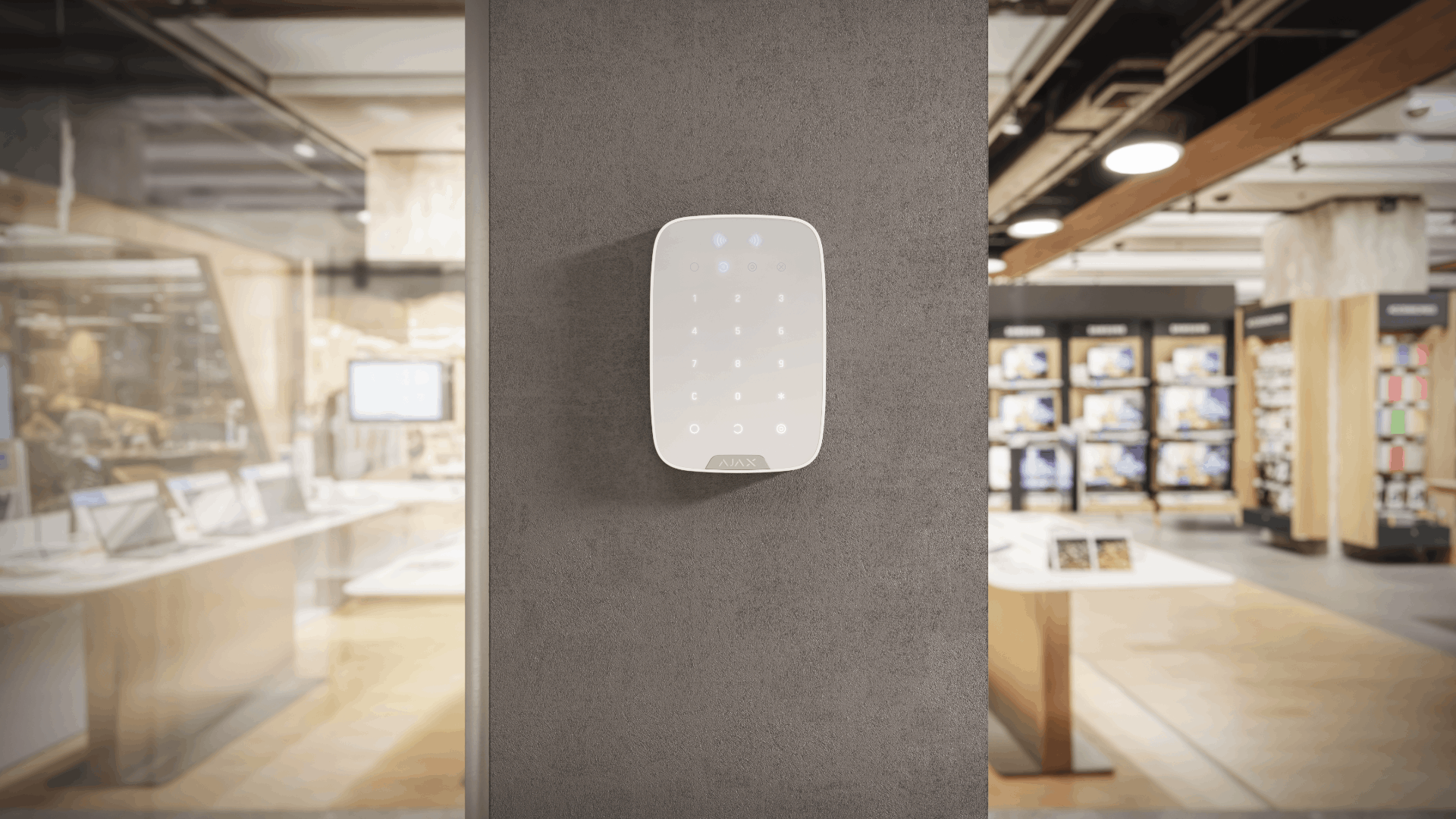

The AJAX KeyPad Plus Wireless is a touch-sensitive security keypad designed for seamless access control in residential and commercial settings. With advanced DESFire technology, it supports up to 200 personal codes and features sabotage protection, ensuring robust security management. Ideal for integration with Ajax control panels, this keypad offers user-friendly operation and instant access blocking via the Ajax app.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wireless Security Keypad AJAX KeyPad Plus | Touch Sensitive | DESFire Technology | Up to 200 Codes | by Dicker Data
Brand: Dicker Data
SKU: 30646.83.WH3
Alternatively Known As: Wireless Security Keypad, Ajax KeyPad Plus, DESFire Access Control Keypad, Touch Sensitive Security Keypad
Technical Specifications
- Sensor Type: Capacitive touch
- Control Methods: Codes, Pass codes, Tag key fobs
- Access Technology: DESFire® EV1, EV2 based on ISO 14443 with 128-bit encryption and copy protection
- Maximum Personal Codes: Up to 200 (one per user, dependent on hub model)
- Keypad Codes: One code per KeyPad
- Duress Codes: Up to 200 personal codes (one per user, dependent on hub model)
- Keypad Duress Codes: One code per KeyPad
- Codes for Unregistered People: Up to 99 personal codes (dependent on hub model)
- Sabotage Protection: Locks keypad for 3–180 minutes after 3 incorrect code attempts within 1 minute
- Communication Range: Up to 1,700 meters
- Battery: 4 x AA
- Calculated Battery Life: Up to 2 years
- Operating Temperature Range: -10°C to +40°C
- Operating Humidity: Up to 75%
- Dimensions (H x L x W): 165mm x 20mm x 113mm
- Weight: 0.267 kg
Key Features
- Combination of design, advanced encryption technology, and user-friendly security management
- Arm and disarm Ajax systems, activate Night Mode, and manage specific groups with Pass card or Tag key fob

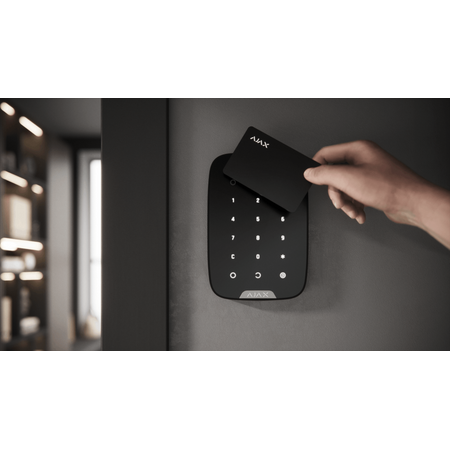

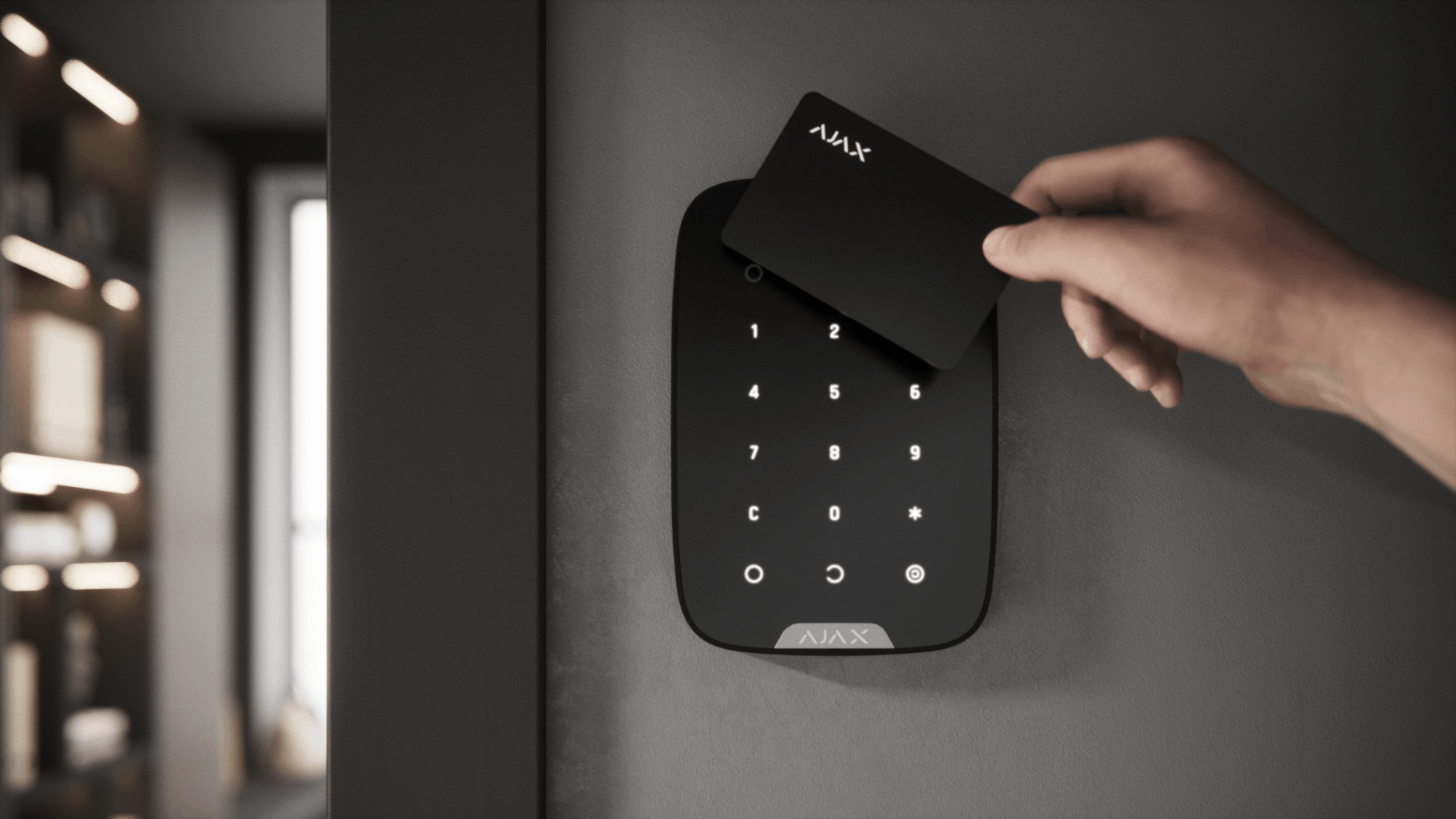

- Pass/Tag reader with DESFire® technology for secure contactless user identification

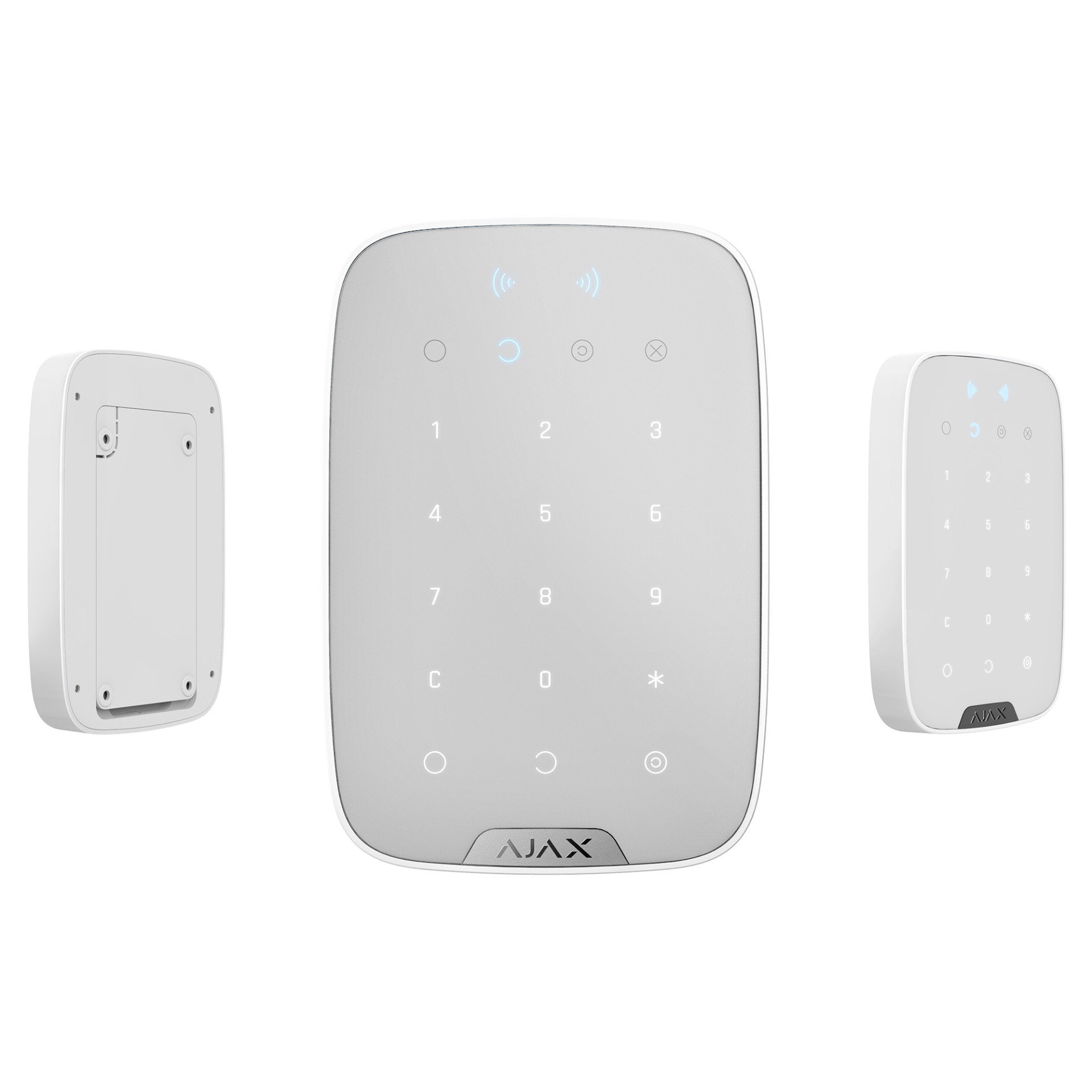

- Touch-sensitive capacitive keypad
- Security mode indicators with adjustable volume and backlight brightness
- Supports up to 200 Tags or Passes for user access control
- Personal passcodes with event log and username display

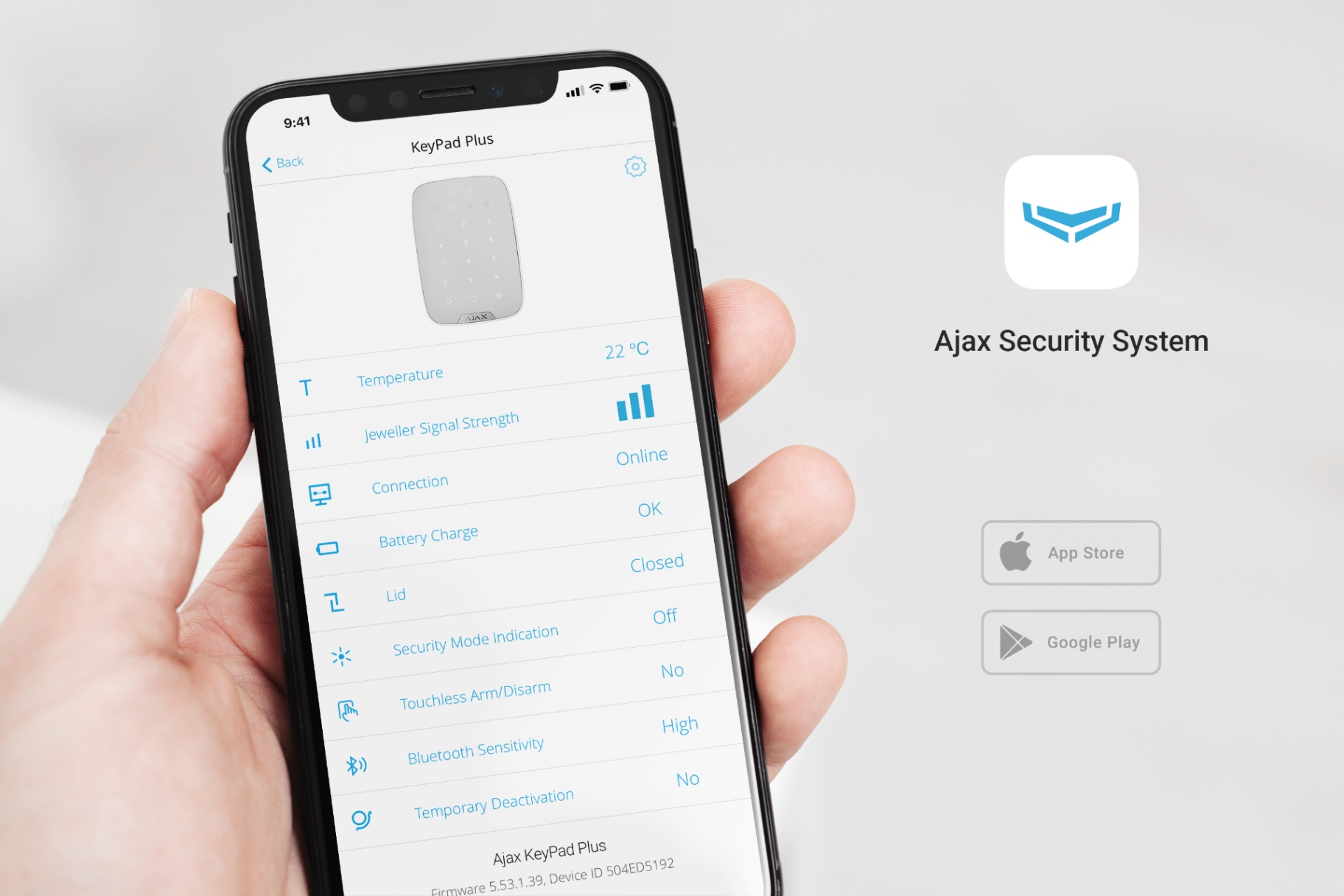

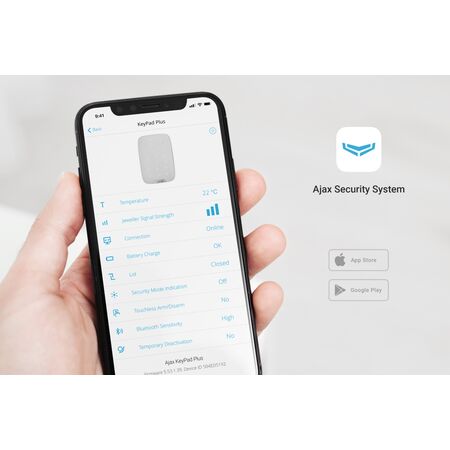

- Instant blocking of access via Ajax app
- Silent alarm transmission with duress code feature
- Protection against code guessing with keypad lockout after multiple incorrect attempts

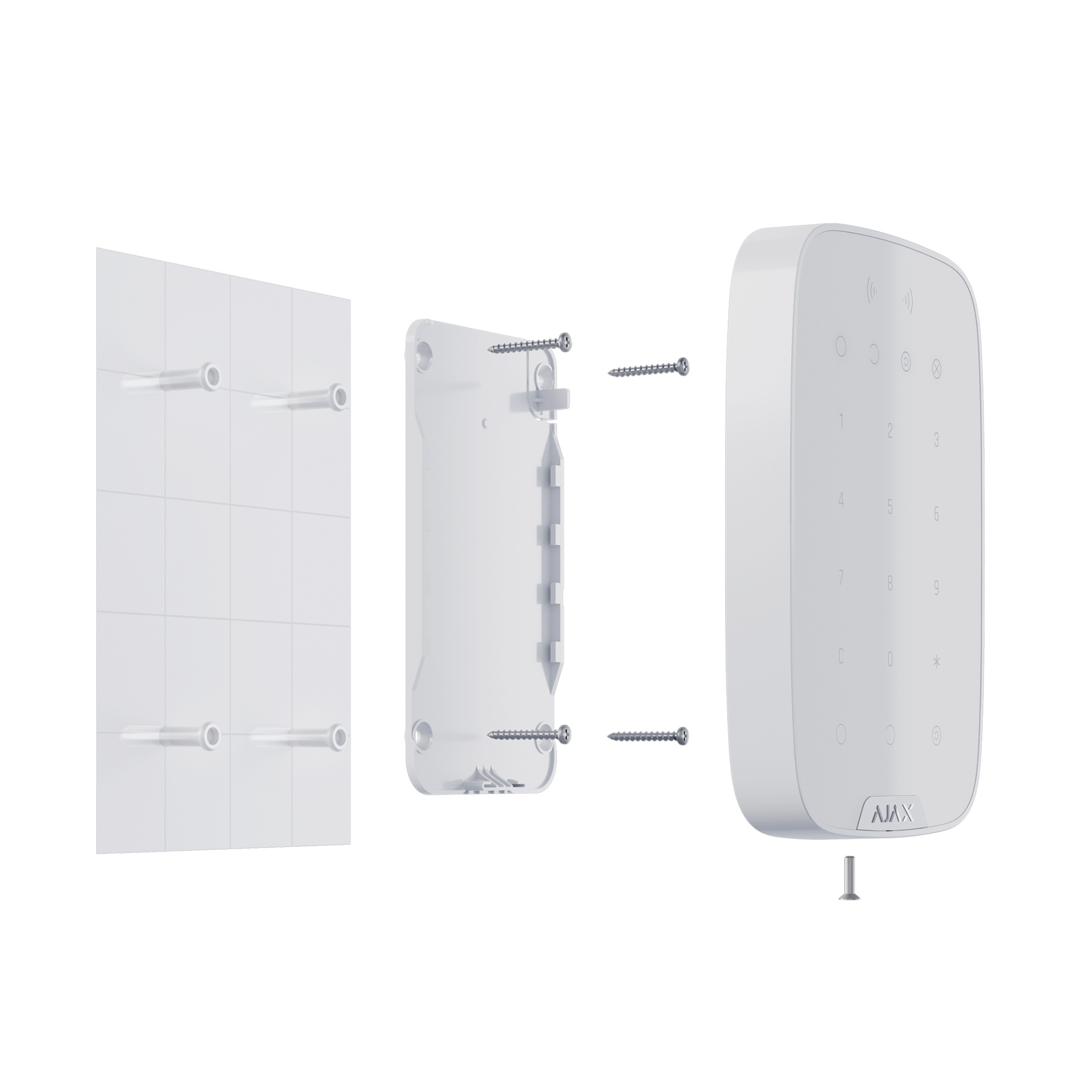

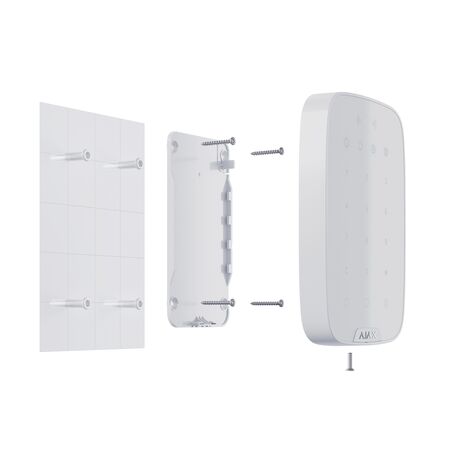

Professional Installation Requirements
- Professional installation by a qualified security system technician or electrician is recommended to ensure proper integration with Ajax control panels and optimal security performance.
Applications
- Residential security systems
- Commercial security management
- Access control for offices and restricted areas
- Integration with Ajax Hub Plus, Hub 2, and Hub 2 Plus control panels
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long battery life of up to 2 years reduces battery waste
- Wireless design minimizes installation impact and material use
Warranty Information
24 months warranty.
Available Now
AJAX KEYPAD PLUS WIRELESS WHITE is available for immediate purchase, ideal for residential and commercial security access control applications.
