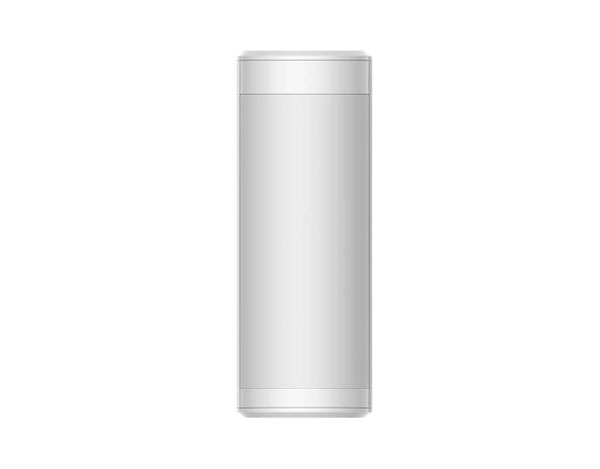

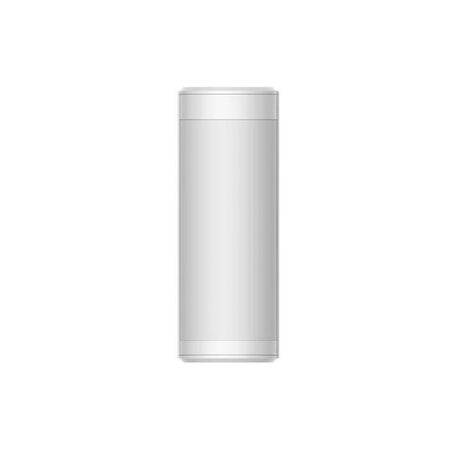

Wireless Tri-Tech Detector Hikvision

BRAND: Ness
SKU: 114-133
$376.40 List price: $501.90
+ −
30 Days Return Electricians Unlock Trade Access
Hikvision wireless tri-tech detector features wireless tri-tech detection. Ideal for alarm systems.

Alternatively Known As: Wireless Triple Signal Detector, Wireless Tri-Tech AM Detector, Outdoor PIR Microwave Detector

Technical Specifications
  • Model: DS-PDTT15AM-LM-WE
  • Detection Method: Passive infrared and microwave
  • Detection Range: 15 m
  • Detection Angle: 90° with 180° adjustment
  • Detection Zones: 92
  • Detectable Speed: 0.3–2 m/s
  • Pet Immunity: Up to 45 kg
  • Microwave Frequency: 24 GHz, 24.15–24.25 GHz
  • Digital Processing: Tri-Signal Logic
  • Wireless Technology: Tri-X two-way RF wireless
  • Transmission Frequency: 868 MHz
  • Wireless Security: AES-128 encryption with frequency hopping
  • Wireless Range: Up to 1.6 km in open space
  • Battery: 5 x CR123A, 3 V typical
  • Battery Life: Up to 5 years when triggered approximately 20 times per day
  • Ingress Protection: IP65
  • Operating Temperature: -25°C to 60°C
  • Operating Humidity: 10% to 90% RH
  • Mounting: Wall mounted at 0.8–1.2 m
  • Security Certification: EN 50131-2-4:2020, EN 50131-5-3:2017 and EN 50131-1+A1+A2+A3; Grade 2, Class IV
  • Dimensions (H x L x W): 202mm x 73mm x 75mm
  • Weight: 0.6 kg
Key Features
  • Combines top PIR, bottom PIR and microwave detection for tri-signal intrusion verification
  • Outdoor-rated IP65 housing
  • Active anti-masking with included pattern mask
  • Digital temperature compensation
  • Front and rear tamper protection
  • Signal strength and environmental temperature indicators
  • Anti-sway analytics to help reduce nuisance alarms
  • Remote enrolment by power-up, remote ID or QR code
  • Optional camera module compatibility for visual alarm verification
  • Suitable for use with Hikvision AX PRO wireless alarm systems
Professional Installation Requirements
  • Installation, alignment, enrolment and testing should be completed by a suitably qualified security alarm installer. Confirm the supplied regional variant is approved for Australian 868 MHz operation and configure the detector in accordance with the AX PRO installation instructions.
Applications
  • Outdoor perimeter intrusion detection
  • Residential security alarm systems
  • Commercial premises and small business security
  • Retail, office and light industrial sites
  • Driveways, entrances, fences and building perimeters
  • Hikvision AX PRO wireless alarm installations
Standards & Compliance
  • AS/NZS 2201.1:2007 – relevant to the design, installation, commissioning and maintenance of intruder alarm systems; confirm product-specific installation compliance.
  • AS/NZS 4268:2017 Amd 1:2021 – relevant Australian short-range radio equipment standard for the 868 MHz wireless function; confirm RCM/ACMA approval for the supplied regional variant.
Environmental Benefits
  • Battery-powered operation avoids the need for dedicated detector cabling and reduces installation materials.
  • Up to five-year battery life can reduce battery replacement frequency and associated waste.
  • IP65 construction and sealed optics support a longer service life in outdoor environments, reducing replacement waste.
  • Replaceable CR123A batteries allow the detector to be maintained without replacing the complete unit.
Warranty Information

Hikvision security products supplied through authorised Australian channels are commonly covered by a three-year manufacturer warranty, subject to the seller's terms, proof of purchase and regional product eligibility.

Available Now

Available through Hikvision and authorised Australian security distributors; check current regional stock and AX PRO compatibility before ordering.
