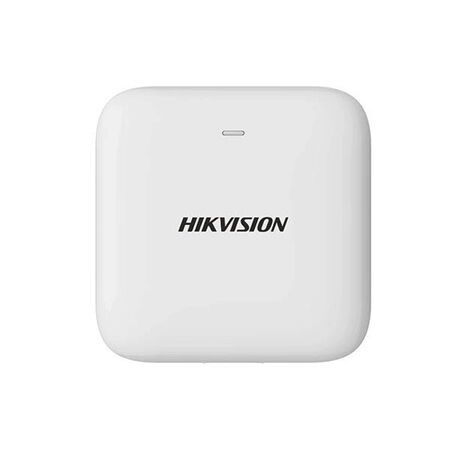

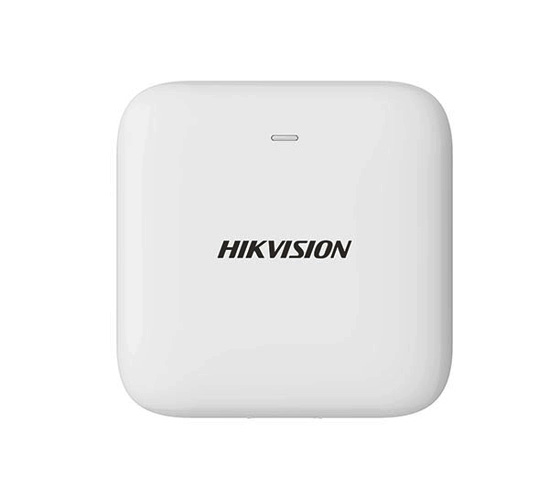

Wireless Water Leak Detector AX PRO Hikvision
Hikvision AX PRO wireless water leak detector for leak detection. Ideal for alarm systems and property protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-PDWL-E-WE Wireless Water Leak Detector, Hikvision DS-PDWL-E-WB Wireless Water Leak Detector, AX PRO Water Sensor
Technical Specifications
- Compatible System: Hikvision AX PRO wireless alarm system
- Detection Method: Water leak detection probe
- Wireless Technology: Tri-X two-way RF wireless
- Transmission Security: AES-128 encryption
- Transmission Frequency: 868 MHz for DS-PDWL-E-WE; 433 MHz for DS-PDWL-E-WB
- Wireless Range: Up to 1.2 km in free space for 868 MHz version; up to 1 km for 433 MHz version
- Power Supply: 1 x CR2450 battery
- Typical Voltage: 3 V
- Battery Life: Up to 3 years in standard operating conditions
- Ingress Protection: IP66
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10% to 90%
- LED Indicator: Blue alarm indicator
- Tamper Protection: Front and rear tamper detection
- Mounting: Wall or surface mounting
- Enrolment: Power-up, remote ID or QR code
- Dimensions (H x L x W): 14.6mm x 62.4mm x 62.4mm
- Weight: 0.1 kg
Key Features
- Detects water leaks using an included wired probe
- Integrates with Hikvision AX PRO alarm systems for local and remote notifications
- Two-way wireless communication with AES-128 encryption
- Long wireless transmission range in open space
- IP66-rated housing for protection against dust and water ingress
- Front and rear tamper protection
- Signal strength indication and environmental temperature monitoring
- Low-power operation from a replaceable CR2450 coin-cell battery
Professional Installation Requirements
- No mains electrical connection is required. The detector can be surface or wall mounted and enrolled to a compatible AX PRO alarm panel by a competent installer. Configure and test the alarm system in accordance with the manufacturer's instructions.
Applications
- Residential water leak monitoring
- Commercial and industrial property protection
- Plant rooms and service areas
- Areas near water heaters, pumps, tanks and plumbing
- Basements, laundries, kitchens and bathrooms
- HVAC condensate and drainage monitoring
- Integration with AX PRO security alarm systems
Environmental Benefits
- Low-power operation and up to three years of battery life can reduce battery replacement frequency
- Replaceable CR2450 battery supports product servicing rather than complete unit replacement
- IP66 protection can help extend service life in damp environments
- Hikvision documentation identifies RoHS compliance for the wireless detector
- Battery and electronic components should be disposed of through appropriate recycling or e-waste channels
Warranty Information
Hikvision Australia warranty terms apply to eligible products purchased through authorised channels. Hikvision's Australian warranty notice states that products manufactured after 1 March 2022 may receive an extended five-year total manufacturer warranty; confirm eligibility for this detector, its manufacture date and the selling channel before purchase.
Available Now
Available through Hikvision and authorised Australian security, alarm and electronic security distributors.
