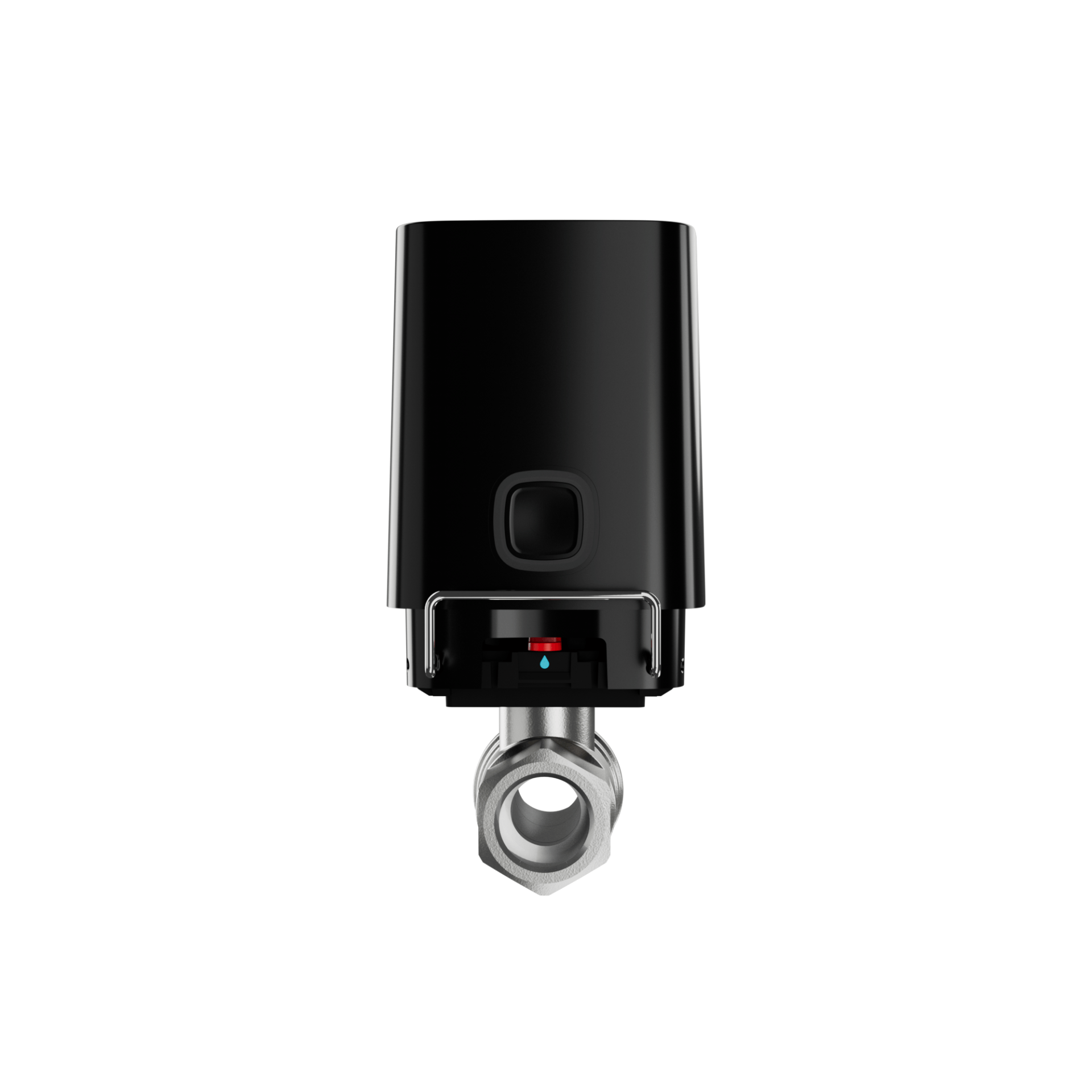

Wireless Water Shutoff Valve 1" Black | Remote Control | Automatic Leak Detection | by Dicker Data
The Wireless Water Shutoff Valve 1" Black is designed for efficient water management, featuring remote control via Ajax apps and automatic leak detection that shuts off water supply within 5 seconds. Ideal for both residential and commercial plumbing safety, this valve supports various automation scenarios and ensures peace of mind with its robust brass construction and long radio signal range.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wireless Water Shutoff Valve 1" Black | Remote Control | Automatic Leak Detection | by Dicker Data
Brand: Dicker Data
SKU: 62603.154.BL3
Alternatively Known As: Wireless Water Shutoff Valve, Remote Water Valve Controller, Ajax WaterStop Valve, Smart Water Shutoff Valve
Technical Specifications
- Valve Size: 1" (DN 25)
- Valve Material: Brass
- Connection Type and Thread: BSP parallel (EN 10226-1, ISO 228), female-to-female threads
- Operating Fluid: Hot and cold water, non-aggressive liquids
- Operating Liquid Temperature Range: -20 °C to +170 °C
- Operating Pressure: Up to 10 bars
- Shut-off Speed: Up to 7 seconds
- Torque: Up to 8.5 N•m
- Remote Control: Via Ajax apps
- Manual Control: Button on electric actuator and lever on valve
- Radio Signal Range: Up to 1,100 m
- Power Supply: 4 × CR123A batteries
- Battery Life: Up to 3 years
- Optional External Power Supply: 7.5–14 V⎓, from 1.8 A (recommended 9–12 V⎓, 2 A)
- Operating Temperature Range: 0 °C to +60 °C
- Operating Humidity: Up to 95%
- Dimensions (H x L x W): 70mm x 159mm x 104mm
- Weight: 1.34 kg
Key Features
- Remote control of water supply via Ajax apps from anywhere with Internet access
- Automatic water shutoff within 5 seconds upon leak detection
- Supports automation scenarios including leak alarm, security mode change, and scheduling
- Adjustable stuck prevention with a maximum interval of 1 week
- Bonomi Industries brass shutoff valve DN 25 (1") with BSP parallel female-to-female threads

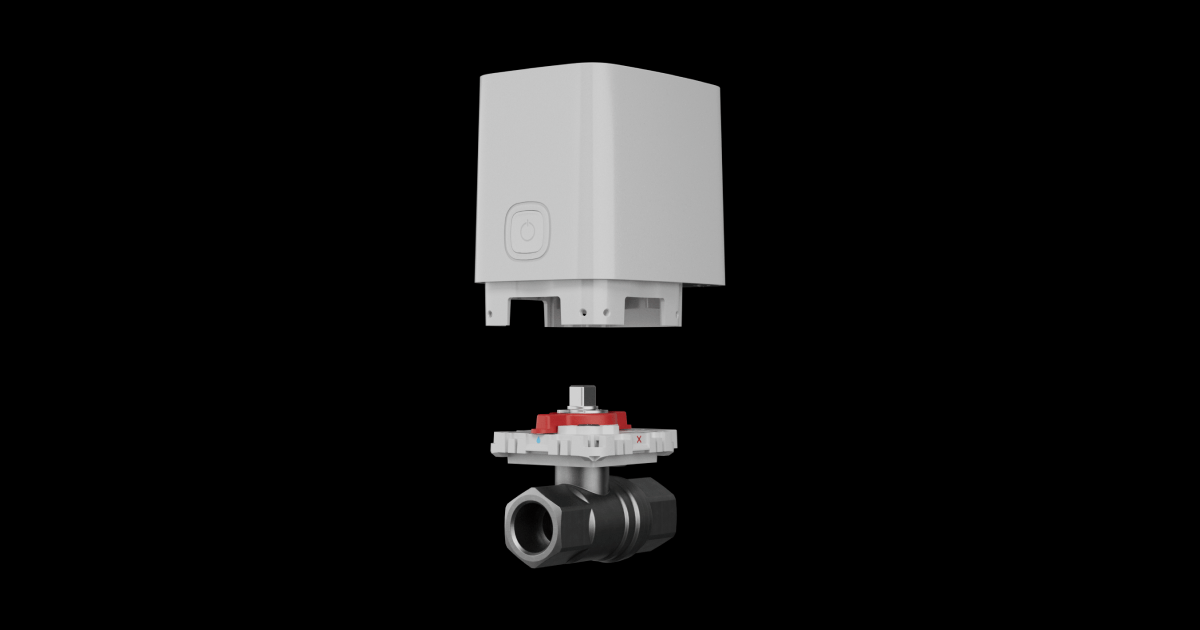

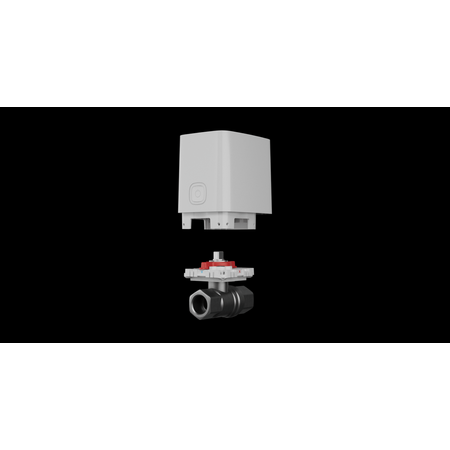

- Electric actuator with manual control button and lever on valve
- Up to 1,100 m radio signal range without obstacles
- Mounting lockers to prevent unauthorized disassembly
- Optional external power supply 9–12 V⎓, 2 A with battery backup
- Pairing via QR code
- Compatible with ISO 5211 standard shutoff valves
Professional Installation Requirements
- Installation by a qualified plumber and certified electrician is recommended to ensure proper integration with water supply and electrical systems.
Applications
- Water supply and heating systems
- Remote water shutoff for leak prevention
- Residential and commercial plumbing safety
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Prevents water wastage by automatically shutting off leaks
- Supports efficient water management and reduces potential water damage
- Battery-powered with optional external power supply for energy efficiency
Warranty Information
24 months warranty provided by the manufacturer.
Available Now
The AJAX WaterStop Wireless Water Shutoff Valve 1" Black is available for immediate purchase, ideal for residential and commercial water supply safety applications.
