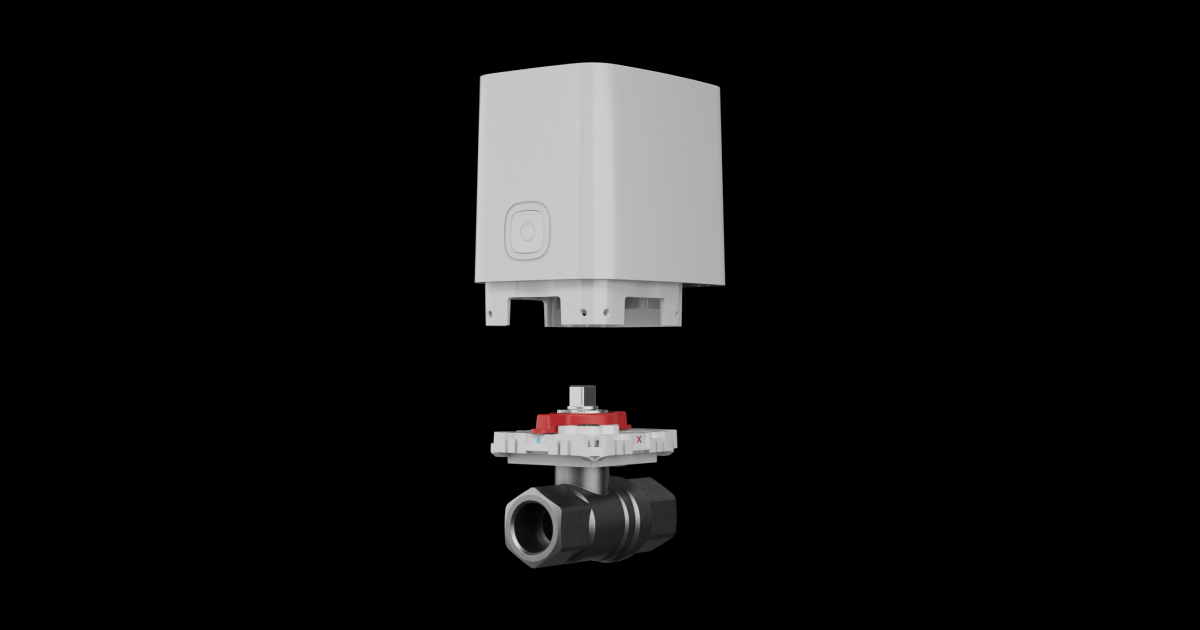

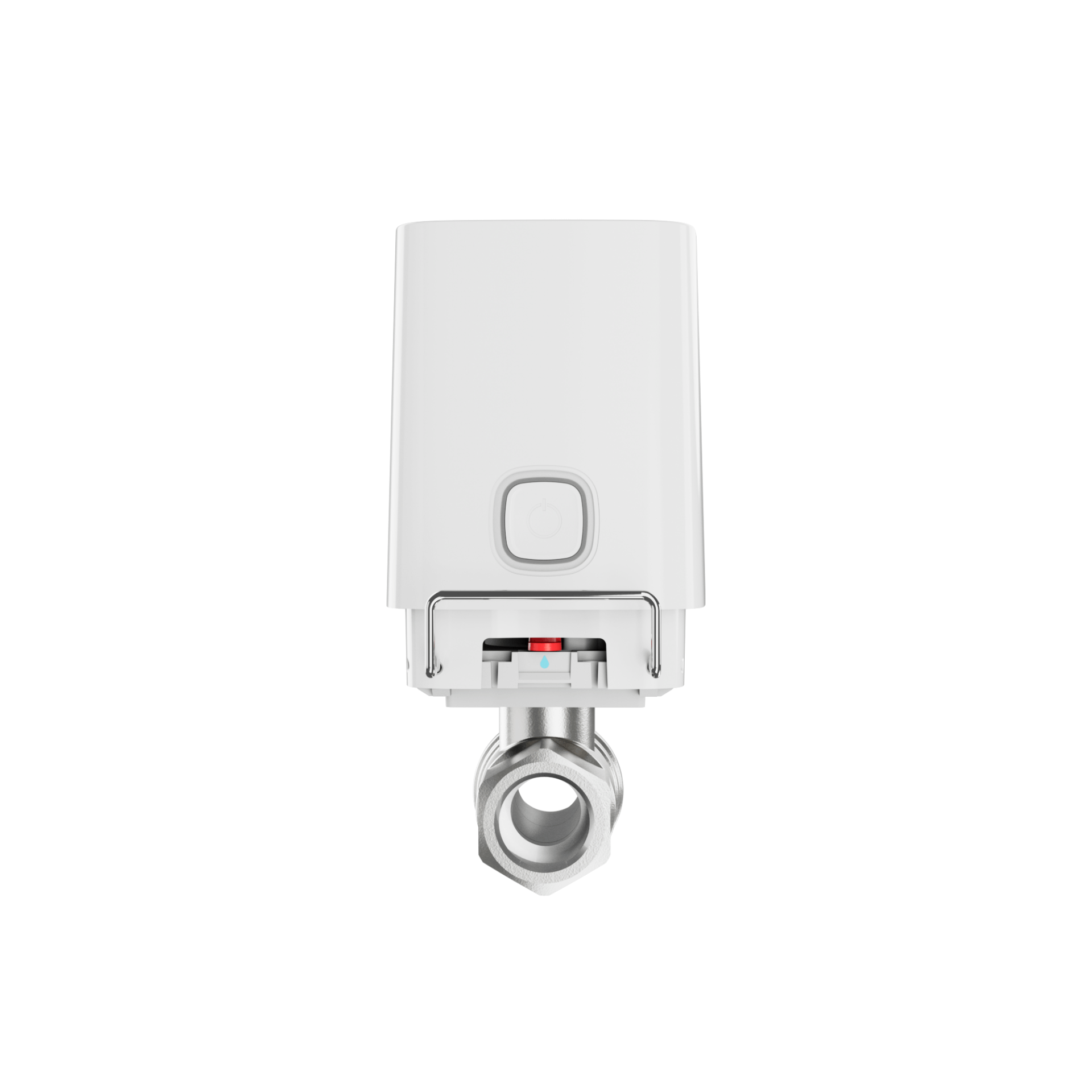

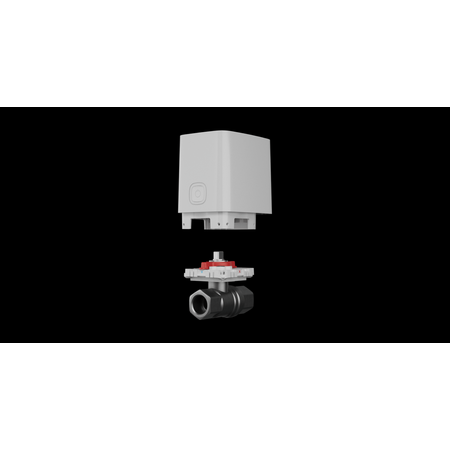

Wireless Water Shutoff Valve 3/4" | Remote Control & Leak Detection | Brass Construction | by Dicker Data
The Wireless Water Shutoff Valve 3/4" is designed for efficient water management, featuring remote control via Ajax apps and automatic shutoff within 5 seconds upon leak detection. Ideal for both residential and commercial applications, this valve ensures safety and conservation, with a robust brass construction and a radio signal range of up to 1,100 m.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wireless Water Shutoff Valve 3/4" | Remote Control & Leak Detection | Brass Construction | by Dicker Data
Brand: Dicker Data
SKU: 62604.155.WH3
Alternatively Known As: Wireless Water Shutoff Valve, Remote Water Valve, Smart Water Stop Valve, Ajax WaterStop Valve
Technical Specifications
- Valve size: ¾" (DN 20)
- Valve material: Brass
- Connection type and thread: BSP parallel (EN 10226-1, ISO 228), female-to-female threads
- Operating fluid: Hot and cold water, non-aggressive liquids
- Operating liquid temperature range: -20 °C to +170 °C
- Operating temperature range: 0 °C to +60 °C
- Operating humidity: Up to 95%
- Operating pressure: Up to 10 bars
- Torque: Up to 8.5 N•m
- Shut-off speed: Up to 7 seconds
- Remote control and configuration via Ajax apps
- Manual control: Lever on mounting platform and button on electric actuator
- Overheating notification at +60 °C
- Radio signal range: Up to 1,100 m
- Power supply: 4 × CR123A batteries, optional external 7.5–14 V⎓ power supply
- Battery life: Up to 3 years
- Dimensions (H x L x W): 70mm x 150mm x 104mm
- Weight: 1.0 kg
Key Features
- Remote control of water supply via Ajax apps from anywhere with Internet access
- Automatic water shutoff within 5 seconds upon leak detection alarm
- Supports automation scenarios including leak alarm, security mode change, and scheduling
- Adjustable stuck prevention with a maximum interval of 1 week
- Bonomi Industries brass shutoff valve DN 20 (3/4") with BSP parallel female-to-female threads
- Up to 3 years operation on pre-installed 4 × CR123A batteries
- Radio signal range up to 1,100 m without obstacles
- Manual control via lever on valve and button on electric actuator
- Mounting lockers to prevent unauthorized disassembly
- Optional external power supply 7.5–14 V⎓, recommended 9–12 V⎓, 2 A
- Pairing with system via QR code
- Compatible with ISO 5211 standard shutoff valves
Professional Installation Requirements
- Installation by a qualified plumber and system installer is recommended to ensure proper integration with Ajax system and compliance with ISO 5211 standard.
Applications
- Water supply and heating systems
- Remote water shutoff for residential and commercial facilities
- Leak detection and automated water control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Prevents water damage and wastage by automatic shutoff upon leak detection
- Supports energy-efficient operation with long battery life and optional external power supply
- Enables water conservation through precise control and scheduling
Warranty Information
24 months warranty.
Available Now
The AJAX WaterStop Wireless Water Shutoff Valve 3/4" White is available for immediate purchase, ideal for water supply and heating system safety and automation.
