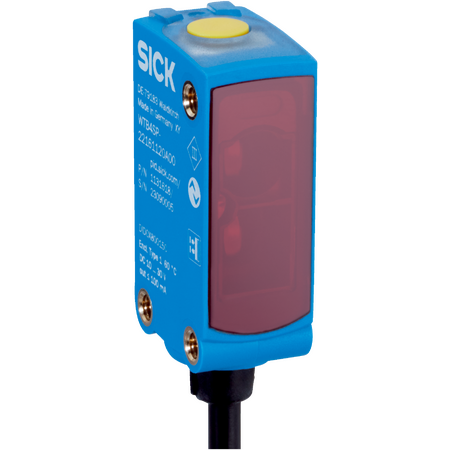

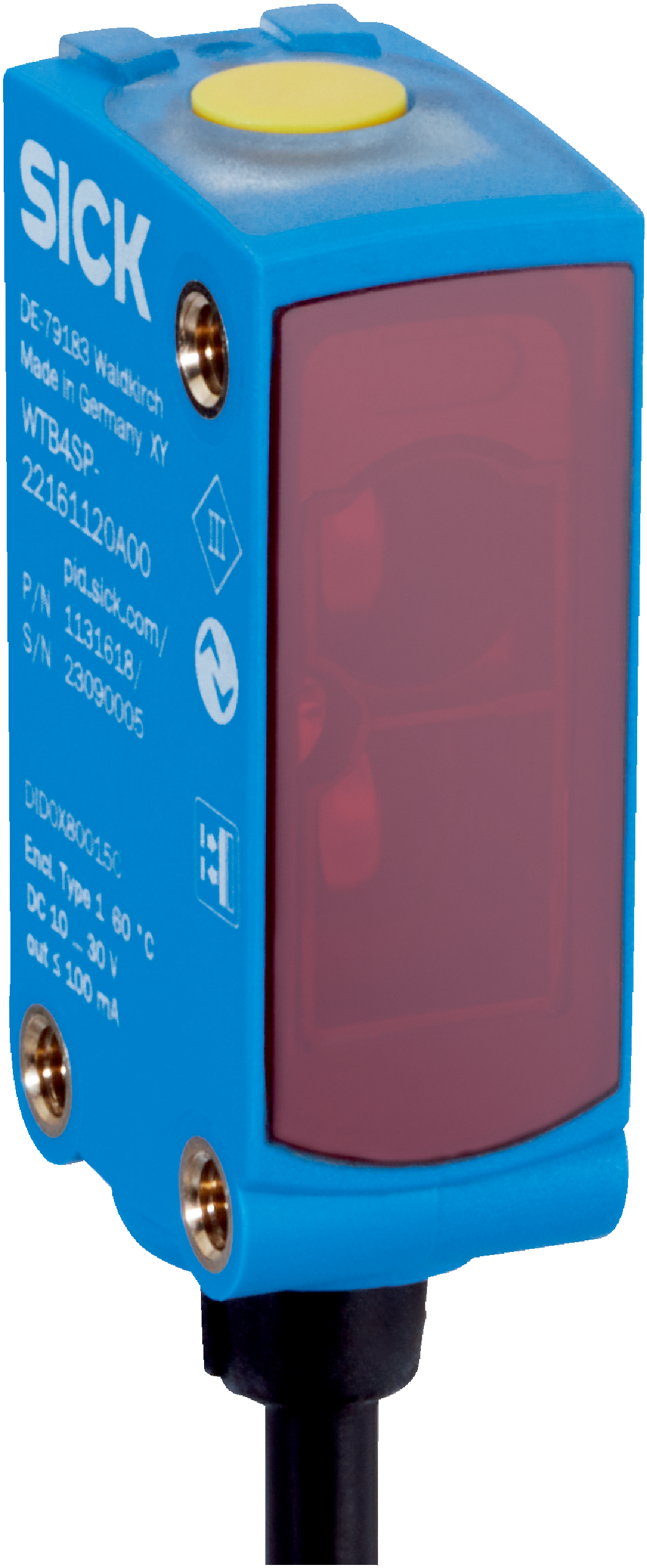

WLG4SP-1H56K130A00 | Photoelectric sensors
The SICK WLG4SP-1H56K130A00 is a high-performance photoelectric retro-reflective sensor designed for reliable object detection including transparent and film-wrapped objects, featuring IO-Link communication and robust IP66/IP67 rated housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WLG4SP-1H56K130A00 | Photoelectric sensors
Brand: SICK
SKU: 1140059
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, IO-Link photoelectric sensor, SICK WLG4SP sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 m to 7.1 m, recommended 0 m to 5 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Digital outputs: 2 push-pull (PNP/NPN), max output current 100 mA
- Response time: ≤ 500 µs, switching frequency up to 1,000 Hz
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Connection: 4-wire cable, 2 m length
- Housing material: Plastic VISTAL®, front screen PMMA, cable PVC
- EMC compliance: EN 60947-5-2
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz
- Dimensions (H x L x W): 42mm x 19mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with ClearSens and MultiMode
- Sensing range up to 7.1 m, recommended 0 to 5 m for best performance
- PinPoint LED visible red light with 635 nm wavelength
- BluePilot teach-in button for sensitivity adjustment
- IO-Link V1.1 interface for sensor parameter configuration and Smart Task functions
- High switching frequency up to 1,000 Hz and fast response time ≤ 500 µs
- Robust plastic VISTAL® housing with IP66/IP67 protection
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance 30 g and vibration resistance 10 Hz to 1,000 Hz
- Multiple LED indicators for alignment, operation, and status
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper configuration and safety compliance.
Applications
- Object detection in industrial automation
- Detecting objects wrapped in film
- Detecting transparent objects
- Use in environments requiring high ambient light immunity
- Suitable for harsh environments with IP66/IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Complies with environmental regulations including China RoHS
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WLG4SP-1H56K130A00 photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
