Wood Plug-in Connector | Aluminium Dovetail Design | High Load Capacity | @Pack of 4 | by Wurth
The Wood Plug-in Connector is designed for reliable timber connections, featuring a robust aluminium dovetail design that ensures high load capacity and easy installation. Ideal for furniture making and timber constructions, this connector reduces assembly times and supports sustainable building practices, making it perfect for both professional carpenters and DIY enthusiasts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wood Plug-in Connector | Aluminium Dovetail Design | High Load Capacity | @Pack of 4 | by Wurth
Brand: Wurth
SKU: 681352501
Alternatively Known As: Wood Plug-in Connector, Aluminium Wood Connector, Dovetail Wood Connector, Timber Connector
Technical Specifications
- Material: Aluminium
- Length x Width x Height: 330 x 80 x 18 mm
- Beam cross-section of main carrier min. (B/H): 100 x 360 mm
- Min. beam cross-section of subcarrier (B/H): 100 x 360 mm
- Diameter of hole: 8.5 mm
- Number of screws on subcarrier/main carrier: 19 / 14 PCS
- Required minimum number of locking screws: 2 PCS
- Max. installation depth: 18 mm
- Use possible in NKL 1 and 2 according to EN 1995-1-1
- Suitable for quasi static loads and loads in all directions
- Reliable materials include solid wood min. C24, laminated wood min. GL 24c, laminated veneer lumber, and cross-laminated timber
- Dimensions (H x L x W): 18mm x 330mm x 80mm
- Weight: 1.2 kg
Key Features
- Ideal for concealed or visible connections
- Enables high degree of pre-fabrication reducing assembly times

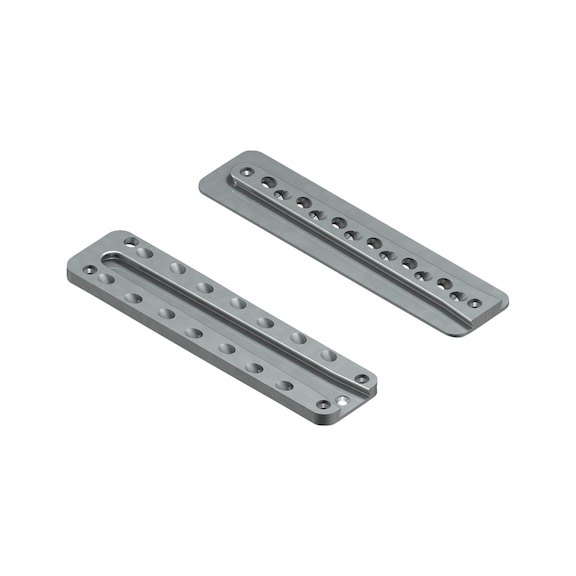

- Consists of two aluminium parts joined by a classic dovetail joint
- Suitable for load-bearing wood/wood connections
- Simple continuous mounting system with identical edge distances
- High load transfer in multiple directions including tension, compression, and torque
- Suitable for fire protection requirements R30, R60, R90, and R120 according to ETA-12/0067
Professional Installation Requirements
- Professional installation by qualified carpenters or construction specialists is recommended to ensure proper load-bearing connections and compliance with fire protection standards.
Applications
- Timber constructions
- Furniture making
- Interior finishing
- Wall, roof, and ceiling solutions
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Enables efficient prefabrication reducing waste and onsite construction time
- Made from recyclable aluminium material
- Supports sustainable timber construction methods
Warranty Information
Warranty details available upon request from Wurth; typically includes coverage against manufacturing defects.
Available Now
The Wurth Plug-in Connector Wood Wood PLGINCON CCEA WO WO L100 is available for immediate purchase, ideal for timber construction and furniture manufacturing applications.
