Wood Plug-in Connector | Aluminium Dovetail Design | High Load Transfer | @Pack of 4 | by Wurth
The Wood Plug-in Connector is designed for efficient timber constructions and furniture making, featuring a robust aluminium dovetail design for high load transfer in multiple directions. Ideal for both concealed and visible connections, this connector reduces assembly times and supports sustainable building practices, making it perfect for professional carpenters and builders.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wood Plug-in Connector | Aluminium Dovetail Design | High Load Transfer | @Pack of 4 | by Wurth
Brand: Wurth
SKU: 681352256
Alternatively Known As: Wood Plug-in Connector, Aluminium Wood Connector, Dovetail Wood Connector, Timber Connector
Technical Specifications
- Type description: L 60
- Material: Aluminium
- Length x width x height: 250 x 80 x 18 mm
- Beam cross-section of main carrier min. (B/H): 100 x 280 mm
- Min. beam cross-section of subcarrier (B/H): 100 x 280 mm
- Diameter of hole: 8.5 mm
- Number of screws on subcarrier/main carrier: 15 / 10 PCS
- Required minimum number of locking screws: 2 PCS
- Max. installation depth: 18 mm
- Use possible in NKL 1 and 2 according to EN 1995-1-1
- Suitable for quasi static loads and loads in all directions of space
- For non-twisting connections
- Compatible with solid wood min. C24, laminated wood min. GL 24c, laminated veneer lumber, and cross-laminated timber
- Dimensions (H x L x W): 18mm x 250mm x 80mm
- Weight: 0.5 kg
Key Features
- Ideal for concealed or visible connections
- Enables high degree of pre-fabrication reducing assembly times

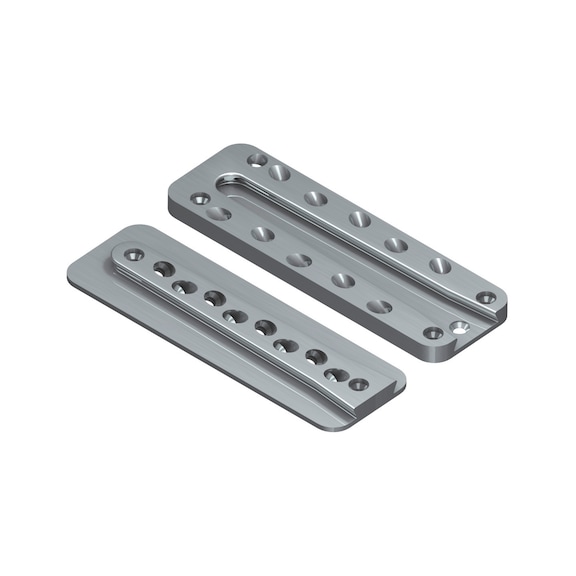

- Consists of two aluminium parts joined by a classic dovetail joint
- Rapid assembly of load-bearing wood/wood connections
- Multiple dimensions for tailor-made and reliable solutions
- Simple, continuous mounting system with identical edge distances
- High load transfer in multiple directions including tension, compression, and torque
- Suitable for fire protection requirements R30, R60, R90, and R120 according to ETA-12/0067
Professional Installation Requirements
- Professional installation by a qualified carpenter or builder is recommended to ensure proper load-bearing connections and compliance with fire protection standards.
Applications
- Timber constructions
- Furniture making
- Interior finishing
- Wall, roof, and ceiling solutions
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Enables efficient prefabrication reducing waste and onsite construction time
- Supports sustainable timber construction methods
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Plug in Connector Wood PLGINCON CCEA WO WO L60 is available for immediate purchase, ideal for timber construction and furniture making applications.
