Wood Plug-in Connector | Aluminium Dovetail Joint | High Load Transfer | @Pack of 4 | by Wurth
The Wood Plug-in Connector is designed for concealed or visible connections in timber constructions and furniture making. Featuring a durable aluminium construction and a classic dovetail joint, it enables high load transfer in multiple directions, ensuring reliable performance. Ideal for professional installations, this connector supports efficient prefabrication, reducing assembly times and waste on site.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wood Plug-in Connector | Aluminium Dovetail Joint | High Load Transfer | @Pack of 4 | by Wurth
Brand: Wurth
SKU: 681352502
Alternatively Known As: Wood Plug-in Connector, Aluminium Wood Connector, Dovetail Wood Connector, Timber Joint Connector
Technical Specifications
- Type description: L 120
- Material: Aluminium
- Length x width x height: 370 x 80 x 18 mm
- Beam cross-section of main carrier min. (B/H): 400 x 100 mm
- Min. beam cross-section of subcarrier (B/H): 100 x 400 mm
- Diameter of hole: 8.5 mm
- Number of screws on subcarrier/main carrier: 21 / 16 PCS
- Required minimum number of locking screws: 2 PCS
- Max. installation depth: 18 mm
- Use possible in NKL 1 and 2 according to EN 1995-1-1
- Suitable for quasi static loads and loads in all directions
- Reliable materials: solid wood min. C24, laminated wood min. GL 24c, laminated veneer lumber, cross-laminated timber
- Dimensions (H x L x W): 18mm x 370mm x 80mm
- Weight: 1.2 kg
Key Features
- Ideal for concealed or visible connections
- Enables high degree of pre-fabrication reducing assembly times

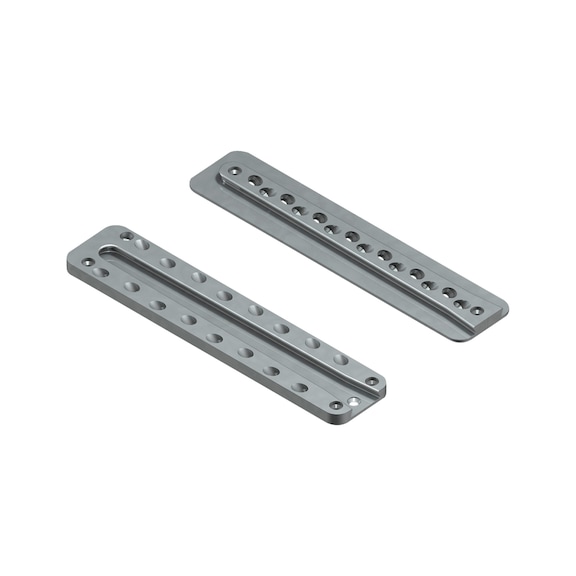

- Consists of two aluminium parts joined by a classic dovetail joint
- Suitable for load-bearing wood/wood connections
- Simple continuous mounting system with identical edge distances
- High load transfer in multiple directions including tension, compression, and torque
- Suitable for fire protection requirements R30, R60, R90, and R120 according to ETA-12/0067
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper load-bearing connections and compliance with fire protection standards.
Applications
- Timber constructions
- Furniture making
- Interior finishing
- Wall, roof, and ceiling solutions
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Enables efficient prefabrication reducing waste and energy use on site
- Supports use of sustainable timber materials
- Durable aluminium construction extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for specific warranty details.
Available Now
The Wurth Plug-in Connector Wood Wood PLGINCON CCEA WO WO L120 is available for immediate purchase, ideal for timber construction and furniture manufacturing applications.
