Wood Plug-in Connector | Aluminium Dovetail Joint | High Load Transfer | @Pack of 4 | by Wurth
The Wood Plug-in Connector is designed for concealed or visible connections, featuring a robust aluminium dovetail joint for high load transfer in multiple directions. Ideal for timber constructions, furniture making, and interior finishing, this connector reduces assembly times and supports fire protection requirements, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wood Plug-in Connector | Aluminium Dovetail Joint | High Load Transfer | @Pack of 4 | by Wurth
Brand: Wurth
SKU: 681352253
Alternatively Known As: Wood Plug-in Connector, Aluminium Wood Connector, Dovetail Wood Connector, Timber Joint Connector
Technical Specifications
- Type description: L 30
- Material: Aluminium
- Length x width x height: 150 x 80 x 18 mm
- Beam cross-section of main carrier min. (B/H): 100 x 180 mm
- Min. beam cross-section of subcarrier (B/H): 100 x 180 mm
- Diameter of hole: 8.5 mm
- Number of screws on subcarrier/main carrier: 9 / 6 PCS
- Required minimum number of locking screws: 2 PCS
- Max. installation depth: 18 mm
- Use possible in NKL 1 and 2 according to EN 1995-1-1
- Suitable for quasi static loads and loads in all directions
- Reliable materials: solid wood min. C24, laminated wood min. GL 24c, laminated veneer lumber, cross-laminated timber
- Dimensions (H x L x W): 18mm x 150mm x 80mm
- Weight: 0.5 kg
Key Features
- Ideal for concealed or visible connections
- Enables high degree of pre-fabrication reducing assembly times

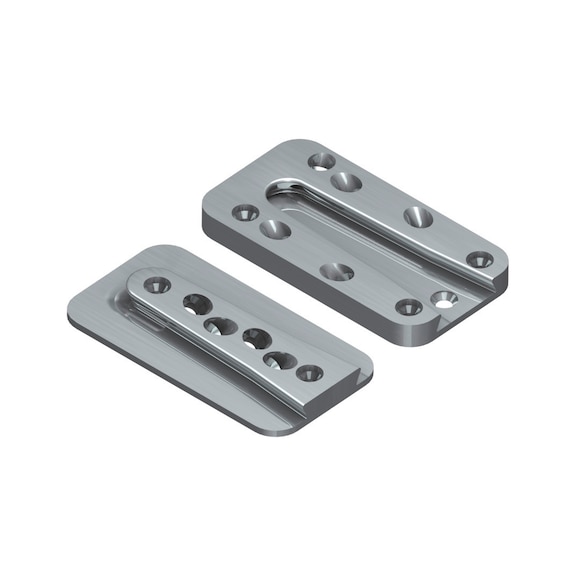

- Consists of two aluminium parts joined by a classic dovetail joint
- Suitable for load-bearing wood/wood connections
- Simple continuous mounting system with identical edge distances
- High load transfer in multiple directions including tension, compression, and torque
- Suitable for fire protection requirements R30, R60, R90, and R120 according to ETA-12/0067
Professional Installation Requirements
- Professional installation by a qualified carpenter or builder is recommended to ensure proper load-bearing connections and compliance with fire protection standards.
Applications
- Timber constructions
- Furniture making
- Interior finishing
- Wall, roof, and ceiling solutions
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Enables efficient prefabrication reducing waste and energy use on site
- Supports use of sustainable timber materials
- Durable aluminium construction extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for specific warranty details.
Available Now
The Wurth Plug-in Connector Wood PLGINCON CCEA WO WO L30 18X80X150 4 PCS is available for immediate purchase. Ideal for timber construction, furniture making, and interior finishing applications.
