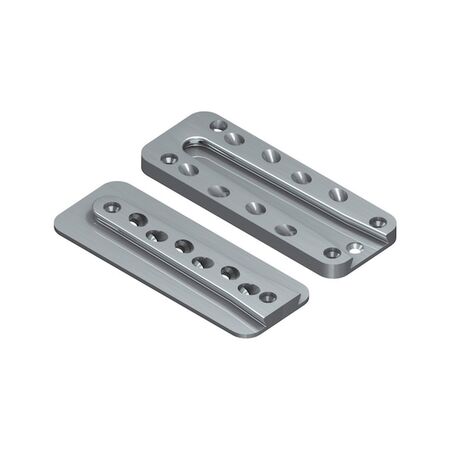

Wood Plug-in Connector | Aluminium Dovetail Joint | High Load Transfer | @Pack of 4 | by Wurth
The Wood Plug-in Connector is designed for efficient timber constructions and furniture making, featuring a robust aluminium dovetail joint for high load transfer in multiple directions. Ideal for both concealed and visible connections, this connector significantly reduces assembly time and ensures compliance with fire protection standards, making it perfect for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wood Plug-in Connector | Aluminium Dovetail Joint | High Load Transfer | @Pack of 4 | by Wurth
Brand: Wurth
SKU: 681352255
Alternatively Known As: Wood Plug-in Connector, Aluminium Wood Connector, Dovetail Wood Connector, Timber Connector
Technical Specifications
- Type description: L 50
- Material: Aluminium
- Dimensions: 210 x 80 x 18 mm (L x W x H)
- Beam cross-section of main carrier min.: 100 x 240 mm
- Min. beam cross-section of subcarrier: 100 x 240 mm
- Diameter of hole: 8.5 mm
- Number of screws on subcarrier/main carrier: 13 / 8 PCS
- Required minimum number of locking screws: 2 PCS
- Max. installation depth: 18 mm
- Suitable for NKL 1 and 2 according to EN 1995-1-1
- For quasi-static loads in all directions of space
- Reliable materials: solid wood min. C24 (EN 338/EN 14081-1), laminated wood min. GL 24c (EN 14080), laminated veneer lumber (EN 14374), cross-laminated timber (ETA)
- Dimensions (H x L x W): 18mm x 210mm x 80mm
- Weight: 1.2 kg
Key Features
- Ideal for concealed or visible connections enabling high pre-fabrication
- Significant reduction in assembly time

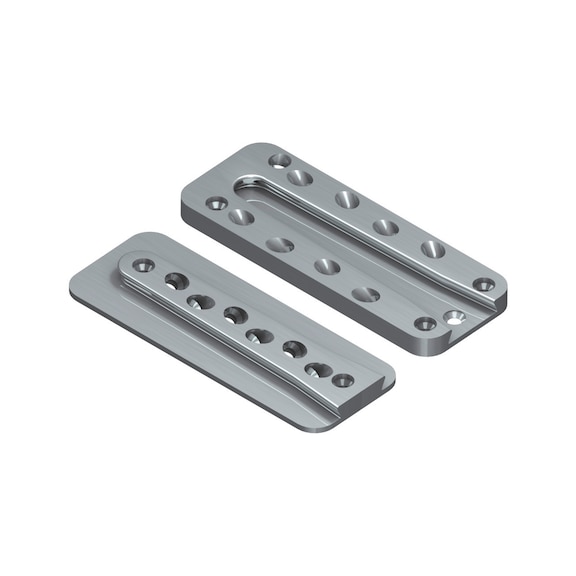

- Consists of two aluminium parts joined by a classic dovetail joint
- High load transfer in multiple directions including tension, compression, and torque
- Simple continuous mounting system with identical edge distances and non-aligned screws
- Suitable for fire protection requirements R30, R60, R90, and R120 according to ETA-12/0067
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper load-bearing connections and compliance with fire protection standards.
Applications
- Timber constructions
- Furniture making
- Interior finishing
- Wall, roof, and ceiling solutions requiring wood-to-wood connections
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Enables efficient prefabrication reducing waste and onsite construction time
- Durable aluminium construction promotes long product life and recyclability
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth for specific terms.
Available Now
The Wurth Plug-in Connector Wood WO WO L50 Aluminium 210x80x18mm 4 PCS is available for immediate purchase, ideal for timber construction and furniture manufacturing applications.
