Wood Plug-in Connector | Aluminium Dovetail Joint | Rapid Assembly | @Pack of 10 | by Wurth
The Wood Plug-in Connector is designed for efficient timber constructions and furniture making, featuring a robust aluminium dovetail joint for rapid assembly. Ideal for both concealed and visible connections, it ensures high load transfer and compliance with fire protection requirements. Perfect for professionals seeking reliable and sustainable solutions in interior finishing and structural applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wood Plug-in Connector | Aluminium Dovetail Joint | Rapid Assembly | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 681352248
Alternatively Known As: Wood Plug-in Connector, Aluminium Wood Connector, Dovetail Wood Connector, Timber Plug-in Connector
Technical Specifications
- Type description: M 15
- Material: Aluminium
- Beam cross-section of main carrier min.: 65 x 120 mm
- Min. beam cross-section of subcarrier: 80 x 120 mm
- Diameter of hole: 7 mm
- Number of screws on subcarrier/main carrier: 9 / 7 PCS
- Required minimum number of locking screws: 1 PCS
- Max. installation depth: 14 mm
- Use possible in NKL 1 and 2 according to EN 1995-1-1
- Suitable for quasi static loads and loads in all directions of space
- For non-twisting connections
- Compatible with solid wood min. C24, laminated wood min. GL 24c, laminated veneer lumber, and cross-laminated timber
- Dimensions (H x L x W): 14mm x 90mm x 60mm
- Weight: 0.3 kg
Key Features
- Ideal for concealed or visible connections enabling high pre-fabrication and reduced assembly times

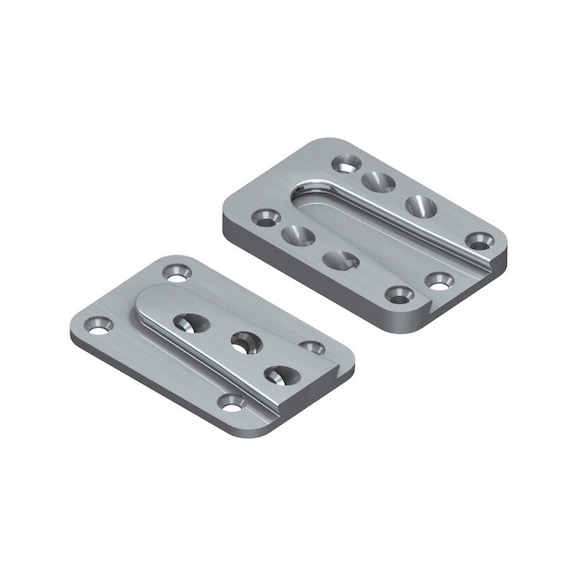

- Consists of two aluminium parts joined by a classic dovetail joint for form-fitting connection
- Rapid assembly of load-bearing wood/wood connections
- Multiple dimensions for tailor-made and reliable solutions
- Simple continuous mounting system with identical edge distances and non-aligned screws to maintain strength
- High load transfer in and perpendicular to insertion direction, tension, compression, and torque load transfers around all three axes
- Suitable for fire protection requirements R30, R60, R90, and R120 according to ETA-12/0067
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct assembly and compliance with structural requirements.
Applications
- Timber constructions
- Furniture making
- Interior finishing
- Wall, roof, and ceiling solutions
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Enables efficient prefabrication reducing waste and onsite construction time
- Made from recyclable aluminium material
- Supports sustainable timber construction methods
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Plug in Connector Wood PLGINCON CCEA WO WO M15 14X60X90 10 PCS is available for immediate purchase. Ideal for timber construction and furniture making applications.
