Wood Plug-in Connector M25 | Aluminium Dovetail Joint | High Load Transfer | @Pack of 10 | by Wurth
The Wood Plug-in Connector M25 is designed for reliable wood-to-wood connections, featuring a robust aluminium construction and a classic dovetail joint. Ideal for timber constructions and furniture making, this connector enables efficient prefabrication, reducing assembly times while ensuring high load transfer in multiple directions. Perfect for both concealed and visible connections, it meets fire protection requirements and supports sustainable building practices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wood Plug-in Connector M25 | Aluminium Dovetail Joint | High Load Transfer | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 681352250
Alternatively Known As: Wood Plug-in Connector, Aluminium Wood Connector, Dovetail Wood Connector, Timber Connector M25
Technical Specifications
- Type description: M 25
- Material: Aluminium
- Beam cross-section of main carrier min.: 65 x 160 mm
- Min. beam cross-section of subcarrier: 80 x 160 mm
- Diameter of hole: 7 mm
- Number of screws on subcarrier/main carrier: 13 / 10 PCS
- Required minimum number of locking screws: 1 PCS
- Max. installation depth: 14 mm
- Use possible in NKL 1 and 2 according to EN 1995-1-1
- Suitable for quasi static loads and loads in all directions
- Reliable materials: solid wood min. C24, laminated wood min. GL 24c, laminated veneer lumber, cross-laminated timber
- Dimensions (H x L x W): 14mm x 130mm x 60mm
- Weight: 0.3 kg
Key Features
- Ideal for concealed or visible connections
- Enables high degree of pre-fabrication reducing assembly times

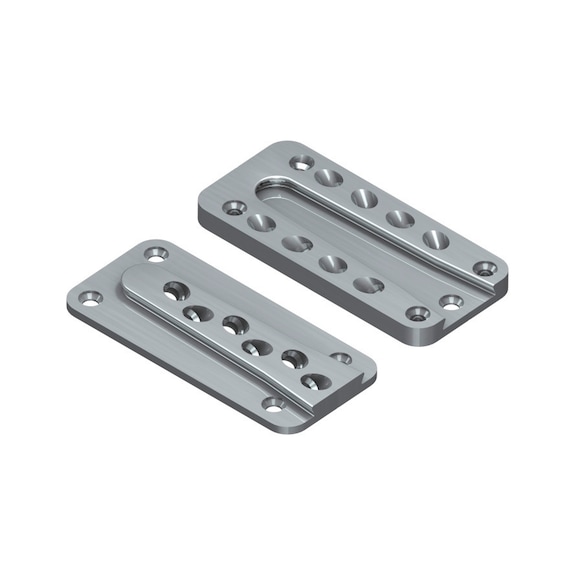

- Consists of two aluminium parts joined by a classic dovetail joint
- Suitable for load-bearing wood/wood connections
- Simple continuous mounting system with identical edge distances
- High load transfer in multiple directions including tension, compression, and torque
- Suitable for fire protection requirements R30, R60, R90, and R120 according to ETA-12/0067
Professional Installation Requirements
- Installation should be performed by a qualified professional familiar with timber construction and fastening systems to ensure compliance with structural and fire safety standards.
Applications
- Timber constructions
- Furniture making
- Interior finishing
- Wall, roof, and ceiling solutions
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Enables efficient prefabrication reducing waste and energy consumption during assembly
- Made from recyclable aluminium material
- Supports sustainable timber construction methods
Warranty Information
Warranty terms as per Wurth standard product warranty policy.
Available Now
The Wurth Plug-in Connector Wood WO WO M25 14X60X130 10 PCS is available for immediate purchase, ideal for timber construction and furniture manufacturing applications.
