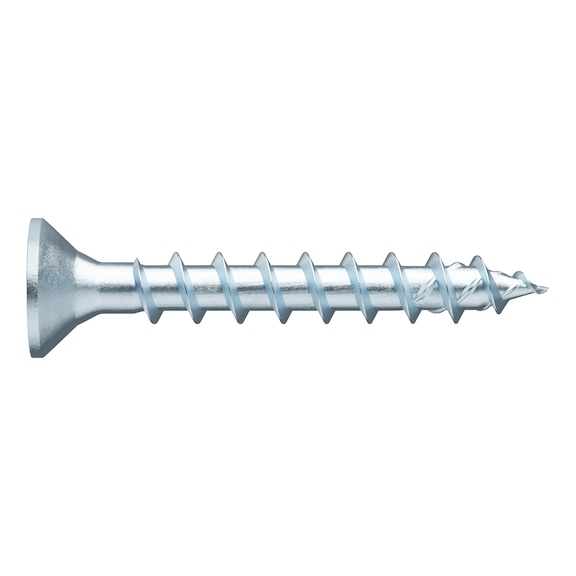

Wood Screw Countersunk Head | Roller-Sorted Full Thread | Zinc Plated | @Pack of 3000 | by Wurth
Wood screw with a countersunk head and roller-sorted full thread, perfect for furniture assembly and cabinetry. Designed for optimal power transmission with RW drive, this screw ensures stability and precise positioning. Ideal for various wood types, it features a durable zinc plating for extended life and reduced waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wood Screw Countersunk Head | Roller-Sorted Full Thread | Zinc Plated | @Pack of 3000 | by Wurth
Brand: Wurth
SKU: 190435030
Alternatively Known As: Wood screw, Countersunk head screw, Full thread wood screw, Zinc plated wood screw, Cabinet screw
Technical Specifications
- Nominal diameter: 3.5 mm
- Length: 30 mm
- Head type: Countersunk head
- Head diameter: 7 mm
- Head height: 2.3 mm
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Coarse thread
- Thread length: 25 mm
- Core diameter: 2.1 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 28 degrees
- Material: Hardened steel
- Surface finish: Zinc plated
- Colour: Silver
- Min/max screw-in angle: 0-90 degrees
- Product weight per item: 1.3 g
- Suitable materials: Wood, derived timber product, softwood, plywood, hardwood, LVL
- Area of application: Universal, furniture, cabinet, fitting
- Suitable machines: Würth BS 12-A Power
- Approval: ETA-11/0190
- Screw requiring approval: Yes
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.3mm x 30mm x 7mm
- Weight: 0.0013 kg
Key Features
- Roller-sorted full-thread screw with countersunk head
- Ideal power transmission due to RW drive with larger contact area at the bit
- More stability and precise positioning with tight-fit recess
- Compatibility with previous AW drive
- Form-fitting connection to metal fittings or wooden products with high bulk density
- Perfect fit of 90° head in fitting parts with metal countersinks
- Pulls together without head milling due to lack of milling elements below the head
- Higher power transmission in hardwoods due to reinforced, asymmetrical thread flank geometry
- Smooth thread start for optimized recessing and biting
- Reduced splitting effect due to dome-shaped milling elements in the tip
- Friction-reduced thread rotation allows reduction of screw-in force
Professional Installation Requirements
- Professional installation recommended using appropriate power tools such as Würth BS 12-A Power for optimal fastening performance.
Applications
- Universal use in furniture assembly
- Cabinet and fitting fastening
- Suitable for wood, derived timber products, softwood, plywood, hardwood, LVL
Standards & Compliance
- Complies with AS/NZS 4785 – Wood screws
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Available for immediate purchase, ideal for furniture assembly, cabinetry, and wood fastening applications.
