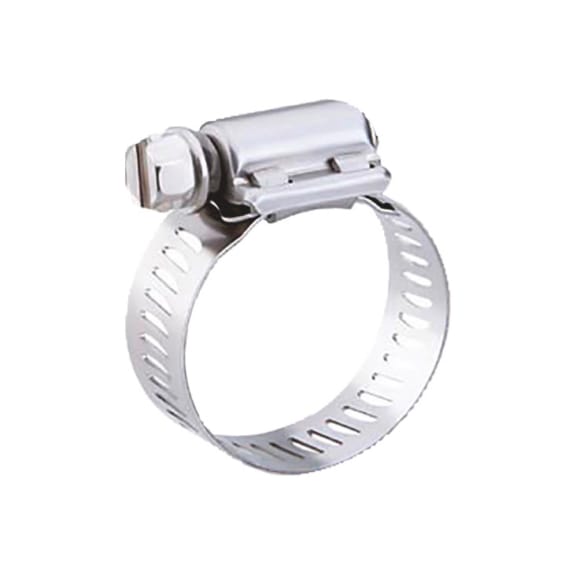

Worm Drive Hose Clamp | Stainless Steel Construction | 1/2 Inch Band Width | Enhanced Strength | by Wurth
The Worm Drive Hose Clamp is designed for automotive and industrial applications, featuring a durable stainless steel construction and a 1/2 inch band width. With a unique saddle interlock design for enhanced strength and a 5/16 inch hex headed steel screw for easy installation, this clamp ensures secure fastening and higher sealing pressure with lower applied torque. Ideal for general purpose hose and tubing fastening, it’s built to last and reduce the need for frequent replacements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material of clamp band: Stainless steel
- Material of screw: Steel
- Surface of the screw: Zinc plated
- Material of housing: Stainless steel
- Width of band: 1/2 inch (approx. 13 mm)
- Min./max. grip range: 17-32 mm
- Drive type: Slot/hexagon
- Width across flats (SW): 5/16 inch (approx. 8 mm)
- Dimensions (H x L x W): 10mm x 50mm x 13mm
- Weight: 0.1 kg
Key Features
- Stainless housing and saddle clinched at 4 points to eliminate housing lift and twist
- Saddle interlocks into band for enhanced strength
- 5/16 inch hex headed steel screw with blade driver slot for ease of installation
- Extra strength and smoother engagement with more threads per screw and increased torque strength
- Thicker, stronger screw shaft with shoulder to prevent jamming
- Stainless steel band with arcial slots for added strength and smoother worm-gear engagement
- Even distribution of sealing pressure with no excessive pressure points
- Higher sealing pressure with lower applied torque
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper torque and secure fitting.
Applications
- Automotive hose securing
- Industrial hose clamping
- General purpose hose and tubing fastening
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation) for electrical safety where applicable
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Zinc plated screw resists corrosion extending product life
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth worm-drive hose clamp is available for immediate purchase, ideal for automotive and industrial hose securing applications.
