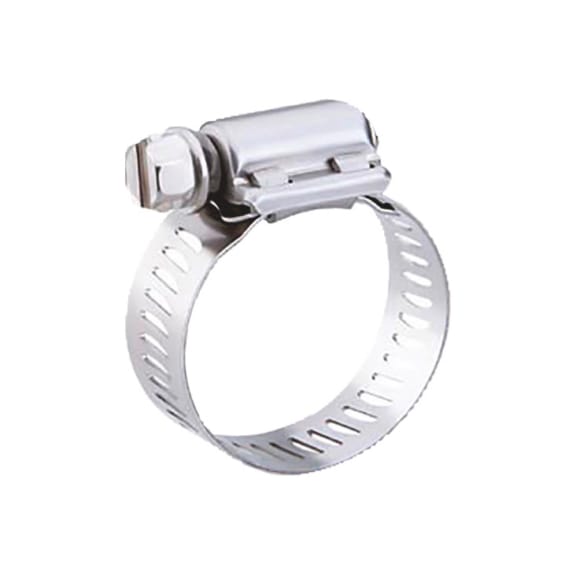

Worm Drive Hose Clamp | Stainless Steel Construction | 21-44 mm Grip Range | Hexagon Drive Type | by Wurth
The Worm Drive Hose Clamp is designed for automotive and industrial applications, featuring a durable stainless steel construction that ensures strength and stability. With a grip range of 21-44 mm and a hexagon drive type for easy installation, this clamp is perfect for securing hoses and tubing in various environments. Its corrosion resistance extends product life, making it an eco-friendly choice for your fastening needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Worm Drive Hose Clamp | Stainless Steel Construction | 21-44 mm Grip Range | Hexagon Drive Type | by Wurth
Brand: Wurth
SKU: 5492144
Alternatively Known As: Worm Drive Hose Clamp, Stainless Steel Hose Clamp, Industrial Hose Clamp, Automotive Hose Clamp
Technical Specifications
- Material of clamp band: Stainless steel
- Material of screw: Steel
- Surface of the screw: Zinc plated
- Material of housing: Stainless steel
- Width of band: 1/2 inch (13 mm)
- Min./max. grip range: 21-44 mm
- Drive type: Slot/hexagon
- Width across flats (SW): 5/16 inch (8 mm)
- Dimensions (H x L x W): 10mm x 50mm x 13mm
- Weight: 0.1 kg
Key Features
- Housing design provides strength and stability with stainless housing and saddle clinched at 4 points to eliminate housing lift and twist.
- Saddle interlocks into band for enhanced strength.
- Hexagon head steel screw with 5/16 inch hex head and blade driver slot for ease of installation.
- Extra strength and smoother engagement with more threads per screw and increased torque strength.
- Thicker, stronger shaft with shoulder to prevent jamming into housing.
- Stainless steel band with arcial slots for added strength and smoother worm-gear engagement.
- High standard circumferential pressures ensuring even distribution of sealing pressure with no excessive pressure points.
- Higher sealing pressure achieved with lower applied torque.
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper torque and secure fitting.
Applications
- Automotive hose securing
- Industrial hose clamping
- General purpose hose and tubing fastening
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements, minimizing waste.
- Corrosion resistance extends product life, reducing environmental impact.
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth worm-drive hose clamp is available for immediate purchase, ideal for automotive and industrial hose securing applications.
