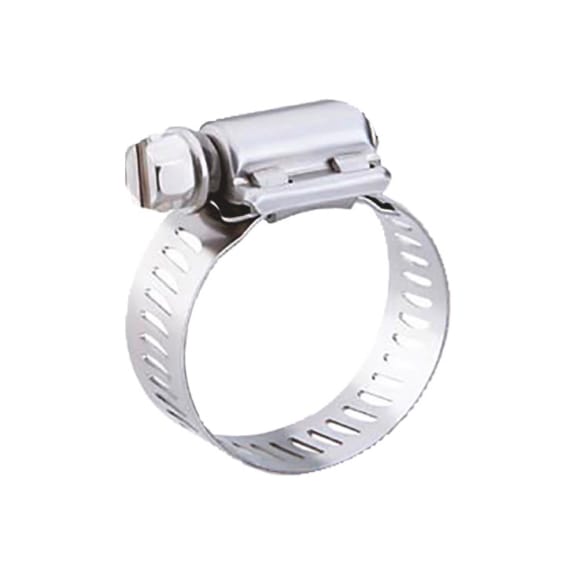

Worm Drive Hose Clamp | Stainless Steel Construction | 27-51 mm Grip Range | Hexagon Head Screw | by Wurth
The Worm Drive Hose Clamp is designed for automotive and industrial applications, featuring a durable stainless steel construction that ensures strength and stability. With a grip range of 27-51 mm and a hexagon head screw for easy installation, this clamp provides high sealing pressure with lower applied torque, making it ideal for securing hoses in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Worm Drive Hose Clamp | Stainless Steel Construction | 27-51 mm Grip Range | Hexagon Head Screw | by Wurth
Brand: Wurth
SKU: 5492751
Alternatively Known As: Worm Drive Hose Clamp, Stainless Steel Hose Clamp, Industrial Hose Clamp, Automotive Hose Clamp
Technical Specifications
- Material of clamp band: Stainless steel
- Material of screw: Steel
- Surface of the screw: Zinc plated
- Material of housing: Stainless steel
- Width of band: 1/2 inch (13 mm)
- Min./max. grip range: 27-51 mm
- Drive type: Slot/hexagon
- Width across flats (SW): 5/16 inch (8 mm)
- Dimensions (H x L x W): 10mm x 60mm x 13mm
- Weight: 0.1 kg
Key Features
- Housing design provides strength and stability with stainless housing and saddle clinched at 4 points to eliminate housing lift and twist.
- Saddle interlocks into band for enhanced strength.
- Hexagon head steel screw with 5/16 inch hex head and blade driver slot for ease of installation.
- Extra strength and smoother engagement with more threads per screw and increased torque strength.
- Thicker, stronger shaft with shoulder to prevent jamming into housing.
- Exceeds SAE J 1508 specifications.
- Stainless steel band with arcial slots for added strength and smoother worm-gear engagement.
- High standard circumferential pressures ensuring even distribution of sealing pressure with no excessive pressure points.
- Higher sealing pressure with lower applied torque.
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper clamping and safety.
Applications
- Automotive hose securing
- Industrial hose clamping
- General fluid and air hose connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements, minimizing waste.
- Corrosion resistance extends product life, reducing environmental impact.
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth worm-drive hose clamp is available for immediate purchase, ideal for automotive and industrial hose securing applications.
