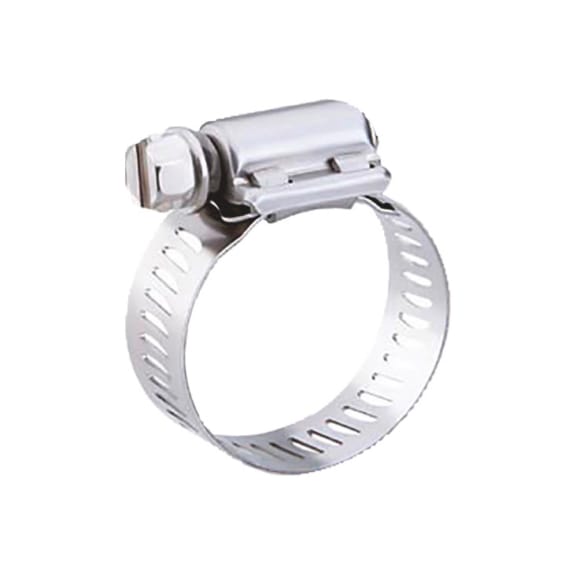

Worm Drive Hose Clamp | Stainless Steel Construction | 40-64 mm Grip Range | 1/2 Inch Band Width | by Wurth
The Worm Drive Hose Clamp is designed for automotive and industrial applications, featuring a durable stainless steel construction and a grip range of 40-64 mm. With a 1/2 inch band width and a strong hex headed screw, this clamp ensures secure fastening and ease of installation, making it ideal for hose securing in machinery and equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material of clamp band: Stainless steel
- Material of screw: Steel
- Surface of the screw: Zinc plated
- Material of housing: Stainless steel
- Width of band: 1/2 inch (13 mm)
- Min./max. grip range: 40-64 mm
- Drive type: Slot/hexagon
- Width across flats (SW): 5/16 inch (8 mm)
- Dimensions (H x L x W): 10mm x 60mm x 13mm
- Weight: 0.1 kg
Key Features
- Stainless housing and saddle clinched at 4 points to eliminate housing lift and twist
- Saddle interlocks into band for enhanced strength
- 5/16 inch hex headed steel screw with blade driver slot for ease of installation
- Extra strong screw with more threads and increased torque strength
- Thicker, stronger screw shaft with shoulder to prevent jamming
- Stainless steel band with arcial slots for added strength and smoother worm-gear engagement
- Even distribution of sealing pressure with no excessive pressure points
- Higher sealing pressure with lower applied torque
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper torque and secure fitting.
Applications
- Automotive hose securing
- Industrial hose and coupling fastening
- General purpose hose clamping in machinery and equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Corrosion resistance extends product life, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Automotive and Industrial Worm-Drive Hose Clamp is available now for immediate purchase. Ideal for automotive and industrial hose securing applications.
