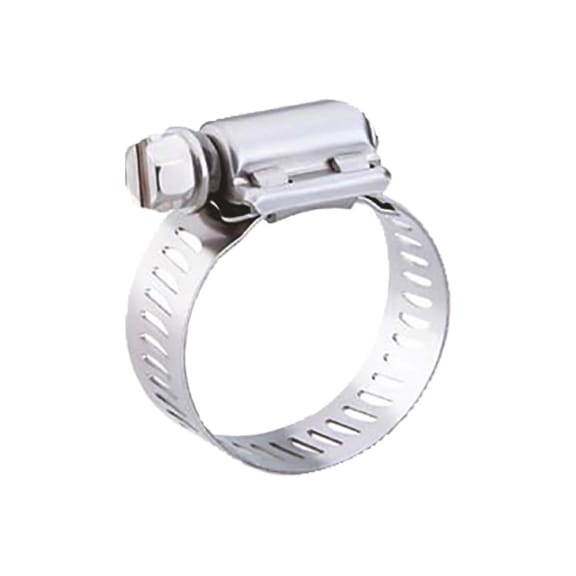

Worm Drive Hose Clamp | Stainless Steel Construction | Enhanced Strength & Stability | by Wurth
The Worm Drive Hose Clamp is designed for automotive and industrial hose securing, featuring durable stainless steel construction and a zinc-plated screw for corrosion resistance. With a unique housing design that provides strength and stability, this clamp ensures even distribution of sealing pressure, making it ideal for various applications. Professional installation is recommended for optimal performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material of clamp band: Stainless steel
- Material of screw: Steel
- Surface of the screw: Zinc plated
- Material of housing: Stainless steel
- Width of band: 1/2 inch (approx. 13 mm)
- Min./max. grip range: 11-20 mm
- Drive type: Slot/hexagon
- Width across flats (SW): 5/16 inch (approx. 8 mm)
- Dimensions (H x L x W): 10mm x 50mm x 13mm
- Weight: 0.1 kg
Key Features
- Housing design provides strength and stability with stainless housing and saddle clinched at 4 points to eliminate housing lift and twist.
- Saddle interlocks into band for enhanced strength.
- Hexagon head steel screw with blade driver slot for ease of installation.
- Extra strength and smoother engagement with more threads per screw and increased torque strength.
- Thicker, stronger shaft with shoulder to prevent jamming into housing.
- Exceeds SAE J 1508 specifications.
- Stainless steel band with arcial slots for added strength and smoother worm-gear engagement.
- High standard circumferential pressures ensure even distribution of sealing pressure with no excessive pressure points.
- Higher sealing pressure with lower applied torque.
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper torque and secure fitting.
Applications
- Automotive hose securing
- Industrial hose connections
- General purpose hose clamping
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements, minimizing waste.
- Zinc plated screw resists corrosion, extending product life.
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth worm-drive hose clamp is available for immediate purchase, ideal for automotive and industrial hose securing applications.
